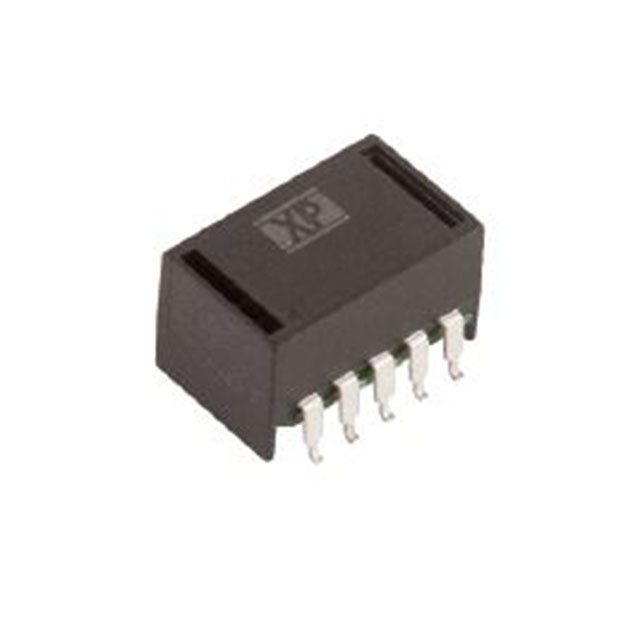

STR05S1V8

Obsolete

XP Power

DC-DC CONVERTER, 1.8V, 0.5A

Search across all available documentation for this part.

Obsolete

XP Power

DC-DC CONVERTER, 1.8V, 0.5A

Technical Specifications

Parameters and characteristics for this part

Specification	STR05S1V8

Applications	ITE (Commercial)
Control Features	Active High, Enable
Current - Output (Max) [Max]	500 mA
Efficiency	71 %
Features	Remote On/Off, SCP
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Package / Case	10-SMD Module
Size / Dimension [x]	15.2 mm
Size / Dimension [x]	0.6 in
Size / Dimension [y]	9.7 mm
Size / Dimension [y]	0.38 in
Size / Dimension [z]	0.35 "
Size / Dimension [z]	8.8 mm
Type	Linear Regulator Replacement
Voltage - Input (Max) [Max]	32 V
Voltage - Input (Min) [Min]	4.75 V
Voltage - Output 1	1.8 V

DC-DC CONVERTER, 1.8V, 0.5A

Part	Voltage - Output 1	Features	Number of Outputs	Voltage - Input (Min) [Min]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Package / Case	Type	Current - Output (Max) [Max]	Applications	Mounting Type	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Control Features	Efficiency
XP Power STR05S1V8	1.8 V	Remote On/Off, SCP	1	4.75 V	15.2 mm	0.35 "	0.6 in	9.7 mm	0.38 in	8.8 mm	10-SMD Module	Linear Regulator Replacement	500 mA	ITE (Commercial)	Surface Mount	32 V	100 °C	-40 °C	Active High, Enable	71 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Linear Regulator Replacement DC DC Converter 1 Output 1.8V 500mA 4.75V - 32V Input
