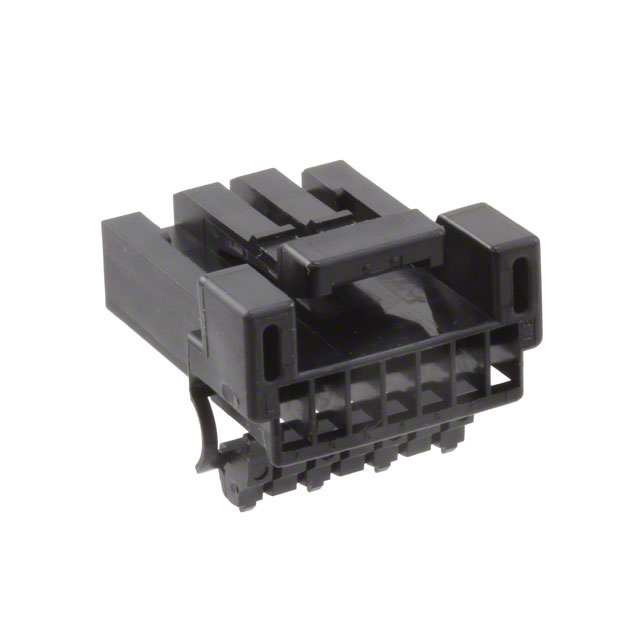

IL-AG5-7S-S3C1-B

Active

JAE Electronics

CONN RCPT HSG 7POS 2.50MM

Search across all available documentation for this part.

Active

JAE Electronics

CONN RCPT HSG 7POS 2.50MM

Technical Specifications

Parameters and characteristics for this part

Specification	IL-AG5-7S-S3C1-B

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	7
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.098 in
Pitch [x]	2.5 mm

Part	Mounting Type	Pitch [x]	Pitch [x]	Insulation Material	Color	Number of Rows	Note	Number of Positions	Contact Type	Connector Type	Contact Termination	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Post	Applications	Current Rating (Amps)	Insulation Color	Contact Length - Mating	Contact Length - Mating	Insulation Height	Insulation Height	Style	Contact Shape	Overall Contact Length	Overall Contact Length	Contact Material	Contact Length - Post	Contact Length - Post	Shrouding	Number of Positions Loaded	Termination	Pitch - Mating	Pitch - Mating	Fastening Type	Mated Stacking Heights
JAE Electronics IL-AG5-7S-S3C1-B	Free Hanging (In-Line)	0.098 in	2.5 mm	Polybutylene Terephthalate (PBT)	Black	1	Contacts Not Included	7	Female Socket	Receptacle	Crimp	85 °C	-40 °C
JAE Electronics IL-AG5-7P-S3T2	Through Hole			Polybutylene Terephthalate (PBT)		1		7	Male Pin	Header		85 °C	-40 °C	Tin	Automotive	3 A	Green	8.4 mm	0.331 in	18.2 mm	0.717 in	Board to Cable/Wire	Square	15.09 mm	0.594 in	Brass	3.5 mm	0.138 in	Shrouded - 4 Wall	All	Solder	2.5 mm	0.098 in	Push-Pull	28.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

7 Rectangular Connectors - Housings Receptacle Black 0.098" (2.50mm)
