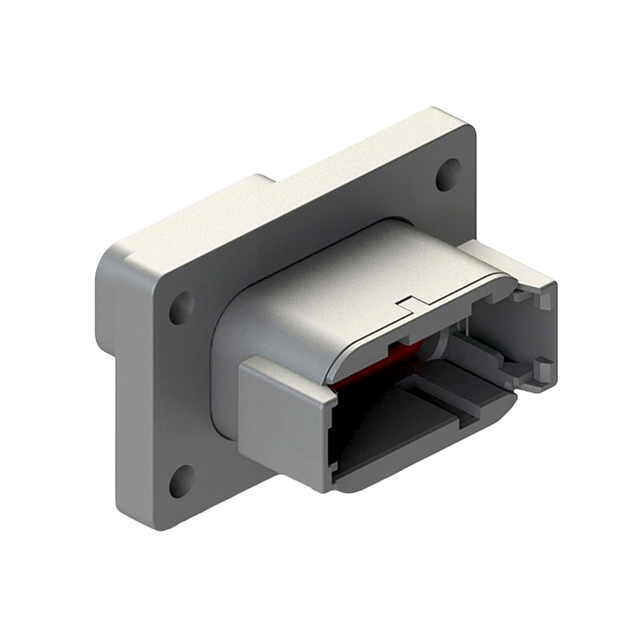

ATM04-12PA-PM01
ActiveAmphenol Sine Systems Corp
CONN RCPT HSG 12POS
Deep-Dive with AI
Search across all available documentation for this part.
ATM04-12PA-PM01
ActiveAmphenol Sine Systems Corp
CONN RCPT HSG 12POS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ATM04-12PA-PM01 |
|---|---|
| Color | Gray |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Male Pin |
| Fastening Type | Latch Holder |
| Features | Sealed |
| Insulation Material | Thermoplastic |
| Note | Contacts Not Included |
| Number of Positions | 12 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
ATM04 Series
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Termination | Insulation Material | Color | Connector Type | Note | Features | Mounting Type | Number of Rows | Contact Type | Number of Positions | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Sine Systems Corp | -55 °C | 125 °C | Crimp | Thermoplastic | Brown | Receptacle | Contacts Not Included | Sealed | Free Hanging (In-Line) | 2 | Male Pin | 8 | Latch Holder |
Amphenol Sine Systems Corp | -55 °C | 125 °C | Crimp | Thermoplastic | Brown | Receptacle | Cap (Cover) IP67 Sealed Strain Relief | Free Hanging (In-Line) | 3 | Male Pin | 6 | Latch Holder | |
Amphenol Sine Systems Corp | -55 °C | 125 °C | Crimp | Thermoplastic | Green | Receptacle | Cap (Cover) IP67 Sealed Strain Relief | Free Hanging (In-Line) | 2 | Male Pin | 4 | Latch Holder | |
Amphenol Sine Systems Corp | -55 °C | 125 °C | Crimp | Thermoplastic | Black | Receptacle | Cap (Cover) IP67 Sealed Strain Relief | Free Hanging (In-Line) | 2 | Male Pin | 4 | Latch Holder | |
Amphenol Sine Systems Corp | -55 °C | 125 °C | Crimp | Thermoplastic | Blue | Receptacle | Cap (Cover) IP67 Sealed Strain Relief | Free Hanging (In-Line) | 3 | Male Pin | 6 | Latch Holder | |
Amphenol Sine Systems Corp | -55 °C | 125 °C | Crimp | Thermoplastic | Blue | Receptacle | Cap (Cover) IP67 Sealed Strain Relief | Free Hanging (In-Line) | 1 | Male Pin | 2 | Latch Holder | |
Amphenol Sine Systems Corp | -55 °C | 125 °C | Crimp | Thermoplastic | Green | Receptacle | Contacts Not Included | Cap (Cover) Sealed Strain Relief | Free Hanging (In-Line) | 2 | Male Pin | 12 | |
Amphenol Sine Systems Corp | -55 °C | 125 °C | Crimp | Thermoplastic | White | Receptacle | Cap (Cover) IP67 Sealed Strain Relief | Free Hanging (In-Line) | 3 | Male Pin | 6 | Latch Holder | |
Amphenol Sine Systems Corp | -55 °C | 125 °C | Crimp | Thermoplastic | Gray | Receptacle | Contacts Not Included | Sealed | 2 | Male Pin | 12 | Latch Holder | |
Amphenol Sine Systems Corp | -55 °C | 125 °C | Crimp | Thermoplastic | Green | Receptacle | Cap (Cover) IP67 Sealed Strain Relief | Free Hanging (In-Line) | 1 | Male Pin | 2 | Latch Holder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.39 | |
| 10 | $ 7.55 | |||
| 25 | $ 7.11 | |||
| 50 | $ 6.93 | |||
| 100 | $ 6.75 | |||
| 400 | $ 6.02 | |||
| 800 | $ 5.29 | |||
| 1200 | $ 5.00 | |||
Description
General part information
ATM04 Series
12 Rectangular Connectors - Housings Receptacle Gray
