XH3A-4041-2A
ActiveOmron Electronics Inc-EMC Div

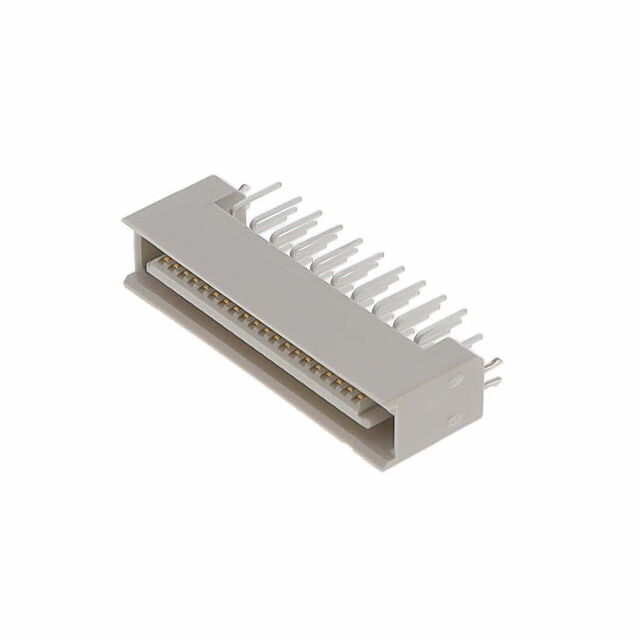

CONN PLUG 40POS VERT GOLD
Deep-Dive with AI
Search across all available documentation for this part.
XH3A-4041-2A
ActiveOmron Electronics Inc-EMC Div
CONN PLUG 40POS VERT GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | XH3A-4041-2A | XH3A-4041 Series |
|---|---|---|
| Contact Finish | Gold | Gold |
| Height Above Board | 0.421 in | 0.421 - 0.5 in |
| Height Above Board | 10.7 mm | 10.7 - 12.7 mm |
| Mated Stacking Heights | 18 mm, 15 mm, 17 mm, 14 mm | 14 - 20 mm |
| Mounting Type | Through Hole | Through Hole |
| Number of Positions | 40 | 40 |
| Number of Rows | 2 | 2 |
| Pitch [x] | 0.05 in | 0.05 in |
| Pitch [x] | 1.27 mm | 1.27 mm |
XH3A-4041 Series
CONN PLUG 40POS VERT GOLD
| Part | Number of Rows | Mounting Type | Mated Stacking Heights | Contact Finish | Height Above Board | Height Above Board | Pitch [x] | Pitch [x] | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|
Omron Electronics Inc-EMC Div XH3A-4041-4A | 2 | Through Hole | 16 mm, 17 mm, 19 mm, 20 mm | Gold | 12.7 mm | 0.5 in | 0.05 in | 1.27 mm | 40 |
Omron Electronics Inc-EMC Div XH3A-4041-2A | 2 | Through Hole | 14 mm, 15 mm, 17 mm, 18 mm | Gold | 10.7 mm | 0.421 in | 0.05 in | 1.27 mm | 40 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.08 | |
| 10 | $ 3.46 | |||
| 25 | $ 3.25 | |||
| 70 | $ 2.46 | |||
| 140 | $ 2.33 | |||
| 280 | $ 2.20 | |||
Description
General part information
XH3A-4041 Series
40 Position Connector Plug, Center Strip Contacts Through Hole Gold
