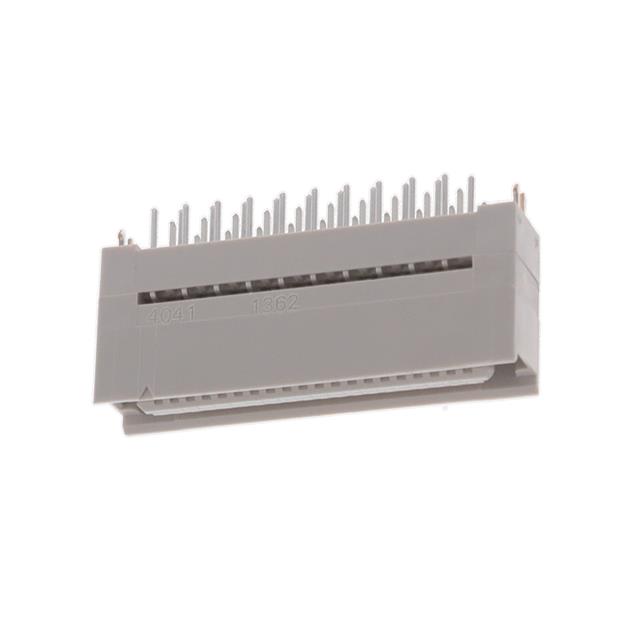

XH3A-4041-4A

Active

Omron Electronics Inc-EMC Div

CONN PLUG 40POS VERT GOLD

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

CONN PLUG 40POS VERT GOLD

Technical Specifications

Parameters and characteristics commom to parts in this series

CONN PLUG 40POS VERT GOLD

Part	Number of Rows	Mounting Type	Mated Stacking Heights	Contact Finish	Height Above Board	Height Above Board	Pitch [x]	Pitch [x]	Number of Positions
Omron Electronics Inc-EMC Div XH3A-4041-4A	2	Through Hole	16 mm, 17 mm, 19 mm, 20 mm	Gold	12.7 mm	0.5 in	0.05 in	1.27 mm	40
Omron Electronics Inc-EMC Div XH3A-4041-2A	2	Through Hole	14 mm, 15 mm, 17 mm, 18 mm	Gold	10.7 mm	0.421 in	0.05 in	1.27 mm	40

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

40 Position Connector Plug, Center Strip Contacts Through Hole Gold
