GSP1.8101.1

Active

SCHURTER Inc.

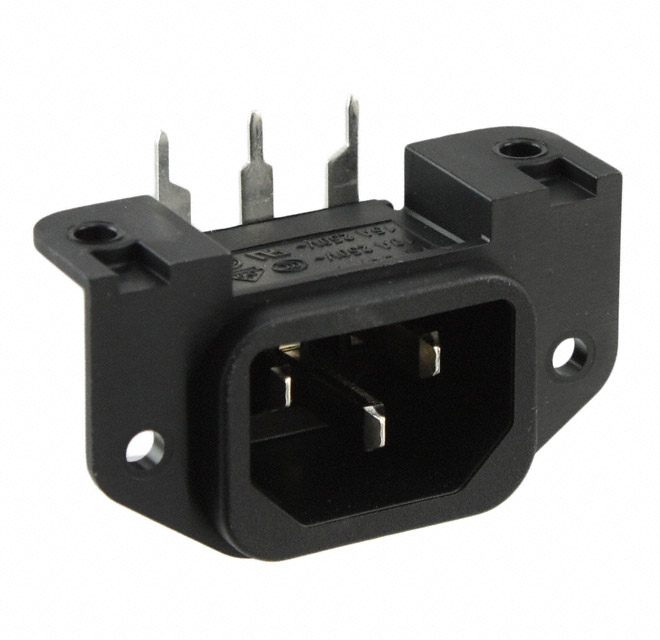

GSP1, MOUNTING: SCREW, APPLIANCE INLET, IEC C14, FOR PCB MOUNTING, IP 40, HOLES FOR SCREWS M3, QUICK CONNECT TERMINALS 4.8 X 0.8

Search across all available documentation for this part.

Active

SCHURTER Inc.

GSP1, MOUNTING: SCREW, APPLIANCE INLET, IEC C14, FOR PCB MOUNTING, IP 40, HOLES FOR SCREWS M3, QUICK CONNECT TERMINALS 4.8 X 0.8

Technical Specifications

Parameters and characteristics for this part

Specification	GSP1.8101.1

Accomodates a Fuse	False
Approval Agency	ENEC, CCC, cURus
Connector Style	IEC 320-C14
Connector Type	Male Blades, Receptacle
Current Rating - Appliance Inlet	10 A
Filter Type	Unfiltered - Commercial
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Flange, Through Hole, Right Angle
Panel Cutout Dimensions [x]	30.3 mm
Panel Cutout Dimensions [y]	22.5 mm
Panel Thickness	3 mm
Panel Thickness	0.118 in
Termination	Solder
Voltage Rating - Appliance Inlet	250 VAC

GSP1, MOUNTING: SCREW, APPLIANCE INLET, IEC C14, FOR PCB MOUNTING, IP 40, HOLES FOR SCREWS M3, QUICK CONNECT TERMINALS 4.8 X 0.8

Part	Voltage Rating - Appliance Inlet	Connector Type	Approval Agency	Material Flammability Rating	Filter Type	Current Rating - Appliance Inlet	Termination	Ingress Protection	Connector Style	Mounting Type	Panel Thickness	Panel Thickness	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Accomodates a Fuse
SCHURTER Inc. GSP1.8101.1	250 VAC	Male Blades, Receptacle	CCC, cURus, ENEC	UL94 V-0	Unfiltered - Commercial	10 A	Solder	IP40	IEC 320-C14	Panel Mount, Flange, Through Hole, Right Angle	3 mm	0.118 in	30.3 mm	22.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Flange; Through Hole, Right Angle
