L6R48-360

Active

Tri-Mag, LLC

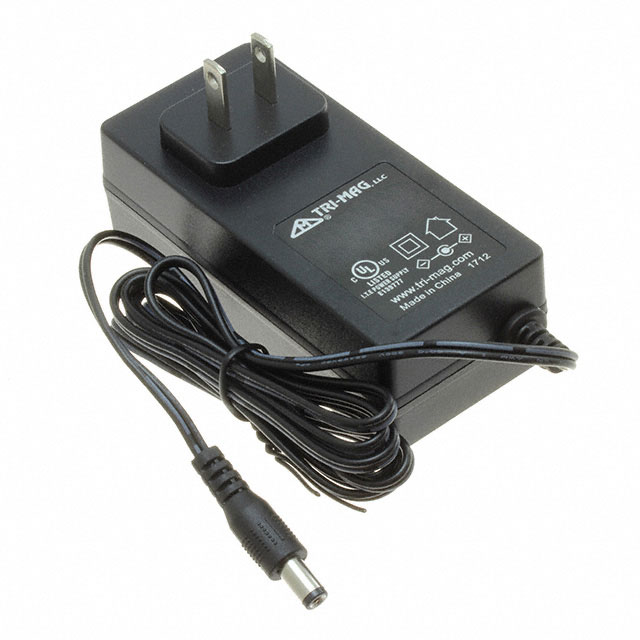

AC/DC WALL MOUNT ADAPTER 36V 48W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

L6R48-360

Active

Tri-Mag, LLC

AC/DC WALL MOUNT ADAPTER 36V 48W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	L6R48-360	L6R48 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	cUL, FCC, UL	cUL, FCC, UL
Cord Length	1.5 m	1 - 1.5 m
Cord Length	59 in	39.4 - 59 "
Current - Output (Max) [Max]	1.33 A	1.33 - 5 A
Efficiency	Level VI	Level VI
Form	Wall Mount (Class II)	Desktop (Class I), Wall Mount (Class II), Desktop (Class II)
Input Connector	NEMA 1-15P	IEC 320-C6, IEC 320-C14, NEMA 1-15P, IEC 320-C8
Input Type	Fixed Blade	Cord, Fixed Blade
No Load Power Consumption	100 mW	100 mW
Operating Temperature [Max]	40 °C	40 °C
Operating Temperature [Min]	0 °C	0 °C
Output Connector	Barrel Plug	Barrel Plug
Output Connector [diameter]	2.1 mm, 5.5 mm	2.1 - 5.5 mm
Output Connector [x]	9.5 mm	9.5 mm
Power (Watts)	48 W	45 - 48 W
Region Utilized	North America	International, North America
Size / Dimension [x]	3.82 in	3.82 - 4.72 in
Size / Dimension [x]	97 mm	97 - 120 mm
Size / Dimension [y]	1.77 "	1.77 - 2.01 in
Size / Dimension [y]	45 mm	45 - 51 mm
Size / Dimension [z]	1.52 in	1.34 - 1.52 in
Size / Dimension [z]	38.6 mm	34 - 38.6 mm
Standard Number	60950-1	60950-1
Voltage - Input [Max]	264 VAC	264 VAC
Voltage - Input [Min]	90 VAC	90 VAC
Voltage - Output	36 V	9 - 36 VDC
Weight	-	0.617 lb
Weight	-	280 g

L6R48 Series

AC/DC DESKTOP ADAPTER 30V 48W

Part	Operating Temperature [Max]	Input Connector	Form	Output Connector [diameter]	Output Connector [x]	Output Connector	Efficiency	Approval Agency	Cord Length	Cord Length	Voltage - Output	Voltage - Input [Min]	Voltage - Input [Max]	Current - Output (Max) [Max]	Region Utilized	Standard Number	No Load Power Consumption	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Weight	Weight	Input Type	Power (Watts)	Applications
Tri-Mag, LLC L6R48D-300-C6	40 °C	IEC 320-C6	Desktop (Class I)	2.1 mm, 5.5 mm	9.5 mm	Barrel Plug	Level VI	cUL, FCC, UL	1 m	39.4 "	30 VDC	90 VAC	264 VAC	1.6 A	International	60950-1	100 mW	51 mm	34 mm	2.01 in	1.34 in	120 mm	4.72 in	0.617 lb	280 g	Cord	48 W	ITE (Commercial)
Tri-Mag, LLC L6R48D-240-200-C6	40 °C	IEC 320-C6	Desktop (Class I)	2.1 mm, 5.5 mm	9.5 mm	Barrel Plug	Level VI	cUL, FCC, UL	1 m	39.4 "	24 V	90 VAC	264 VAC	2 A	International	60950-1	100 mW	51 mm	34 mm	2.01 in	1.34 in	120 mm	4.72 in	0.617 lb	280 g	Cord	48 W	ITE (Commercial)
Tri-Mag, LLC L6R48D-180-C14	40 °C	IEC 320-C14	Desktop (Class I)	2.1 mm, 5.5 mm	9.5 mm	Barrel Plug	Level VI	cUL, FCC, UL	1 m	39.4 "	18 V	90 VAC	264 VAC	2.67 A	International	60950-1	100 mW	51 mm	34 mm	2.01 in	1.34 in	120 mm	4.72 in	0.617 lb	280 g	Cord	48 W	ITE (Commercial)
Tri-Mag, LLC L6R48-360	40 °C	NEMA 1-15P	Wall Mount (Class II)	2.1 mm, 5.5 mm	9.5 mm	Barrel Plug	Level VI	cUL, FCC, UL	1.5 m	59 in	36 V	90 VAC	264 VAC	1.33 A	North America	60950-1	100 mW	45 mm	38.6 mm	1.77 "	1.52 in	97 mm	3.82 in			Fixed Blade	48 W	ITE (Commercial)
Tri-Mag, LLC L6R48D-300-C14	40 °C	IEC 320-C14	Desktop (Class I)	2.1 mm, 5.5 mm	9.5 mm	Barrel Plug	Level VI	cUL, FCC, UL	1 m	39.4 "	30 VDC	90 VAC	264 VAC	1.6 A	International	60950-1	100 mW	51 mm	34 mm	2.01 in	1.34 in	120 mm	4.72 in	0.617 lb	280 g	Cord	48 W	ITE (Commercial)
Tri-Mag, LLC L6R48D-180-C8	40 °C	IEC 320-C8	Desktop (Class II)	2.1 mm, 5.5 mm	9.5 mm	Barrel Plug	Level VI	cUL, FCC, UL	1 m	39.4 "	18 V	90 VAC	264 VAC	2.67 A	International	60950-1	100 mW	51 mm	34 mm	2.01 in	1.34 in	120 mm	4.72 in	0.617 lb	280 g	Cord	48 W	ITE (Commercial)
Tri-Mag, LLC L6R48D-240-C8	40 °C	IEC 320-C8	Desktop (Class II)	2.1 mm, 5.5 mm	9.5 mm	Barrel Plug	Level VI	cUL, FCC, UL	1 m	39.4 "	24 V	90 VAC	264 VAC	2 A	International	60950-1	100 mW	51 mm	34 mm	2.01 in	1.34 in	120 mm	4.72 in	0.617 lb	280 g	Cord	48 W	ITE (Commercial)
Tri-Mag, LLC L6R48D-090-C6	40 °C	IEC 320-C6	Desktop (Class I)	2.1 mm, 5.5 mm	9.5 mm	Barrel Plug	Level VI	cUL, FCC, UL	1 m	39.4 "	9 V	90 VAC	264 VAC	5 A	International	60950-1	100 mW	51 mm	34 mm	2.01 in	1.34 in	120 mm	4.72 in	0.617 lb	280 g	Cord	45 W	ITE (Commercial)
Tri-Mag, LLC L6R48D-090-500-C14	40 °C	IEC 320-C14	Desktop (Class I)	2.1 mm, 5.5 mm	9.5 mm	Barrel Plug	Level VI	cUL, FCC, UL	1 m	39.4 "	9 V	90 VAC	264 VAC	5 A	International	60950-1	100 mW	51 mm	34 mm	2.01 in	1.34 in	120 mm	4.72 in	0.617 lb	280 g	Cord	45 W	ITE (Commercial)
Tri-Mag, LLC L6R48D-300-C8	40 °C	IEC 320-C8	Desktop (Class II)	2.1 mm, 5.5 mm	9.5 mm	Barrel Plug	Level VI	cUL, FCC, UL	1 m	39.4 "	30 VDC	90 VAC	264 VAC	1.6 A	International	60950-1	100 mW	51 mm	34 mm	2.01 in	1.34 in	120 mm	4.72 in	0.617 lb	280 g	Cord	48 W	ITE (Commercial)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 13.08

Description

General part information

L6R48 Series

36V 48 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
