Q-0304F0003003M
ActiveAmphenol Custom Cable

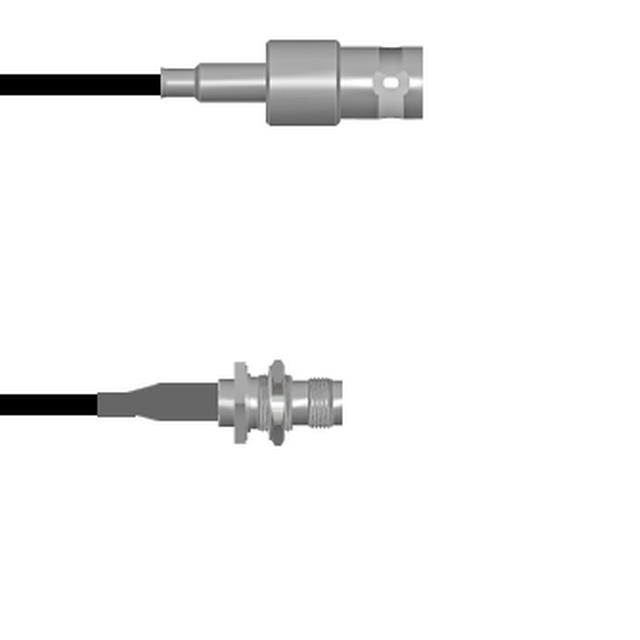

CBL ASSY BNC-TNC JACK-JACK 9.8'
Deep-Dive with AI
Search across all available documentation for this part.
Q-0304F0003003M
ActiveAmphenol Custom Cable
CBL ASSY BNC-TNC JACK-JACK 9.8'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q-0304F0003003M |
|---|---|
| 1st Connector | BNC Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | TNC Jack |
| 2nd Connector Mounting Feature | Bulkhead - Front Side Nut |
| 2nd Connector Mounting Type | Panel Mount |
| 2nd Contact Gender | Female |
| Cable Type | RG-174 |
| Color | Black |
| Features | Shielded |
| Frequency - Max [Max] | 4 GHz |
| Length | 3 m |
| Length | 118.1 in |
| Length | 9.8 ' |
| Overall Impedance | 50 Ohms |
| Style | BNC to TNC |
Q-0304F0 Series
| Part | Length | Length | 2nd Contact Gender | Features | Color | Overall Impedance | Style | Frequency - Max [Max] | 1st Connector Mounting Type | Cable Type | 1st Connector | 1st Contact Gender | 2nd Connector | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Custom Cable | 91.44 cm | 36 in | Female | Shielded | Copper | 50 Ohms | BNC to TNC | 4 GHz | Free Hanging (In-Line) | RG-316 | BNC Jack | Female | TNC Jack | Panel Mount | Bulkhead - Front Side Nut | |||
Amphenol Custom Cable | 152.4 mm | 6 in | Female | Shielded | Black | 50 Ohms | BNC to TNC | 4 GHz | Free Hanging (In-Line) | RG-174 | BNC Jack | Female | TNC Jack | Panel Mount | Bulkhead - Front Side Nut | |||
Amphenol Custom Cable | 609.6 mm | 24 " | Female | Shielded | Black | 50 Ohms | BNC to TNC | 4 GHz | Free Hanging (In-Line) | RG-174 | BNC Jack | Female | TNC Jack | Panel Mount | Bulkhead - Front Side Nut | |||
Amphenol Custom Cable | 76.2 mm | 3 in | Female | Shielded | Black | 50 Ohms | BNC to TNC | 4 GHz | Free Hanging (In-Line) | RG-174 | BNC Jack | Female | TNC Jack | Panel Mount | Bulkhead - Front Side Nut | |||
Amphenol Custom Cable | 3 m | 118.1 in | Female | Shielded | Black | 50 Ohms | BNC to TNC | 4 GHz | Free Hanging (In-Line) | RG-174 | BNC Jack | Female | TNC Jack | Panel Mount | Bulkhead - Front Side Nut | 9.8 ' | ||
Amphenol Custom Cable | 50 cm | 19.69 " | Female | Shielded | Copper | 50 Ohms | BNC to TNC | 4 GHz | Free Hanging (In-Line) | RG-316 | BNC Jack | Female | TNC Jack | Panel Mount | Bulkhead - Front Side Nut | |||
Amphenol Custom Cable | 1.5 m | 59.1 in | Female | Shielded | Black | 50 Ohms | BNC to TNC | 4 GHz | Free Hanging (In-Line) | RG-174 | BNC Jack | Female | TNC Jack | Panel Mount | Bulkhead - Front Side Nut | 4.9 ft | ||
Amphenol Custom Cable | Female | Shielded | Black | 50 Ohms | BNC to TNC | 4 GHz | Free Hanging (In-Line) | RG-174 | BNC Jack | Female | TNC Jack | Panel Mount | Bulkhead - Front Side Nut | 9.843 " | 250 mm | |||
Amphenol Custom Cable | 2.7 m | 108 in | Female | Shielded | Black | 50 Ohms | BNC to TNC | 4 GHz | Free Hanging (In-Line) | RG-174 | BNC Jack | Female | TNC Jack | Panel Mount | Bulkhead - Front Side Nut | 9 ft | ||
Amphenol Custom Cable | 1.5 m | 59.1 in | Female | Shielded | Copper | 50 Ohms | BNC to TNC | 4 GHz | Free Hanging (In-Line) | RG-316 | BNC Jack | Female | TNC Jack | Panel Mount | Bulkhead - Front Side Nut | 4.9 ft |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 52.29 | |
| 25 | $ 48.69 | |||
| 50 | $ 45.09 | |||
| 100 | $ 42.01 | |||
| 250 | $ 39.44 | |||
Description
General part information
Q-0304F0 Series
Cable Assembly Coaxial BNC to TNC RG-174 118.1" (3.0m) 9.8'
Documents
Technical documentation and resources
No documents available
