TTMS-19.0-9

Unknown

TE Connectivity Raychem Cable Protection

LABEL HEAT SHRINKABLE WHT 1=1M

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet TMS-SCE, TTMS(-MP) TMS-SCE-2X,TTMS-2X Spec Sheet

TTMS-19.0-9

Unknown

TE Connectivity Raychem Cable Protection

LABEL HEAT SHRINKABLE WHT 1=1M

Deep-Dive with AI

DocumentsDatasheet TMS-SCE, TTMS(-MP) TMS-SCE-2X,TTMS-2X Spec Sheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TTMS-19.0-9

Color	White
For Use With/Related Products	T2000CT or T6112DS Thermal Transfer Printers
Label Size	0.275 in, 0.64 in
Label Size	0.75 in
Label Type	Heat Shrinkable
Material	Polyolefin (PO), Flame Retardant, Irradiated
Operating Temperature [Max]	135 °C
Operating Temperature [Min]	-55 °C
Shelf Life	144 Months
Shelf Life Start	Date of Manufacture

TTMS Series

Part	Label Size [Max]	Label Size	Label Size [Min]	Shelf Life	Shelf Life Start	Label Type	Operating Temperature [Max]	Operating Temperature [Min]	Color	For Use With/Related Products	Material	Label Size	Label Size [Min]	Label Size [Max]	Length	Length	Label Size [custom]	Label Size [custom]	Label Size [custom]	Label Size [custom]	Label Size [custom]
TE Connectivity Raychem Cable Protection TTMS-2.4-8	0.075 in	0.093 in	0.032 in	144 Months	Date of Manufacture	Heat Shrinkable	135 °C	-55 °C	Gray	T2000CT or T6112DS Thermal Transfer Printers	Polyolefin (PO) Flame Retardant Irradiated
TE Connectivity Raychem Cable Protection TTMS-9.5-3	0.32 in	0.375 in	0.137 in	144 Months	Date of Manufacture	Heat Shrinkable	135 °C	-55 °C		T2000CT or T6112DS Thermal Transfer Printers	Polyolefin (PO) Flame Retardant Irradiated	9.53 mm	3.47 mm	8.12 mm
TE Connectivity Raychem Cable Protection TTMS-2.4-4	0.075 in	0.093 in	0.032 in	144 Months	Date of Manufacture	Heat Shrinkable	135 °C	-55 °C	Yellow	T2000CT or T6112DS Thermal Transfer Printers	Polyolefin (PO) Flame Retardant Irradiated
TE Connectivity Raychem Cable Protection TTMS-25.4-5				144 Months	Date of Manufacture	Heat Shrinkable	135 °C	-55 °C	Green	T2000CT or T6112DS Thermal Transfer Printers	Polyolefin (PO) Flame Retardant Irradiated
TE Connectivity Raychem Cable Protection TTMS-19.0-9		0.75 in		144 Months	Date of Manufacture	Heat Shrinkable	135 °C	-55 °C	White	T2000CT or T6112DS Thermal Transfer Printers	Polyolefin (PO) Flame Retardant Irradiated	0.275 in 0.64 in
TE Connectivity Raychem Cable Protection TTMS-2.4-6	0.075 in	0.093 in	0.032 in	144 Months	Date of Manufacture	Heat Shrinkable	135 °C	-55 °C	Blue	T2000CT or T6112DS Thermal Transfer Printers	Polyolefin (PO) Flame Retardant Irradiated
TE Connectivity Raychem Cable Protection TTMS-19.0-2		0.75 in		144 Months	Date of Manufacture	Heat Shrinkable	135 °C	-55 °C	Red	T2000CT or T6112DS Thermal Transfer Printers	Polyolefin (PO) Flame Retardant Irradiated	0.275 in 0.64 in
TE Connectivity Raychem Cable Protection TTMS-6.4-9	0.215 in	0.25 in	0.091 in	144 Months	Date of Manufacture	Heat Shrinkable	135 °C	-55 °C	White	T2000CT or T6112DS Thermal Transfer Printers	Polyolefin (PO) Flame Retardant Irradiated				100 m	328.1 ft
TE Connectivity Raychem Cable Protection TTMS-12.7-5				144 Months	Date of Manufacture	Heat Shrinkable	135 °C	-55 °C	Green	T2000CT or T6112DS Thermal Transfer Printers	Polyolefin (PO) Flame Retardant Irradiated						4.64 mm	0.5 in	12.7 mm	0.183 in 0.425 in	10.79 mm
TE Connectivity Raychem Cable Protection TTMS-12.7-4				144 Months	Date of Manufacture	Heat Shrinkable	135 °C	-55 °C	Yellow	T2000CT or T6112DS Thermal Transfer Printers	Polyolefin (PO) Flame Retardant Irradiated						4.64 mm	0.5 in	12.7 mm	0.183 in 0.425 in	10.79 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

TTMS Series

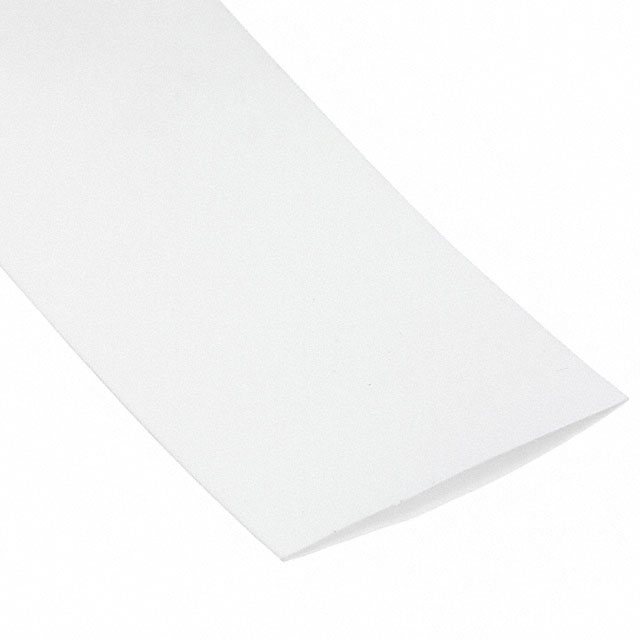

White Heat Shrinkable Label 0.75" (19.05mm); Cable O.D. 0.275" ~ 0.640" (6.99mm ~ 16.25mm)
