M3UUK-1640K
Active3M
IDC CABLE - MKS16K/MC16F/MKS16K
Deep-Dive with AI
Search across all available documentation for this part.
M3UUK-1640K
Active3M
IDC CABLE - MKS16K/MC16F/MKS16K
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | M3UUK-1640K | M3UUK Series |
|---|---|---|
| Cable Termination | IDC | IDC |
| Color | Multiple, Twisted Pair (Flat) | Ribbon, Multiple, Multiple, Twisted Pair (Flat) |
| Connector Type | Socket to Socket | Socket to Socket |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 30 Áin |
| Features | Polarizing Key, Strain Relief | Polarizing Key, Strain Relief |
| Length | - | 1.52 - 508 mm |
| Length | - | 6 " |
| Length | - | 0.5 ' |
| Length | - | 1.67 - 5 ft |
| Length [x] | 1.02 m | 1.02 - 914.4 mm |
| Length [x] | 3.34 ft | 1.5 - 3.34 ft |
| Number of Positions | 16 | 16 |
| Number of Positions | - | 10 - 60 |
| Number of Rows | 2 | 2 |
| Pitch - Cable | 0.05 " | 0.05 " |
| Pitch - Cable | 1.27 mm | 1.27 mm |
| Pitch - Connector | 0.1 in | 0.1 in |
| Pitch - Connector | 2.54 mm | 2.54 mm |
| Shielding | Unshielded | Unshielded |
M3UUK Series
IDC CABLE - MKS40K/MC40M/MKS40K
| Part | Connector Type | Number of Rows | Cable Termination | Pitch - Cable | Pitch - Cable | Shielding | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Length | Length | Length | Number of Positions | Color | Pitch - Connector | Pitch - Connector | Features | Length [x] | Length [x] | Length | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Socket to Socket | 2 | IDC | 0.05 " | 1.27 mm | Unshielded | 0.76 Ám | 30 Áin | Gold | 152.4 mm | 6 " | 0.5 ' | 40 | Multiple, Ribbon | 0.1 in | 2.54 mm | Polarizing Key, Strain Relief | |||||
Socket to Socket | 2 | IDC | 0.05 " | 1.27 mm | Unshielded | 0.76 Ám | 30 Áin | Gold | 14 | 0.1 in | 2.54 mm | Polarizing Key, Strain Relief | 457.2 mm | 1.5 ft | |||||||
Socket to Socket | 2 | IDC | 0.05 " | 1.27 mm | Unshielded | 0.76 Ám | 30 Áin | Gold | 508 mm | 40 | Multiple, Twisted Pair (Flat) | 0.1 in | 2.54 mm | Polarizing Key, Strain Relief | 1.67 ft | ||||||
Socket to Socket | 2 | IDC | 0.05 " | 1.27 mm | Unshielded | 0.76 Ám | 30 Áin | Gold | 508 mm | 10 | Multiple, Twisted Pair (Flat) | 0.1 in | 2.54 mm | Polarizing Key, Strain Relief | 1.67 ft | ||||||
Socket to Socket | 2 | IDC | 0.05 " | 1.27 mm | Unshielded | 0.76 Ám | 30 Áin | Gold | 60 | 0.1 in | 2.54 mm | Polarizing Key, Strain Relief | 457.2 mm | 1.5 ft | |||||||
Socket to Socket | 2 | IDC | 0.05 " | 1.27 mm | Unshielded | 0.76 Ám | 30 Áin | Gold | 152.4 mm | 6 " | 0.5 ' | 34 | 0.1 in | 2.54 mm | Polarizing Key, Strain Relief | ||||||
Socket to Socket | 2 | IDC | 0.05 " | 1.27 mm | Unshielded | 0.76 Ám | 30 Áin | Gold | 152.4 mm | 6 " | 0.5 ' | 30 | Multiple, Ribbon | 0.1 in | 2.54 mm | Polarizing Key, Strain Relief | |||||
Socket to Socket | 2 | IDC | 0.05 " | 1.27 mm | Unshielded | 0.76 Ám | 30 Áin | Gold | 20 | 0.1 in | 2.54 mm | Polarizing Key, Strain Relief | 457.2 mm | 1.5 ft | |||||||
Socket to Socket | 2 | IDC | 0.05 " | 1.27 mm | Unshielded | 0.76 Ám | 30 Áin | Gold | 152.4 mm | 6 " | 0.5 ' | 30 | 0.1 in | 2.54 mm | Polarizing Key, Strain Relief | ||||||
Socket to Socket | 2 | IDC | 0.05 " | 1.27 mm | Unshielded | 0.76 Ám | 30 Áin | Gold | 10 | Multiple, Ribbon | 0.1 in | 2.54 mm | Polarizing Key, Strain Relief | 457.2 mm | 1.5 ft |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 19.89 | |
| 10 | $ 15.32 | |||
| 25 | $ 13.86 | |||
| 50 | $ 12.88 | |||
| 100 | $ 11.98 | |||
| 250 | $ 10.93 | |||
| 500 | $ 10.22 | |||
| 1000 | $ 9.64 | |||
Description
General part information
M3UUK Series

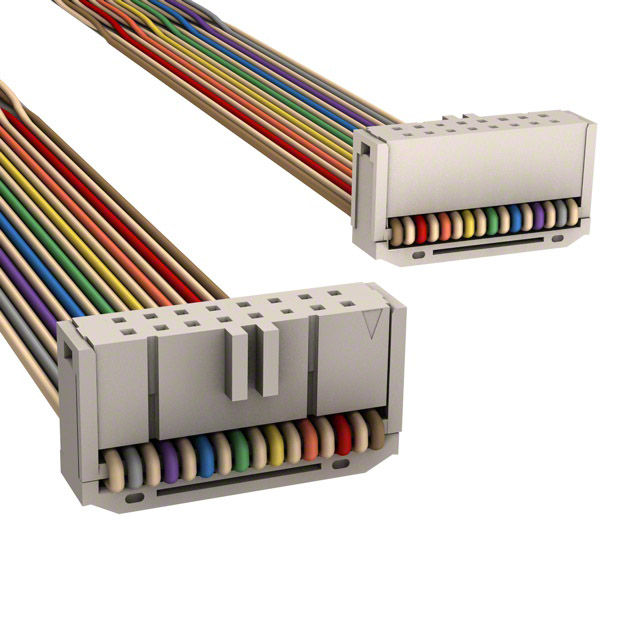

16 Position Cable Assembly Rectangular Socket to Socket 3.34' (1.02m)
Documents
Technical documentation and resources
