M3UUK-4006R

Active

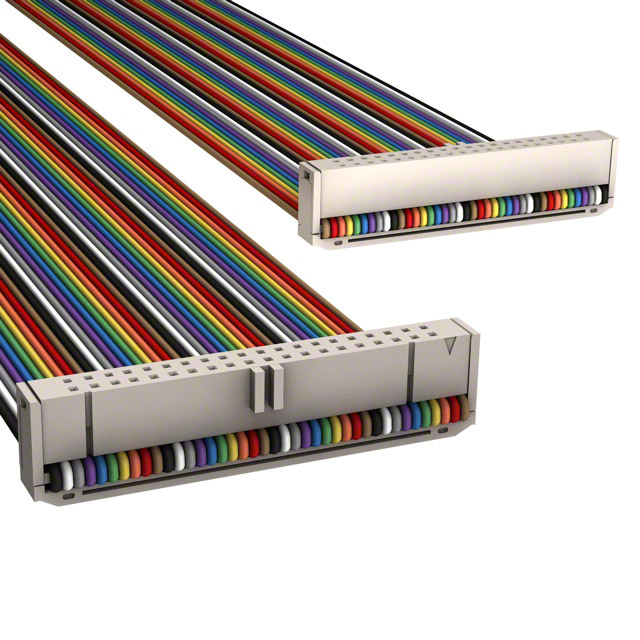

IDC CABLE - MKS40K/MC40M/MKS40K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsRibbon Cable Assembly Length Guide Datasheet +1

M3UUK-4006R

Active

IDC CABLE - MKS40K/MC40M/MKS40K

Deep-Dive with AI

DocumentsRibbon Cable Assembly Length Guide Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	M3UUK-4006R	M3UUK Series

Cable Termination	IDC	IDC
Color	Ribbon, Multiple	Ribbon, Multiple, Multiple, Twisted Pair (Flat)
Connector Type	Socket to Socket	Socket to Socket
Contact Finish	Gold	Gold
Contact Finish Thickness	0.76 Ám	0.76 Ám
Contact Finish Thickness	30 Áin	30 Áin
Features	Polarizing Key, Strain Relief	Polarizing Key, Strain Relief
Length	152.4 mm	1.52 - 508 mm
Length	6 "	6 "
Length	0.5 '	0.5 '
Length	-	1.02 - 914.4 mm
Length	-	1.5 - 3.34 ft
Length	-	1.67 - 5 ft
Number of Positions	40	10 - 60
Number of Positions	-	16
Number of Rows	2	2
Pitch - Cable	0.05 "	0.05 "
Pitch - Cable	1.27 mm	1.27 mm
Pitch - Connector	0.1 in	0.1 in
Pitch - Connector	2.54 mm	2.54 mm
Shielding	Unshielded	Unshielded

M3UUK Series

IDC CABLE - MKS40K/MC40M/MKS40K

Part	Connector Type	Number of Rows	Cable Termination	Pitch - Cable	Pitch - Cable	Shielding	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Length	Length	Length	Number of Positions	Color	Pitch - Connector	Pitch - Connector	Features	Length [x]	Length [x]	Length
3M M3UUK-4006R	Socket to Socket	2	IDC	0.05 "	1.27 mm	Unshielded	0.76 Ám	30 Áin	Gold	152.4 mm	6 "	0.5 '	40	Multiple, Ribbon	0.1 in	2.54 mm	Polarizing Key, Strain Relief
3M M3UUK-1418J	Socket to Socket	2	IDC	0.05 "	1.27 mm	Unshielded	0.76 Ám	30 Áin	Gold				14		0.1 in	2.54 mm	Polarizing Key, Strain Relief	457.2 mm	1.5 ft
3M M3UUK-4020K	Socket to Socket	2	IDC	0.05 "	1.27 mm	Unshielded	0.76 Ám	30 Áin	Gold	508 mm			40	Multiple, Twisted Pair (Flat)	0.1 in	2.54 mm	Polarizing Key, Strain Relief			1.67 ft
3M M3UUK-1020K	Socket to Socket	2	IDC	0.05 "	1.27 mm	Unshielded	0.76 Ám	30 Áin	Gold	508 mm			10	Multiple, Twisted Pair (Flat)	0.1 in	2.54 mm	Polarizing Key, Strain Relief			1.67 ft
3M M3UUK-6018J	Socket to Socket	2	IDC	0.05 "	1.27 mm	Unshielded	0.76 Ám	30 Áin	Gold				60		0.1 in	2.54 mm	Polarizing Key, Strain Relief	457.2 mm	1.5 ft
3M M3UUK-3406J	Socket to Socket	2	IDC	0.05 "	1.27 mm	Unshielded	0.76 Ám	30 Áin	Gold	152.4 mm	6 "	0.5 '	34		0.1 in	2.54 mm	Polarizing Key, Strain Relief
3M M3UUK-3006R	Socket to Socket	2	IDC	0.05 "	1.27 mm	Unshielded	0.76 Ám	30 Áin	Gold	152.4 mm	6 "	0.5 '	30	Multiple, Ribbon	0.1 in	2.54 mm	Polarizing Key, Strain Relief
3M M3UUK-2018J	Socket to Socket	2	IDC	0.05 "	1.27 mm	Unshielded	0.76 Ám	30 Áin	Gold				20		0.1 in	2.54 mm	Polarizing Key, Strain Relief	457.2 mm	1.5 ft
3M M3UUK-3006J	Socket to Socket	2	IDC	0.05 "	1.27 mm	Unshielded	0.76 Ám	30 Áin	Gold	152.4 mm	6 "	0.5 '	30		0.1 in	2.54 mm	Polarizing Key, Strain Relief
3M M3UUK-1018R	Socket to Socket	2	IDC	0.05 "	1.27 mm	Unshielded	0.76 Ám	30 Áin	Gold				10	Multiple, Ribbon	0.1 in	2.54 mm	Polarizing Key, Strain Relief	457.2 mm	1.5 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 26.05
		10	$ 20.09
		25	$ 18.19
		50	$ 16.91
		100	$ 15.75
		250	$ 14.38
		500	$ 13.46

Description

General part information

M3UUK Series

40 Position Cable Assembly Rectangular Socket to Socket 0.500' (152.40mm, 6.00")

Documents

Technical documentation and resources

Ribbon Cable Assembly Length Guide

Datasheet

3302 Series

Datasheet
