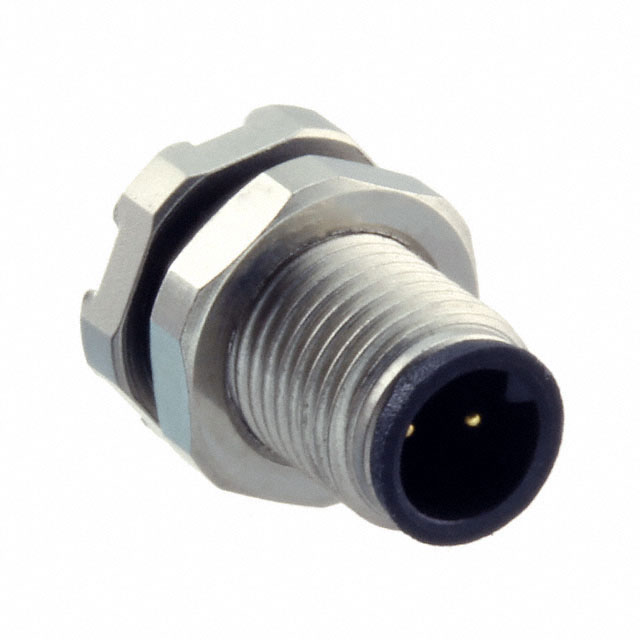

852-002-113R004

Active

MH Connectors

CONN RCPT MALE 2POS GOLD SOLDER

Search across all available documentation for this part.

Active

MH Connectors

CONN RCPT MALE 2POS GOLD SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	852-002-113R004

Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Material	Brass
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount
Number of Positions	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Brass
Shell Size - Insert	M5-2
Shielding	Shielded
Termination	Solder
Voltage Rating	60 VDC

Part	Mounting Feature	Shell Size - Insert	Insert Material	Mounting Type	Voltage Rating	Contact Material	Orientation	Connector Type	Shell Finish	Termination	Primary Material	Shell Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Color	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Ingress Protection	Shielding	Contact Finish - Mating	Number of Positions
MH Connectors 852-002-113R004	Bulkhead - Front Side Nut	M5-2	Polybutylene Terephthalate (PBT)	Panel Mount Through Hole	60 VDC	Brass	Keyed	Male Pins Receptacle	Nickel	Solder	Metal	Brass	10 çin	0.25 çm	Silver	85 °C	-40 °C	UL94 V-0	IP67 - Dust Tight Waterproof	Shielded	Gold	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Position Circular Connector Receptacle, Male Pins Solder
