Q-1T0480005001M

Active

Amphenol Custom Cable

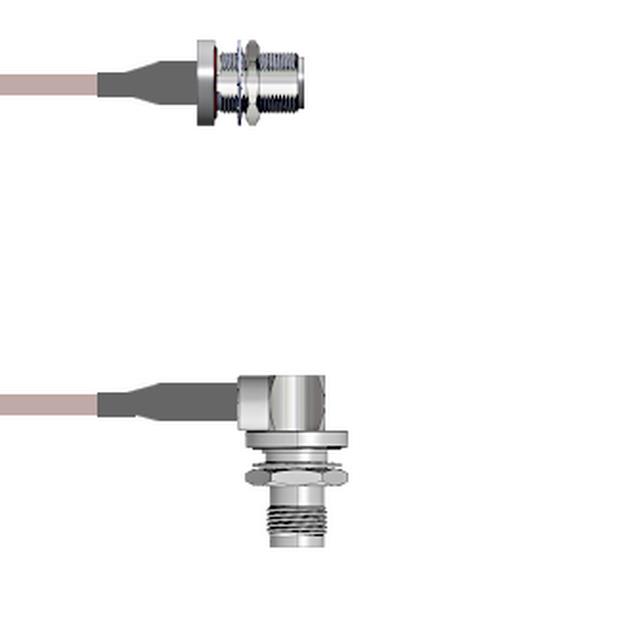

CBL ASSY NTYPE-TNC JCK-JCK 3.3'

Deep-Dive with AI

Search across all available documentation for this part.

Q-1T0480005001M

Active

Amphenol Custom Cable

CBL ASSY NTYPE-TNC JCK-JCK 3.3'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-1T0480005001M

1st Connector	N-Type Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	TNC Jack, Right Angle
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	11 GHz
Length	1 m
Length	3.3 ft
Length	39.4 in
Overall Impedance	50 Ohms

Q-1T0480 Series

Part	Overall Impedance	2nd Connector Mounting Feature	Color	1st Connector Mounting Type	Length	Length	1st Connector	Cable Type	2nd Connector Mounting Type	1st Connector Mounting Feature	1st Contact Gender	2nd Connector	Features	Frequency - Max [Max]	2nd Contact Gender	Length	Length [x]	Length [x]	Length [x]
Amphenol Custom Cable Q-1T0480005006i	50 Ohms	Bulkhead - Front Side Nut	Copper	Panel Mount	152.4 mm	6 in	N-Type Jack	RG-316	Panel Mount	Bulkhead - Front Side Nut	Female	TNC Jack Right Angle	Shielded	11 GHz	Female
Amphenol Custom Cable Q-1T0480003009i	50 Ohms	Bulkhead - Front Side Nut	Black	Panel Mount	228.6 mm	9 "	N-Type Jack	RG-174	Panel Mount	Bulkhead - Front Side Nut	Female	TNC Jack Right Angle	Shielded	11 GHz	Female
Amphenol Custom Cable Q-1T0480005048i	50 Ohms	Bulkhead - Front Side Nut	Copper	Panel Mount	1200 mm	48 in	N-Type Jack	RG-316	Panel Mount	Bulkhead - Front Side Nut	Female	TNC Jack Right Angle	Shielded	11 GHz	Female	4 ft
Amphenol Custom Cable Q-1T04800031.5M	50 Ohms	Bulkhead - Front Side Nut	Black	Panel Mount	1.5 m	59.1 in	N-Type Jack	RG-174	Panel Mount	Bulkhead - Front Side Nut	Female	TNC Jack Right Angle	Shielded	11 GHz	Female	4.9 ft
Amphenol Custom Cable Q-1T0480003018i	50 Ohms	Bulkhead - Front Side Nut	Black	Panel Mount			N-Type Jack	RG-174	Panel Mount	Bulkhead - Front Side Nut	Female	TNC Jack Right Angle	Shielded	11 GHz	Female		457.2 mm	457.2 mm
Amphenol Custom Cable Q-1T0480005001M	50 Ohms	Bulkhead - Front Side Nut	Copper	Panel Mount	1 m	39.4 in	N-Type Jack	RG-316	Panel Mount	Bulkhead - Front Side Nut	Female	TNC Jack Right Angle	Shielded	11 GHz	Female	3.3 ft
Amphenol Custom Cable Q-1T0480003.75M	50 Ohms	Bulkhead - Front Side Nut	Black	Panel Mount	750 mm	29.53 "	N-Type Jack	RG-174	Panel Mount	Bulkhead - Front Side Nut	Female	TNC Jack Right Angle	Shielded	11 GHz	Female
Amphenol Custom Cable Q-1T0480003084i	50 Ohms	Bulkhead - Front Side Nut	Black	Panel Mount	2.1 m	84 in	N-Type Jack	RG-174	Panel Mount	Bulkhead - Front Side Nut	Female	TNC Jack Right Angle	Shielded	11 GHz	Female	7 ft
Amphenol Custom Cable Q-1T0480003.25M	50 Ohms	Bulkhead - Front Side Nut	Black	Panel Mount			N-Type Jack	RG-174	Panel Mount	Bulkhead - Front Side Nut	Female	TNC Jack Right Angle	Shielded	11 GHz	Female			250 mm	9.843 "
Amphenol Custom Cable Q-1T0480005003M	50 Ohms	Bulkhead - Front Side Nut	Copper	Panel Mount	3 m	118.1 in	N-Type Jack	RG-316	Panel Mount	Bulkhead - Front Side Nut	Female	TNC Jack Right Angle	Shielded	11 GHz	Female	9.8 '

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 103.58
		25	$ 101.59
		50	$ 99.61
		100	$ 97.62
		250	$ 95.64

Description

General part information

Q-1T0480 Series

Cable Assembly Coaxial N-Type to TNC RG-316 39.4" (1.0m) 3.3'

Documents

Technical documentation and resources

No documents available
