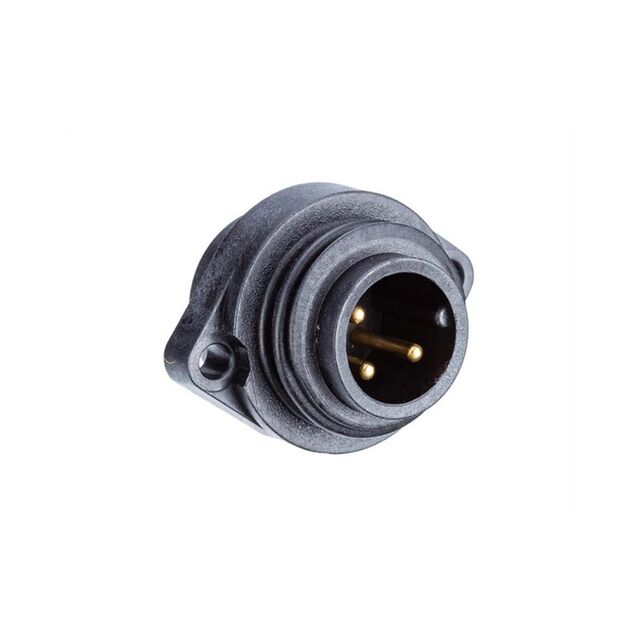

PWE-05PMMS-SC7001

Active

Amphenol LTW

POWER 8A

Search across all available documentation for this part.

Active

Amphenol LTW

POWER 8A

Technical Specifications

Parameters and characteristics for this part

Specification	PWE-05PMMS-SC7001

Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	8 A
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Feature	Flange
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shielding	Unshielded
Voltage Rating	277 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Connector Type	Ingress Protection	Voltage Rating	Orientation	Contact Finish - Mating	Insert Material	Color	Contact Material	Mounting Feature	Shell Material	Primary Material	Current Rating (Amps)
Amphenol LTW PWE-05PMMS-SC7001	-40 °C	105 ░C	Unshielded	Male Pins Receptacle	IP67 - Dust Tight Waterproof	277 V	Keyed	Gold	Polyamide (PA) Nylon Glass Filled	Black	Copper Alloy	Flange	Glass Filled Nylon Polyamide (PA)	Plastic	8 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Circular Connector Receptacle, Male Pins Solder Cup
