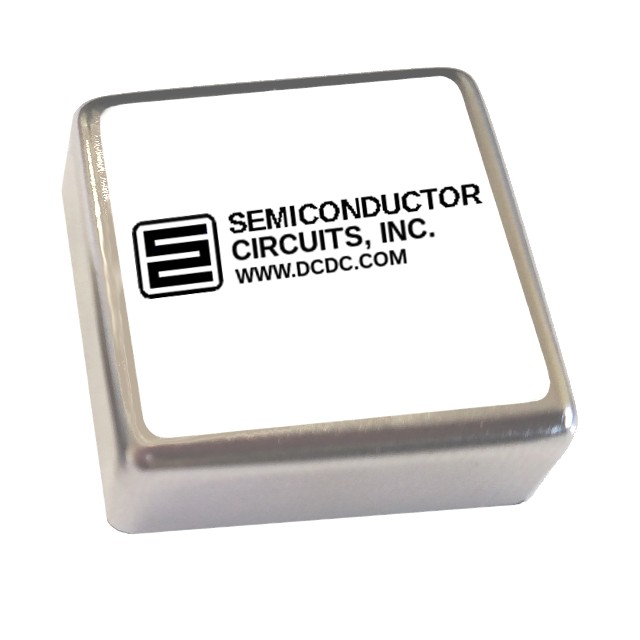

CP15B1130018N

Active

Semiconductor Circuits, Inc.

DC DC CONVERTER 5V 15W

Search across all available documentation for this part.

Active

Semiconductor Circuits, Inc.

DC DC CONVERTER 5V 15W

Technical Specifications

Parameters and characteristics for this part

DC DC CONVERTER 5V 15W

Part	Number of Outputs	Voltage - Input (Max) [Max]	Applications	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Isolation	Efficiency	Control Features	Current - Output (Max) [Max]	Type	Voltage - Output 1	Voltage - Input (Min) [Min]	Power (Watts)	Mounting Type
Semiconductor Circuits, Inc. CP15B1130018N	1	36 V	ITE (Commercial)	0.35 "	23.9 mm	8.9 mm	0.94 in	0.94 in	23.9 mm	6-DIP Module	85 °C	-40 °C	2250 VDC	87 %	Active Low, Enable	3 A	Isolated Module	5 V	9 V	15 W	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 1 Output 5V 3A 9V - 36V Input

Technical documentation and resources

No documents available
