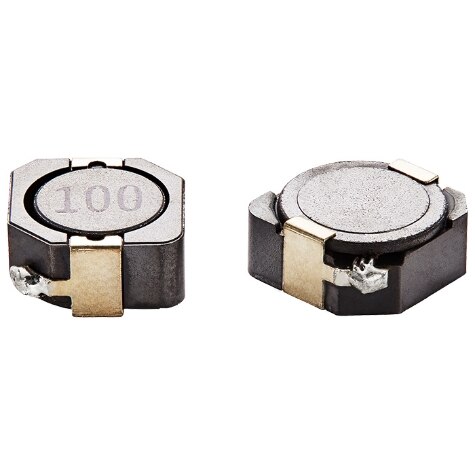

SCRH105R-271

Active

Signal Transformer

POWER INDUCTORS - SMD INDUCTOR SMD 270UH 0.68A 672MOHMS100KHZ

SCRH105R-271

Active

Signal Transformer

POWER INDUCTORS - SMD INDUCTOR SMD 270UH 0.68A 672MOHMS100KHZ

Description Specifications Series Pricing CAD Documents

Description

General part information

SCRH Series

Power Inductors - SMD Inductor SMD 7.1uH 1.22A0.11ohms100KHz

Technical Specifications

Parameters and characteristics for this part

Specification	SCRH105R-271

Current - Saturation (Isat)	0.68 mA
Current Rating	970 mA
DC Resistance (DCR) (Max)	672 mOhm
Height - Seated (Max)	0.201 in
Inductance	270 µH
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Package / Case	Nonstandard
Shielding	Shielded
Size / Dimension Length	0.413 in
Size / Dimension Width	0.406 in
Tolerance	30 %

SCRH Series

Power Inductors - SMD Inductor SMD 7.1uH 1.22A0.11ohms100KHz

Part	Package / Case	Inductance	Inductance Frequency - Test	Current - Saturation (Isat)	DC Resistance (DCR) (Max)	Current Rating	Shielding	Mounting Type	Operating Temperature (Max)	Operating Temperature (Min)	Size / Dimension Width	Size / Dimension Length	Tolerance	Height - Seated (Max)	Type	Tolerance (Positive)	Tolerance (Negative)
Signal Transformer SCRH123-391	Nonstandard	390 µH	100 kHz	0.8 mA	1.95 Ohm	0.5 A	Shielded	Surface Mount	125 °C	-40 °C	0.492 in	0.492 in	20 %	0.15 in
Signal Transformer SCRH127B-470	Nonstandard	47 µH	100 kHz	2.5 A	100 mOhm	2.62 A	Shielded	Surface Mount	125 °C	-40 °C	0.492 in	0.492 in	20 %	0.315 in
Signal Transformer SCRH105R-271	Nonstandard	270 µH	100 kHz	0.68 mA	672 mOhm	970 mA	Shielded	Surface Mount	125 °C	-40 °C	0.406 in	0.413 in	30 %	0.201 in
Signal Transformer SCRH62-270	Nonstandard	27 µH	100 kHz	660 mA	380 mOhm	0.89 A	Shielded	Surface Mount	125 °C	-40 °C	0.256 in	0.28 in	20 %	0.118 in
Signal Transformer SCRH124B-150	Nonstandard	15 µH	100 kHz	3.2 A	53 mOhm	3.5 A	Shielded	Surface Mount	125 °C	-40 °C	0.492 in	0.492 in	20 %	0.189 in
Signal Transformer SCIH1040HC-R56M	Nonstandard	560 nH	200 kHz	40 A	1.8 mOhm	25 A	Shielded	Surface Mount	125 °C	-55 °C	0.402 in	0.453 in	20 %	0.157 in	Wirewound
Signal Transformer SCRH74-330	Nonstandard	33 µH	1 kHz	0.96 mA	170 mOhm	960 mA	Shielded	Surface Mount	125 °C	-40 °C	0.307 in	0.307 in	20 %	0.177 in
Signal Transformer SCRH127B-6R1	Nonstandard	6.1 µH	100 kHz	6.6 A	17.6 mOhm	5.8 A	Shielded	Surface Mount	125 °C	-40 °C	0.492 in	0.492 in		0.315 in		40 %	20 %
Signal Transformer SCRH74B-330	Nonstandard	33 µH	1 kHz	0.96 mA	170 mOhm	960 mA	Shielded	Surface Mount	125 °C	-40 °C	0.307 in	0.307 in	20 %	0.177 in
Signal Transformer SCRH62-7R1	Nonstandard	7.1 µH	100 kHz	1.22 A	110 mOhm	1.53 A	Shielded	Surface Mount	125 °C	-40 °C	0.256 in	0.28 in		0.118 in		40 %	20 %

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

SCRH105R-271 | Datasheet
