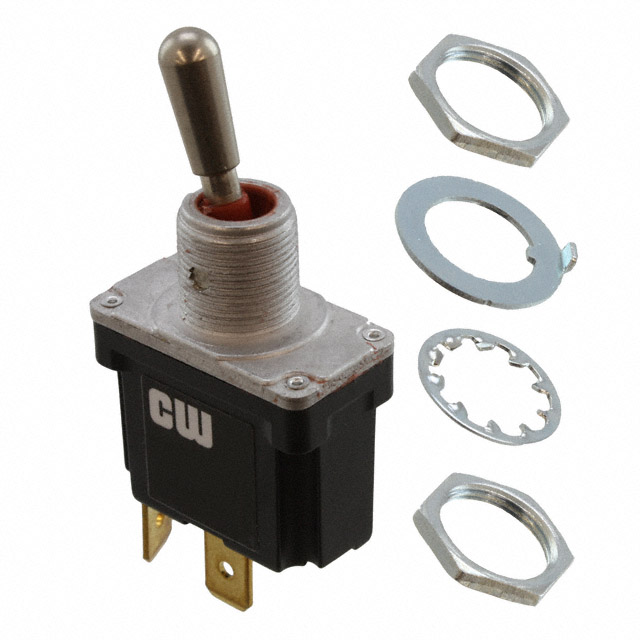

GTB-2B12

Active

CW Industries

SWITCH TOGGLE SPST 12A 125V

Search across all available documentation for this part.

Active

CW Industries

SWITCH TOGGLE SPST 12A 125V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	GTB-2B12	GTB-2B1 Series

Actuator Length [x]	16.2 mm	16.2 mm
Actuator Material	Brass, Nickel Plated	Brass, Nickel Plated
Actuator Type	Standard Round	Standard Round
Bushing Thread	15/32-32	15/32-32
Circuit	SPST	SPST, SPDT
Current Rating (Amps)	12 A	12 A
Electrical Life	30000 Cycles	30000 Cycles
Illumination	Non-Illuminated	Non-Illuminated
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Panel Cutout Dimensions [diameter]	12 mm	12 mm
Switch Function	On-Off	On-Off, On-On, On-Mom
Termination Style	Quick Connect - 0.250" (6.3mm)	Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	125 V	125 V

SWITCH TOGGLE SPST 12A 125V

Part	Bushing Thread	Actuator Type	Voltage Rating - AC	Actuator Length [x]	Ingress Protection	Switch Function	Termination Style	Actuator Material	Panel Cutout Dimensions [diameter]	Illumination	Circuit	Electrical Life	Current Rating (Amps)
CW Industries GTB-2B12	15/32-32	Standard Round	125 V	16.2 mm	IP68 - Dust Tight, Waterproof	On-Off	Quick Connect - 0.250" (6.3mm)	Brass, Nickel Plated	12 mm	Non-Illuminated	SPST	30000 Cycles	12 A
CW Industries GTB-2B13	15/32-32	Standard Round	125 V	16.2 mm	IP68 - Dust Tight, Waterproof	On-On	Quick Connect - 0.250" (6.3mm)	Brass, Nickel Plated	12 mm	Non-Illuminated	SPDT	30000 Cycles	12 A
CW Industries GTB-2B18	15/32-32	Standard Round	125 V	16.2 mm	IP68 - Dust Tight, Waterproof	On-Mom	Quick Connect - 0.250" (6.3mm)	Brass, Nickel Plated	12 mm	Non-Illuminated	SPDT	30000 Cycles	12 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch SPST Panel Mount
