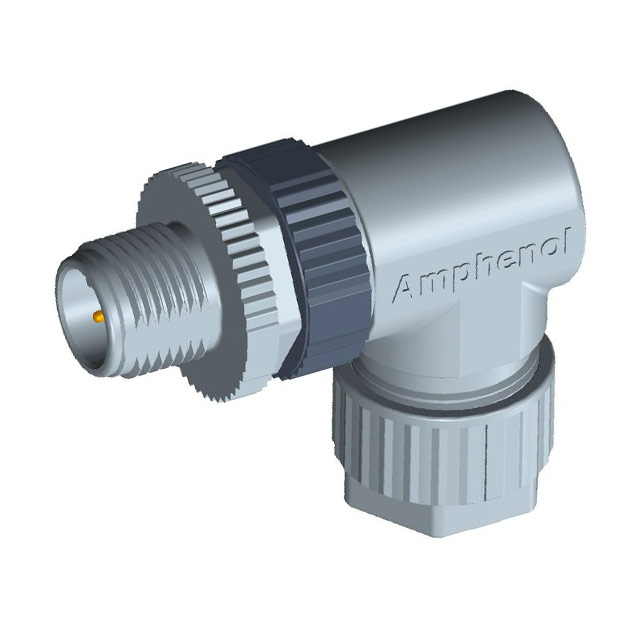

M12A-05BMMB-SR7001

Active

Amphenol LTW

CONN PLUG MALE 5POS GOLD SCREW

Search across all available documentation for this part.

Active

Amphenol LTW

CONN PLUG MALE 5POS GOLD SCREW

Technical Specifications

Parameters and characteristics for this part

Specification	M12A-05BMMB-SR7001

Backshell Material, Plating	Polyamide (PA), Nylon
Color	Black, Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	4 A
Features	Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Nylon, Polyamide (PA)
Mounting Type	Free Hanging (In-Line), Right Angle
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	A
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	M12-5
Shielding	Unshielded
Termination	Screw
Voltage Rating	60 VAC

Part	Orientation	Shell Material	Mounting Type	Contact Material	Backshell Material, Plating	Ingress Protection	Connector Type	Shell Finish	Primary Material	Features	Shielding	Insert Material	Shell Size - Insert	Current Rating (Amps)	Termination	Color	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating
Amphenol LTW M12A-05BMMB-SR7001	A	Zinc Alloy	Free Hanging (In-Line) Right Angle	Copper Alloy	Nylon Polyamide (PA)	IP67 - Dust Tight Waterproof	Male Pins Plug	Nickel	Metal	Backshell	Unshielded	Nylon Polyamide (PA)	M12-5	4 A	Screw	Black Silver	60 VAC	-40 °C	105 ░C	Gold
Amphenol LTW M12A-05BMMB-SL7001	A	Zinc Alloy	Free Hanging (In-Line)	Copper Alloy	Nylon Polyamide (PA)	IP67 - Dust Tight Waterproof	Male Pins Plug	Nickel	Metal	Backshell	Unshielded	Nylon Polyamide (PA)	M12-5	4 A	Screw	Silver	60 VAC	-40 °C	105 ░C	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Circular Connector Plug, Male Pins Screw
