FCCE-9-01

Active

Essentra Access Solutions

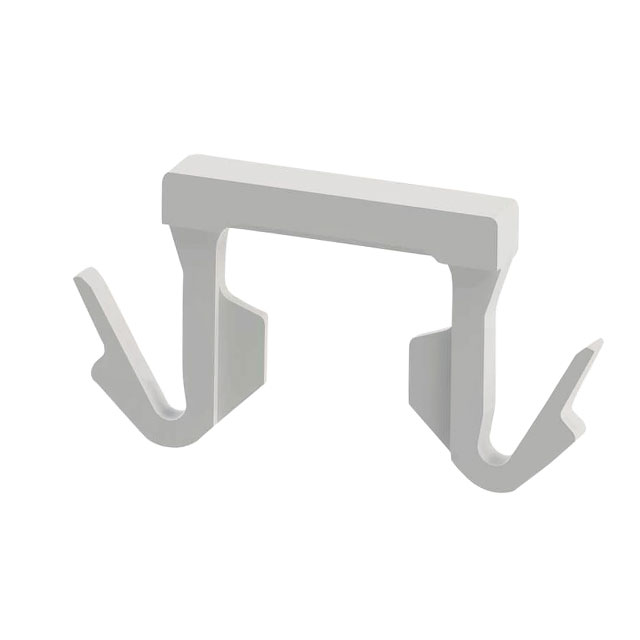

CBL CLAMP FLAT NATURAL PUSH IN

Search across all available documentation for this part.

Active

Essentra Access Solutions

CBL CLAMP FLAT NATURAL PUSH IN

Technical Specifications

Parameters and characteristics for this part

Specification	FCCE-9-01

Color	Natural
Height [z]	3.56 mm
Height [z]	0.14 "
Length	0.39 "
Length	9.91 mm
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Mounting Type	Push In
Opening Size [z]	0.27 in
Opening Size [z]	6.86 mm
Panel Hole Size	0.157 in
Panel Hole Size	Square
Panel Hole Size	4 mm
Panel Thickness [Max]	1.2 mm
Panel Thickness [Max]	0.047 "
Panel Thickness [Min]	0.99 mm
Panel Thickness [Min]	0.039 in
Type	Clamp, Flat
Type Attributes	Mini
Width [y]	0.28 in
Width [y]	7.11 mm

Part	Opening Size [z]	Opening Size [z]	Height [z]	Height [z]	Type	Panel Hole Size	Panel Hole Size	Panel Hole Size	Type Attributes	Color	Material Flammability Rating	Width [y]	Width [y]	Length	Length	Material	Mounting Type	Panel Thickness [Min]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Max]
Essentra Access Solutions FCCE-9-01	0.27 in	6.86 mm	3.56 mm	0.14 "	Clamp Flat	0.157 in	Square	4 mm	Mini	Natural	UL94 V-2	0.28 in	7.11 mm	0.39 "	9.91 mm	Polyamide (PA66) Nylon 6/6	Push In	0.99 mm	0.039 in	1.2 mm	0.047 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Clamp, Flat Natural Push In 0.270" (6.86mm)
