AUIPS7081

Obsolete

Infineon Technologies

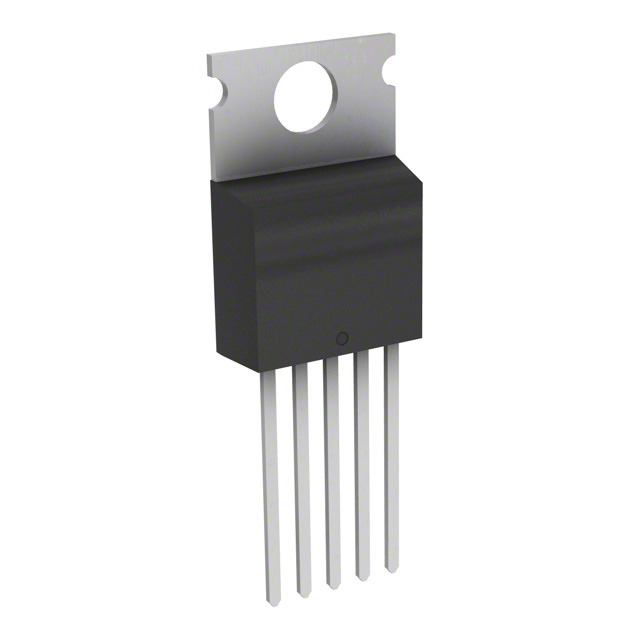

IC PWR SWITCH N-CHAN 1:1 TO220-5

Search across all available documentation for this part.

Obsolete

Infineon Technologies

IC PWR SWITCH N-CHAN 1:1 TO220-5

Technical Specifications

Parameters and characteristics for this part

Specification	AUIPS7081

Current - Output (Max) [Max]	2 A
Fault Protection	Open Load Detect, Current Limiting (Fixed), Over Temperature
Features	Auto Restart
Grade	Automotive
Input Type	Non-Inverting
Interface	On/Off
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Output Configuration	High Side
Output Type	N-Channel
Package / Case	TO-220-5
Qualification	AEC-Q100
Ratio - Input:Output [custom]	1:1
Rds On (Typ)	55 mOhm
Supplier Device Package	TO-220-5
Switch Type	General Purpose
Voltage - Load [Max]	35 V
Voltage - Load [Min]	6 V
Voltage - Supply (Vcc/Vdd)	False

Part	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Load [Min]	Voltage - Load [Max]	Switch Type	Supplier Device Package	Rds On (Typ)	Interface	Fault Protection	Number of Outputs	Grade	Features	Output Type	Current - Output (Max) [Max]	Ratio - Input:Output [custom]	Input Type	Mounting Type	Qualification	Output Configuration
Infineon Technologies AUIPS7081	TO-220-5	150 °C	-40 °C	6 V	35 V	General Purpose	TO-220-5	55 mOhm	On/Off	Current Limiting (Fixed) Open Load Detect Over Temperature	1	Automotive	Auto Restart	N-Channel	2 A	1:1	Non-Inverting	Through Hole	AEC-Q100	High Side
Infineon Technologies AUIPS7081RTRL	DPAK (4 Leads + Tab) TO-252-5 TO-252AD	150 °C	-40 °C	6 V	35 V	General Purpose	PG-TO252-5	55 mOhm	On/Off	Current Limiting (Fixed) Open Load Detect Over Temperature	1	Automotive	Auto Restart	N-Channel	2 A	1:1	Non-Inverting	Surface Mount	AEC-Q100	High Side
Infineon Technologies AUIPS7081S	D2PAK (4 Leads + Tab) TO-263-5 TO-263BB	150 °C	-40 °C	6 V	35 V	General Purpose	PG-TO263-5	55 mOhm	On/Off	Current Limiting (Fixed) Open Load Detect Over Temperature	1	Automotive	Auto Restart	N-Channel	2.3 A	1:1	Non-Inverting	Surface Mount	AEC-Q100	High Side
Infineon Technologies AUIPS7081R	DPAK (4 Leads + Tab) TO-252-5 TO-252AD	150 °C	-40 °C	6 V	35 V	General Purpose	PG-TO252-5	55 mOhm	On/Off	Current Limiting (Fixed) Open Load Detect Over Temperature	1	Automotive	Auto Restart	N-Channel	2 A	1:1	Non-Inverting	Surface Mount	AEC-Q100	High Side

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Power Switch/Driver 1:1 N-Channel 2A TO-220-5
