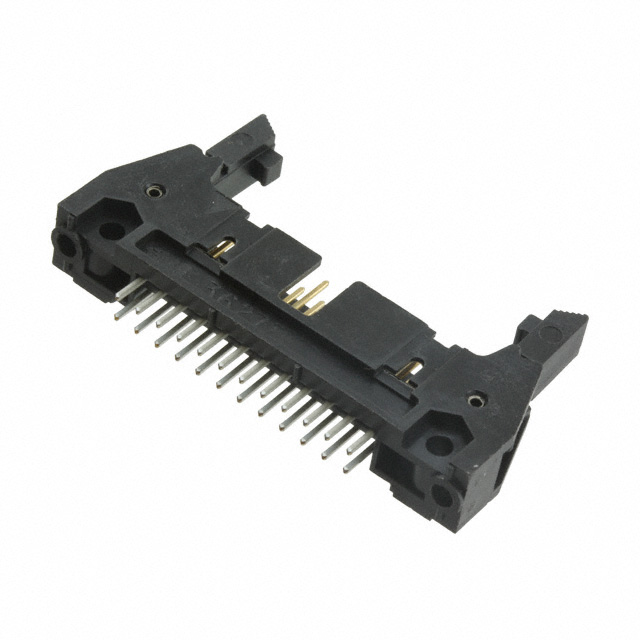

D3627-6302-AR

Active

3M (TC)

CONN HEADER VERT 24POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Interconnect Catalog

D3627-6302-AR

Active

3M (TC)

CONN HEADER VERT 24POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet Interconnect Catalog

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	D3627-6302-AR

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	1 çm
Contact Finish Thickness - Post	39.4 çin
Contact Length - Mating	6.1 mm
Contact Length - Mating [x]	0.24 in
Contact Length - Post	2.84 mm
Contact Length - Post	0.112 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	1.75 A
Fastening Type	Latch Lock/Eject Hooks, Long
Insulation Color	Black
Insulation Height	17.27 mm
Insulation Height	0.68 in
Insulation Material	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	24
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Overall Contact Length	0.652 in
Overall Contact Length	16.56 mm
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

D3627 Series

Part	Contact Shape	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Mating	Contact Length - Mating [x]	Contact Material	Contact Finish - Post	Contact Finish - Mating	Style	Insulation Height	Insulation Height	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Termination	Overall Contact Length	Overall Contact Length	Insulation Color	Number of Rows	Material Flammability Rating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Mounting Type	Contact Length - Post	Contact Length - Post	Contact Type	Pitch - Mating	Pitch - Mating	Fastening Type	Shrouding	Insulation Material	Current Rating (Amps)	Connector Type
3M (TC) D3627-6002-AR	Square	All	10 çin	0.25 çm	6.1 mm	0.24 in	Brass	Tin	Gold	Board to Cable/Wire	17.27 mm	0.68 in	105 ░C	-55 °C	24	Solder	0.652 in	16.56 mm	Black	2	UL94 V-0	2.54 mm	0.1 in	1 çm	39.4 çin	Through Hole	2.84 mm	0.112 in	Male Pin	0.1 in	2.54 mm	Push-Pull	Shrouded - 4 Wall	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	1.75 A	Header
3M (TC) D3627-5302-AR	Square	All	10 çin	0.25 çm	6.1 mm	0.24 in	Brass	Tin	Gold	Board to Cable/Wire	8.64 mm	0.34 in	105 ░C	-55 °C	24	Solder			Black	2	UL94 V-0	2.54 mm	0.1 in	1 çm	39.4 çin	Through Hole Right Angle	2.84 mm	0.112 in	Male Pin	0.1 in	2.54 mm	Latch Lock/Eject Hooks Long	Shrouded - 4 Wall	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	1.75 A	Header
3M (TC) D3627-5202-AR	Square	All	10 çin	0.25 çm	6.1 mm	0.24 in	Brass	Tin	Gold	Board to Cable/Wire	8.64 mm	0.34 in	105 ░C	-55 °C	24	Solder			Black	2	UL94 V-0	2.54 mm	0.1 in	1 çm	39.4 çin	Through Hole Right Angle	2.84 mm	0.112 in	Male Pin	0.1 in	2.54 mm	Latch Lock/Eject Hooks Short	Shrouded - 4 Wall	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	1.75 A	Header
3M (TC) D3627-6302-AR	Square	All	10 çin	0.25 çm	6.1 mm	0.24 in	Brass	Tin	Gold	Board to Cable/Wire	17.27 mm	0.68 in	105 ░C	-55 °C	24	Solder	0.652 in	16.56 mm	Black	2	UL94 V-0	2.54 mm	0.1 in	1 çm	39.4 çin	Through Hole	2.84 mm	0.112 in	Male Pin	0.1 in	2.54 mm	Latch Lock/Eject Hooks Long	Shrouded - 4 Wall	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	1.75 A	Header

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1000	$ 2.02

Description

General part information

D3627 Series

Connector Header Through Hole 24 position 0.100" (2.54mm)
