SD-112-G-2

Active

Samtec Inc.

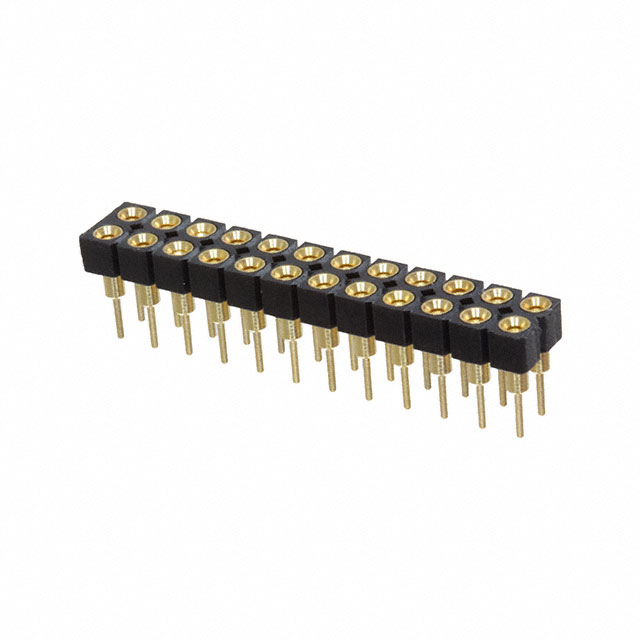

CONN RCPT 24POS 0.1 GOLD PCB

Search across all available documentation for this part.

Active

Samtec Inc.

CONN RCPT 24POS 0.1 GOLD PCB

Technical Specifications

Parameters and characteristics for this part

Specification	SD-112-G-2

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	10 çin
Contact Finish Thickness - Post	0.25 çm
Contact Length - Post [x]	3.18 mm
Contact Length - Post [x]	0.125 in
Contact Material	Beryllium Copper
Contact Shape	Circular
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Through Hole
Number of Positions	24
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Solder

Part	Insulation Material	Mounting Type	Termination	Contact Finish - Mating	Contact Shape	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Number of Rows	Fastening Type	Contact Length - Post [x]	Contact Length - Post [x]	Contact Type	Number of Positions	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Connector Type	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post	Contact Length - Post
Samtec Inc. SD-112-G-2	Liquid Crystal Polymer (LCP)	Through Hole	Solder	Gold	Circular	2.54 mm	0.1 in	Beryllium Copper	-55 °C	125 °C	Gold	2	Push-Pull	3.18 mm	0.125 in	Female Socket	24	0.1 in	2.54 mm	All	Receptacle	Black	10 çin	0.25 çm	10 çin	0.25 çm
Samtec Inc. SD-112-T-2	Liquid Crystal Polymer (LCP)	Through Hole	Solder	Gold	Circular	2.54 mm	0.1 in	Beryllium Copper	-55 °C	125 °C	Tin	2	Push-Pull	3.18 mm	0.125 in	Female Socket	24	0.1 in	2.54 mm	All	Receptacle	Black	30 Áin	0.76 Ám
Samtec Inc. SD-112-T-38	Liquid Crystal Polymer (LCP)	Through Hole	Solder	Gold	Circular	2.54 mm	0.1 in	Beryllium Copper	-55 °C	125 °C	Tin	2	Push-Pull			Female Socket	24	0.1 in	2.54 mm	All	Receptacle	Black	30 Áin	0.76 Ám			0.18 in	4.57 mm
