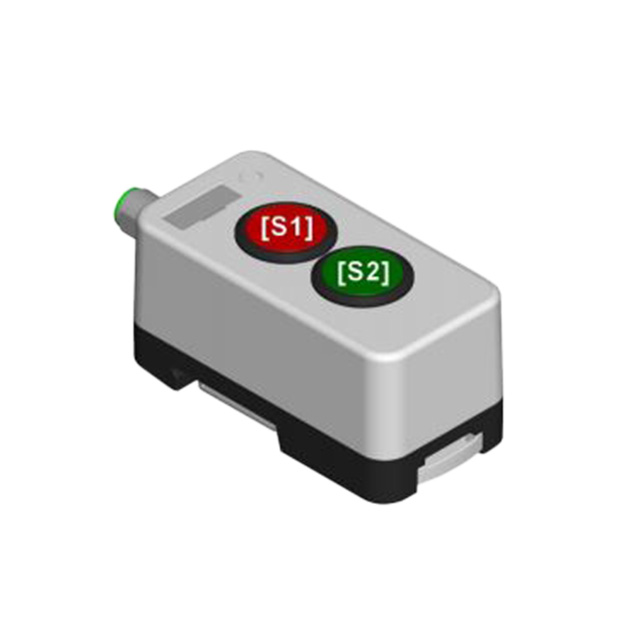

73-00001.2
ActiveEAO
SWITCH PB SPST-NOX2 0.1A 30V
Deep-Dive with AI
Search across all available documentation for this part.
73-00001.2
ActiveEAO
SWITCH PB SPST-NOX2 0.1A 30V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 73-00001.2 | 73-00001 Series |
|---|---|---|
| - | - | |
| Actuator Marking | No Marking | No Marking |
| Actuator Type | Round, Button | Plunger for Cap, Round, Button |
| Circuit | SPST-NO x 2 | SPST-NO x 2 |
| Color - Actuator/Cap | Green, Red | Green, Red |
| Current Rating (Amps) | 100 mA | 100 mA |
| Illumination Type, Color | White, LED | White, LED |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Mounting Type | Chassis Mount | Chassis Mount |
| Operating Temperature [Max] | 70 °C | 70 °C |
| Operating Temperature [Min] | -25 °C | -25 °C |
| Switch Function | Off-Mom | Off-Mom |
| Termination Style | Connector | Connector |
| Type | Illuminated, Standard | Illuminated, Standard |
| Voltage Rating - DC | 30 V | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 336.73 | |
| 5 | $ 293.89 | |||
| 10 | $ 277.11 | |||
| 25 | $ 256.33 | |||
73-00001 Series
Emergency Stop Switches / E-Stop Switches Smart-Box yellow 84 illuminated E Stop wired to M12 connector DIN rail mounted
| Part | Actuator Type | Actuator Marking | Termination Style | Ingress Protection | Voltage Rating - DC | Operating Temperature [Max] | Operating Temperature [Min] | Switch Function | Illumination Type, Color | Circuit | Type | Current Rating (Amps) | Mounting Type | Color - Actuator/Cap |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EAO 73-00001.1 | Plunger for Cap | No Marking | Connector | IP67 - Dust Tight, Waterproof | 30 V | 70 °C | -25 °C | Off-Mom | LED, White | SPST-NO x 2 | Illuminated, Standard | 100 mA | Chassis Mount | |
EAO 73-00001.1 | ||||||||||||||
EAO 73-00001.2 | Button, Round | No Marking | Connector | IP67 - Dust Tight, Waterproof | 30 V | 70 °C | -25 °C | Off-Mom | LED, White | SPST-NO x 2 | Illuminated, Standard | 100 mA | Chassis Mount | Green, Red |
Description
General part information
73-00001 Series
Emergency Stop Switches / E-Stop Switches Smart-Box yellow 84 illuminated E Stop wired to M12 connector DIN rail mounted
