73-00001.1

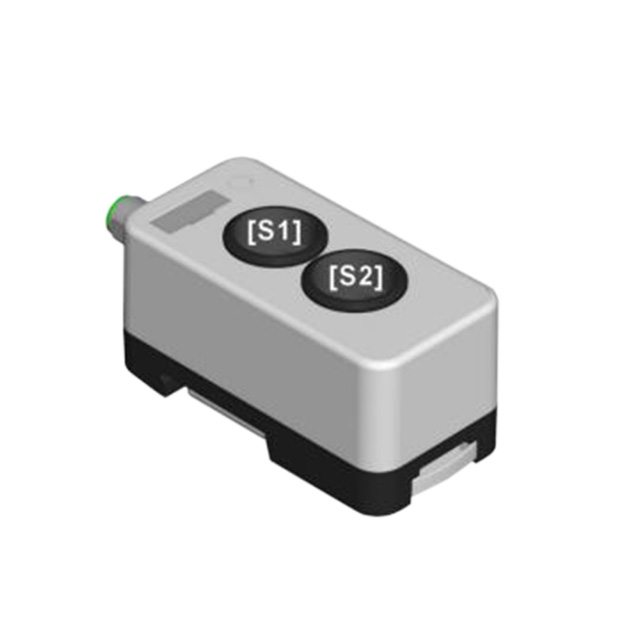

ActiveEMERGENCY STOP SWITCHES / E-STOP SWITCHES SMART BOX WHITE WITH 2 X 84 SERIES SWITCHES WIRED TO M12 CONNECTOR DIN RAIL MOUNTED
Deep-Dive with AI
Search across all available documentation for this part.
73-00001.1
ActiveEMERGENCY STOP SWITCHES / E-STOP SWITCHES SMART BOX WHITE WITH 2 X 84 SERIES SWITCHES WIRED TO M12 CONNECTOR DIN RAIL MOUNTED
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 73-00001.1 | 73-00001 Series |
|---|---|---|
| Actuator Marking | - | No Marking |
| Actuator Type | - | Plunger for Cap, Round, Button |
| Circuit | - | SPST-NO x 2 |
| Color - Actuator/Cap | - | Green, Red |
| Current Rating (Amps) | - | 100 mA |
| Illumination Type, Color | - | White, LED |
| Ingress Protection | - | IP67 - Dust Tight, Waterproof |
| Mounting Type | - | Chassis Mount |
| null | - | |
| Operating Temperature | - | 70 °C |
| Operating Temperature | - | -25 °C |
| Switch Function | - | Off-Mom |
| Termination Style | - | Connector |
| Type | - | Illuminated, Standard |
| Voltage Rating - DC | - | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
73-00001 Series
Emergency Stop Switches / E-Stop Switches Smart-Box yellow 84 illuminated E Stop wired to M12 connector DIN rail mounted
| Part | Actuator Type | Actuator Marking | Termination Style | Ingress Protection | Voltage Rating - DC | Operating Temperature [Max] | Operating Temperature [Min] | Switch Function | Illumination Type, Color | Circuit | Type | Current Rating (Amps) | Mounting Type | Color - Actuator/Cap |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EAO 73-00001.1 | Plunger for Cap | No Marking | Connector | IP67 - Dust Tight, Waterproof | 30 V | 70 °C | -25 °C | Off-Mom | LED, White | SPST-NO x 2 | Illuminated, Standard | 100 mA | Chassis Mount | |
EAO 73-00001.1 | ||||||||||||||
EAO 73-00001.2 | Button, Round | No Marking | Connector | IP67 - Dust Tight, Waterproof | 30 V | 70 °C | -25 °C | Off-Mom | LED, White | SPST-NO x 2 | Illuminated, Standard | 100 mA | Chassis Mount | Green, Red |
Description
General part information
73-00001 Series
Emergency Stop Switches / E-Stop Switches Smart-Box yellow 84 illuminated E Stop wired to M12 connector DIN rail mounted
