CONN012

Obsolete

TE Connectivity Linx

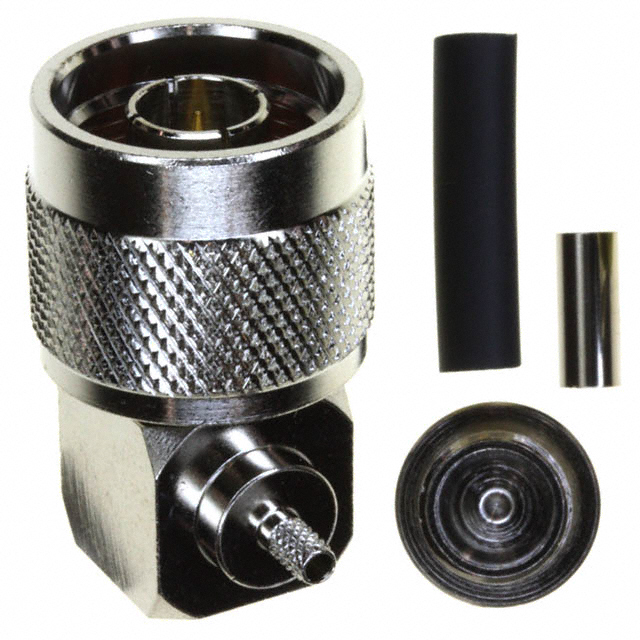

CONN N PLUG R/A 50 OHM SOLDER

Search across all available documentation for this part.

Obsolete

TE Connectivity Linx

CONN N PLUG R/A 50 OHM SOLDER

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CONN012	- Series

Body Finish	Nickel	Nickel
Body Material	Brass	Brass
Cable Group	RG-174	RG-174
Center Contact Material	Brass	Brass
Center Contact Plating	Gold	Gold
Connector Style	N Type	N Type
Connector Type	Male Pin, Plug	Receptacle, Female Socket, Male Pin, Plug
Contact Termination	Solder	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz	11 GHz
Housing Color	Silver	Silver
Impedance	50 Ohms	50 Ohms
Includes	1 Connector, 1 Ferrule, 1 End Cap	1 Contact, 1 Connector, 1 Insulator, 1 Ferrule, 1 Lockwasher, 1 Nut, 1 End Cap
Insertion Loss	0.3 dB	0.3 dB
Mating Cycles	500	500
Mounting Feature	-	Bulkhead - Front Side Nut
Mounting Type	Free Hanging (In-Line), Right Angle	Free Hanging (In-Line), Right Angle
Number of Ports	1	1
Operating Temperature [Max]	165 °C	165 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Shield Termination	Crimp	Crimp
Voltage Rating	500 V	500 V

CONN N RCPT STR 50 OHM SOLDER

Part	Dielectric Material	Includes	Contact Termination	Impedance	Center Contact Material	Body Material	Voltage Rating	Mating Cycles	Connector Type	Shield Termination	Operating Temperature [Min]	Operating Temperature [Max]	Frequency - Max [Max]	Body Finish	Mounting Type	Number of Ports	Connector Style	Center Contact Plating	Cable Group	Housing Color	Insertion Loss	Mounting Feature
TE Connectivity Linx CONN011	Polytetrafluoroethylene (PTFE)	1 Connector, 1 Contact, 1 Ferrule, 1 Insulator	Solder	50 Ohms	Brass	Brass	500 V	500	Female Socket, Receptacle	Crimp	-65 ░C	165 °C	11 GHz	Nickel	Free Hanging (In-Line)	1	N Type	Gold	RG-174	Silver	0.3 dB
TE Connectivity Linx CONN005	Polytetrafluoroethylene (PTFE)	1 Connector, 1 Contact, 1 Ferrule, 1 Insulator, 1 Lockwasher, 1 Nut	Solder	50 Ohms	Brass	Brass	500 V	500	Female Socket, Receptacle	Crimp	-65 ░C	165 °C	11 GHz	Nickel		1	N Type	Gold	RG-174	Silver	0.3 dB	Bulkhead - Front Side Nut
TE Connectivity Linx CONN007	Polytetrafluoroethylene (PTFE)	1 Connector, 1 Contact, 1 Ferrule	Solder	50 Ohms	Brass	Brass	500 V	500	Male Pin, Plug	Crimp	-65 ░C	165 °C	11 GHz	Nickel	Free Hanging (In-Line)	1	N Type	Gold	RG-174	Silver	0.3 dB
TE Connectivity Linx CONN012	Polytetrafluoroethylene (PTFE)	1 Connector, 1 End Cap, 1 Ferrule	Solder	50 Ohms	Brass	Brass	500 V	500	Male Pin, Plug	Crimp	-65 ░C	165 °C	11 GHz	Nickel	Free Hanging (In-Line), Right Angle	1	N Type	Gold	RG-174	Silver	0.3 dB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

N Type Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
