R123426003

Active

Radiall USA, Inc.

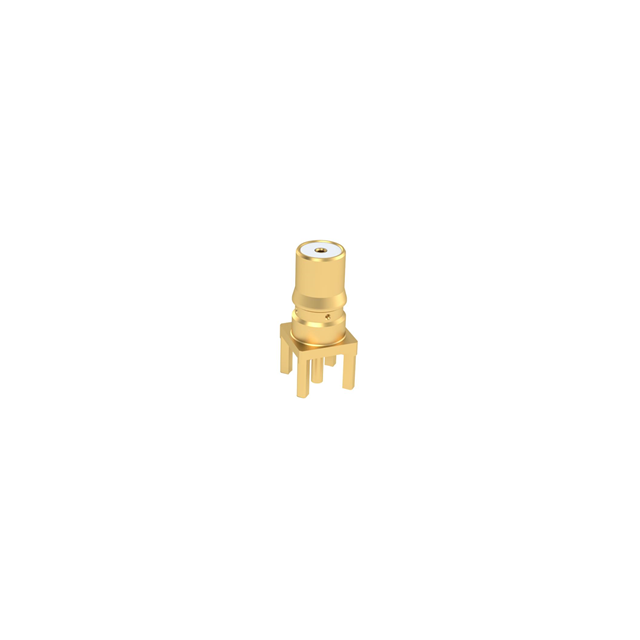

QMA F STR PCB C100

Search across all available documentation for this part.

Active

Radiall USA, Inc.

QMA F STR PCB C100

Technical Specifications

Parameters and characteristics for this part

Specification	R123426003

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	Gold
Impedance	50 Ohms
Mounting Type	Through Hole
Number of Ports	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Shield Termination	Solder
Voltage Rating	500 V

Part	Dielectric Material	Housing Color	Connector Type	Number of Ports	Shield Termination	Body Finish	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Material	Body Material	Frequency - Max [Max]	Mounting Type	Voltage Rating	Contact Termination	Fastening Type	Center Contact Plating	Impedance
Radiall USA, Inc. R123426003	Polytetrafluoroethylene (PTFE)	Gold	Male Pin Plug	1	Solder	Gold	-40 °C	105 ░C	Beryllium Copper	Brass	6000 MHz	Through Hole	500 V	Solder	Snap-On	Gold	50 Ohms
Radiall USA, Inc. R123426003W	Polytetrafluoroethylene (PTFE)	Gold	Female Socket Receptacle	1	Solder	Gold	-40 °C	105 ░C	Beryllium Copper	Brass	6000 MHz	Through Hole	500 V	Solder	Snap-On	Gold	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

QMA Connector Plug, Male Pin 50 Ohms Through Hole Solder
