C2528A.41.10
ActivePrysmian Group

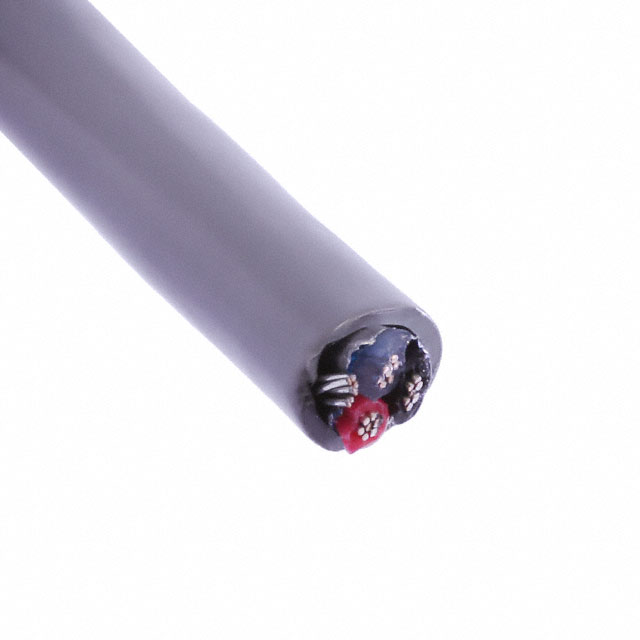

CABLE 3COND 20AWG GRAY SHLD
Deep-Dive with AI
Search across all available documentation for this part.
C2528A.41.10
ActivePrysmian Group
CABLE 3COND 20AWG GRAY SHLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C2528A.41.10 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Polyethylene (PE) |
| Conductor Material | Copper, Annealed Tinned |
| Conductor Strand [custom] | 28 |
| Conductor Strand [custom] | 7 |
| Features | Drain Wire |
| Jacket (Insulation) Diameter [diameter] | 5.33 mm |
| Jacket (Insulation) Diameter [diameter] | 0.21 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.762 mm |
| Jacket (Insulation) Thickness | 0.03 in |
| Jacket Color | Gray |
| Length | 15.24 m, 304.8 m |
| Length | 1000 ft |
| Length [x] | 50 ft, 500 ' |
| Length [x] | 152.4 m |
| Number of Conductors | 3 |
| Ratings | ASTM B-33 |
| Shield Coverage | 100 % |
| Shield Material | Flexfoil® |
| Shield Type | Foil |
| Usage | Control, Communication |
| Voltage | 300 V |
| Wire Gauge | 20 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 451.52 | |
| 1 | $ 74.38 | |||
| 5 | $ 401.36 | |||
| 5 | $ 60.86 | |||
| 10 | $ 47.34 | |||
| 10 | $ 363.73 | |||
| Spool | 1000 | $ 0.69 | ||
| 2000 | $ 0.66 | |||
| 3000 | $ 0.64 | |||
| 5000 | $ 0.61 | |||
| 7000 | $ 0.60 | |||
| 10000 | $ 0.58 | |||
Description
General part information
C2528 Series
3 Conductor Multi-Conductor Cable Gray 20 AWG Foil 1000.0' (304.8m)
Documents
Technical documentation and resources
No documents available
