796286-1

Active

TE Connectivity AMP Connectors

CONN RCPT HSNG MALE 37POS PNL MT

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT HSNG MALE 37POS PNL MT

Technical Specifications

Parameters and characteristics for this part

Specification	796286-1

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp
Features	Backshell
Housing Color	Black
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Note	Contacts Not Included
Number of Positions	37
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Shell Size - Insert [Max]	37
Shell Size - Insert [Min]	23
Shielding	Unshielded
Type	For Male Pins

CONN RCPT HSNG MALE 37POS PNL MT

Part	Number of Positions	Ingress Protection	Contact Shape	Housing Color	Insert Material	Orientation	Shielding	Note	Mounting Feature	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Type	Features	Contact Type	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Material Flammability Rating	Contact Size
TE Connectivity AMP Connectors 796286-1	37	IP67 - Dust Tight, Waterproof	Circular	Black	Thermoplastic	Keyed	Unshielded	Contacts Not Included	Flange	Receptacle Housing	105 ░C	-55 °C	For Male Pins	Backshell	Crimp	23	37	UL94 V-0	16

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

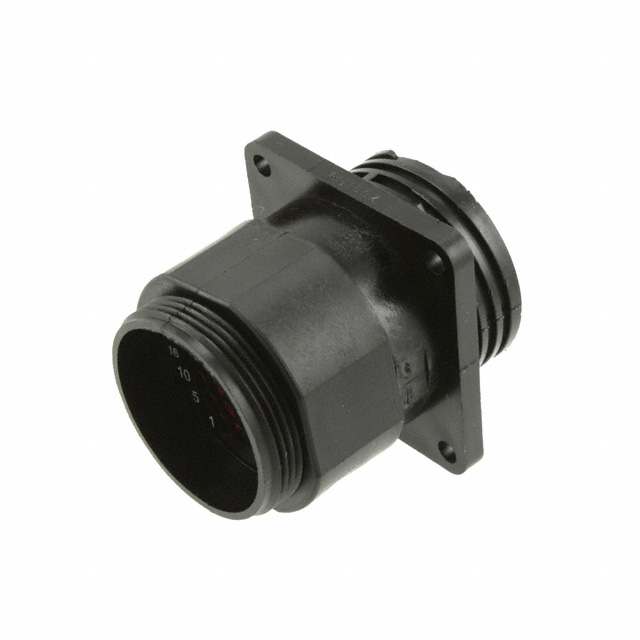

37 Position Circular Connector Receptacle Housing Panel Mount Backshell
