BZH01/Z0000/11

Active

BULGIN LIMITED

UN-FILTERED IEC POWER ENTRY MODULE, IEC C14, GENERAL PURPOSE, 10 A, 250 VAC, 1-POLE SWITCH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN Datasheet

BZH01/Z0000/11

Active

BULGIN LIMITED

UN-FILTERED IEC POWER ENTRY MODULE, IEC C14, GENERAL PURPOSE, 10 A, 250 VAC, 1-POLE SWITCH

Deep-Dive with AI

DocumentsTechnical Data Sheet EN Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 19.24
		10	$ 16.67
		25	$ 15.80
		50	$ 15.57
		100	$ 13.74
		250	$ 12.82
		500	$ 12.55
Newark	Each	1	$ 21.16
		10	$ 18.79
		100	$ 17.75
		250	$ 16.99
		500	$ 16.01
		1000	$ 15.11
		2500	$ 14.69
		5000	$ 13.92

Description

General part information

BZH01/Z Series

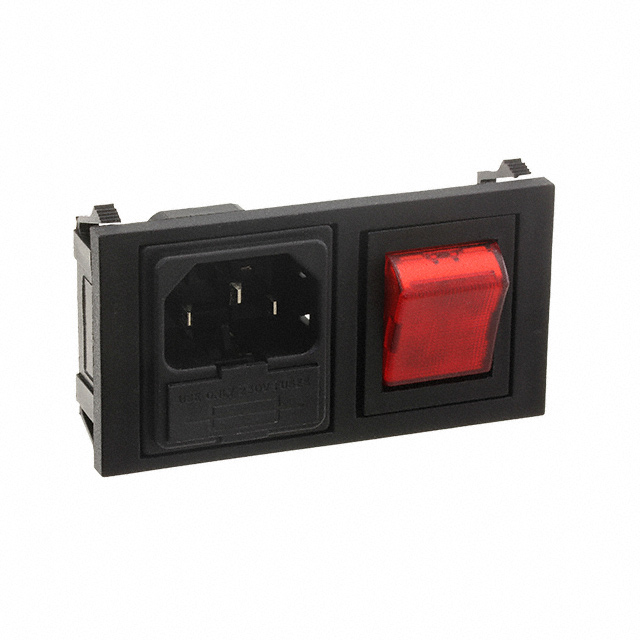

The BZH01/Z0000/11 is a POLYSNAP® horizontal Power Inlet Module with double-pole red neon switch variations and quick-connect contact termination, 10A/250VAC rated, PF0011/63 single fused C14 power inlet (cold condition) with 6.3 or 2.8mm tabs.

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet

Specification	BZH01/Z0000/11	BZH01/Z Series

Accomodates a Fuse	True	True
Approval Agency	VDE, CSA, UL, ENEC	VDE, CSA, UL, ENEC
Connector Style	IEC 320-C14	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A	10 A
Filter Type	Unfiltered - Commercial	Unfiltered - Commercial
Fuse Holder, Drawer	Fuse Holder	Fuse Holder
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	72 mm	60.3 - 72 mm
Panel Cutout Dimensions [y]	34.4 mm	34.4 mm
Panel Thickness [Max]	3 mm	3 mm
Panel Thickness [Max]	0.118 in	0.118 in
Panel Thickness [Min]	0.039 in	0.039 in
Panel Thickness [Min]	1 mm	1 mm
Switch Features	Switch On-Off	Switch On-Off
Termination	0.25 in	0.25 in
Termination	6.3 mm	6.3 mm
Termination	Quick Connect	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC	250 VAC

Part	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Mounting Type	Current Rating - Appliance Inlet	Voltage Rating - Appliance Inlet	Switch Features	Termination	Termination	Termination	Fuse Holder, Drawer	Material Flammability Rating	Panel Thickness [Max]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Min]	Approval Agency	Connector Style	Connector Type	Filter Type
BULGIN LIMITED BZH01/Z0000/11	34.4 mm	72 mm	Panel Mount, Snap-In	10 A	250 VAC	Switch On-Off	0.25 in	6.3 mm	Quick Connect	Fuse Holder	UL94 V-0	3 mm	0.118 in	0.039 in	1 mm	CSA, ENEC, UL, VDE	IEC 320-C14	Receptacle, Male Blades - Module	Unfiltered - Commercial
BULGIN LIMITED BZH01/Z0000/01	34.4 mm	60.3 mm	Panel Mount, Snap-In	10 A	250 VAC	Switch On-Off	0.25 in	6.3 mm	Quick Connect	Fuse Holder	UL94 V-0	3 mm	0.118 in	0.039 in	1 mm	CSA, ENEC, UL, VDE	IEC 320-C14	Receptacle, Male Blades - Module	Unfiltered - Commercial
BULGIN LIMITED BZH01/Z0000/10	34.4 mm	72 mm	Panel Mount, Snap-In	10 A	250 VAC	Switch On-Off	0.25 in	6.3 mm	Quick Connect	Fuse Holder	UL94 V-0	3 mm	0.118 in	0.039 in	1 mm	CSA, ENEC, UL, VDE	IEC 320-C14	Receptacle, Male Blades - Module	Unfiltered - Commercial
