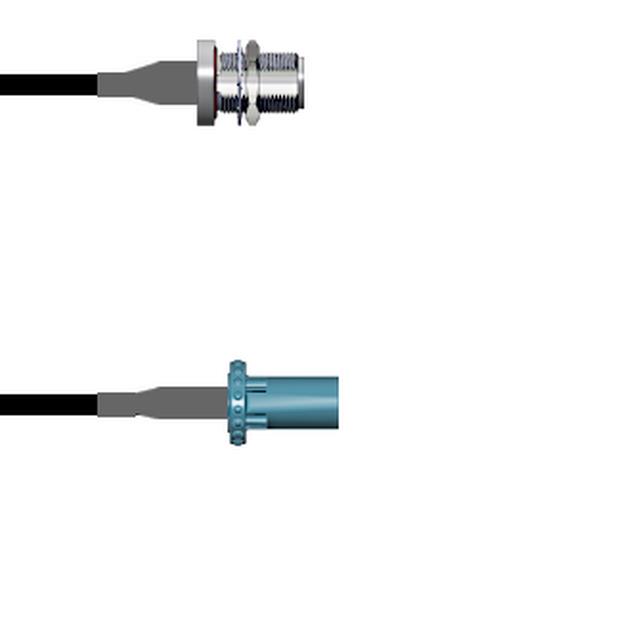

Q-1T05A0003060i

Active

Amphenol Custom Cable

CBL ASSY NTYPE-FAKRA JACK-PLG 5'

Deep-Dive with AI

Search across all available documentation for this part.

Q-1T05A0003060i

Active

Amphenol Custom Cable

CBL ASSY NTYPE-FAKRA JACK-PLG 5'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-1T05A0003060i

1st Connector	N-Type Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	Fakra Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	3 GHz
Length	5 ft
Length	1.5 m
Length	5 '
Overall Impedance	50 Ohms
Style	N-Type to Fakra

Q-1T05A0 Series

Part	1st Connector Mounting Feature	1st Connector	Cable Type	Features	2nd Contact Gender	Color	2nd Connector Mounting Type	1st Connector Mounting Type	Overall Impedance	1st Contact Gender	Style	Frequency - Max [Max]	Length	Length	Length	2nd Connector
Amphenol Custom Cable Q-1T05A00052.5M	Bulkhead - Front Side Nut	N-Type Jack	RG-316	Shielded	Male	Copper	Free Hanging (In-Line)	Panel Mount	50 Ohms	Female	N-Type to Fakra	3 GHz	8.2 '	98.4 in	2.5 m	Fakra Plug
Amphenol Custom Cable Q-1T05A0005036i	Bulkhead - Front Side Nut	N-Type Jack	RG-316	Shielded	Male	Copper	Free Hanging (In-Line)	Panel Mount	50 Ohms	Female	N-Type to Fakra	3 GHz		36 in	91.44 cm	Fakra Plug
Amphenol Custom Cable Q-1T05A0003108i	Bulkhead - Front Side Nut	N-Type Jack	RG-174	Shielded	Male	Black	Free Hanging (In-Line)	Panel Mount	50 Ohms	Female	N-Type to Fakra	3 GHz	9 ft	108 in	2.7 m	Fakra Plug
Amphenol Custom Cable Q-1T05A0005108i	Bulkhead - Front Side Nut	N-Type Jack	RG-316	Shielded	Male	Copper	Free Hanging (In-Line)	Panel Mount	50 Ohms	Female	N-Type to Fakra	3 GHz	9 ft	108 in	2.7 m	Fakra Plug
Amphenol Custom Cable Q-1T05A0003002M	Bulkhead - Front Side Nut	N-Type Jack	RG-174	Shielded	Male	Black	Free Hanging (In-Line)	Panel Mount	50 Ohms	Female	N-Type to Fakra	3 GHz	6.6 ft	78.7 in	2 m	Fakra Plug
Amphenol Custom Cable Q-1T05A0003006i	Bulkhead - Front Side Nut	N-Type Jack	RG-174	Shielded	Male	Black	Free Hanging (In-Line)	Panel Mount	50 Ohms	Female	N-Type to Fakra	3 GHz		6 in	152.4 mm	Fakra Plug
Amphenol Custom Cable Q-1T05A0005072i	Bulkhead - Front Side Nut	N-Type Jack	RG-316	Shielded	Male	Copper	Free Hanging (In-Line)	Panel Mount	50 Ohms	Female	N-Type to Fakra	3 GHz	6 ft	72 in	1.8 m	Fakra Plug
Amphenol Custom Cable Q-1T05A0005003i	Bulkhead - Front Side Nut	N-Type Jack	RG-316	Shielded	Male	Copper	Free Hanging (In-Line)	Panel Mount	50 Ohms	Female	N-Type to Fakra	3 GHz		3 in	76.2 mm	Fakra Plug
Amphenol Custom Cable Q-1T05A0003060i	Bulkhead - Front Side Nut	N-Type Jack	RG-174	Shielded	Male	Black	Free Hanging (In-Line)	Panel Mount	50 Ohms	Female	N-Type to Fakra	3 GHz	5 ft	5 '	1.5 m	Fakra Plug
Amphenol Custom Cable Q-1T05A0005003M	Bulkhead - Front Side Nut	N-Type Jack	RG-316	Shielded	Male	Copper	Free Hanging (In-Line)	Panel Mount	50 Ohms	Female	N-Type to Fakra	3 GHz	9.8 '	118.1 in	3 m	Fakra Plug

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 58.46
		25	$ 57.33
		50	$ 56.20
		100	$ 55.07
		250	$ 53.94

Description

General part information

Q-1T05A0 Series

Cable Assembly Coaxial N-Type to Fakra RG-174 60.0" (1.5m) 5.0'

Documents

Technical documentation and resources

No documents available
