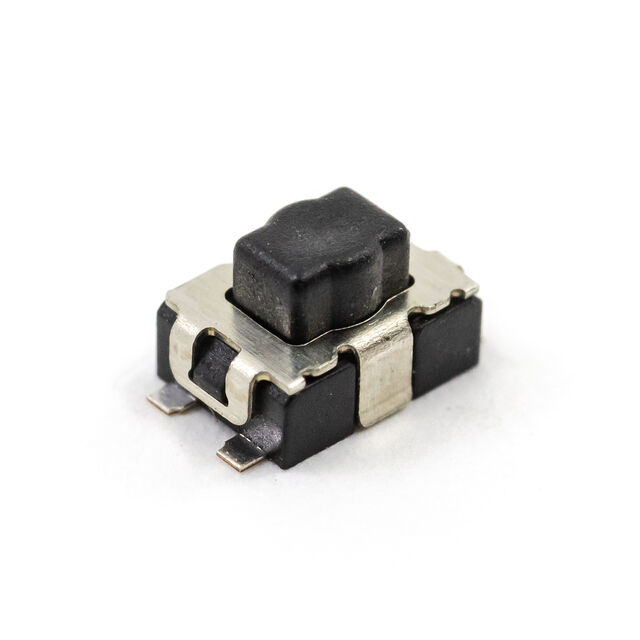

TL6330BF200Q

Active

E-Switch

SWITCH TACTILE SPST-NO 0.05A 32V

Search across all available documentation for this part.

Active

E-Switch

SWITCH TACTILE SPST-NO 0.05A 32V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	12000	$ 0.38

General part information

Tactile Switch SPST-NO Top Actuated Surface Mount

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	TL6330BF200Q	TL6330 Series

Actuator Height off PCB, Vertical	-	1.9 mm
Actuator Height off PCB, Vertical [z]	2.5 mm	2.5 mm
Actuator Orientation	Top Actuated	Top Actuated
Actuator Type	Rectangular Button	Rectangular Button
Circuit	SPST-NO	SPST-NO
Contact Rating @ Voltage	0.05 A	0.05 A
Illumination	Non-Illuminated	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Mechanical Life	200000 Cycles	200000 Cycles
Mounting Type	Surface Mount	Surface Mount
Operating Force	200 gf	200 - 400 gf
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Outline [x]	4.6 mm	4.6 mm
Outline [y]	2.8 mm	2.8 mm
Switch Function	Off-Mom	Off-Mom
Switch Travel	0.25 mm	0.25 mm
Termination Style	SMD (SMT) Tab	SMD (SMT) Tab

SWITCH TACTILE SPST-NO 0.05A 32V

Part	Termination Style	Ingress Protection	Actuator Height off PCB, Vertical	Mounting Type	Illumination	Mechanical Life	Contact Rating @ Voltage	Outline [x]	Outline [y]	Actuator Orientation	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Switch Travel	Operating Force	Actuator Type	Circuit	Actuator Height off PCB, Vertical [z]
E-Switch TL6330AF200Q	SMD (SMT) Tab	IP67 - Dust Tight, Waterproof	1.9 mm	Surface Mount	Non-Illuminated	200000 Cycles	0.05 A	4.6 mm	2.8 mm	Top Actuated	Off-Mom	85 °C	-40 °C	0.25 mm	200 gf	Rectangular Button	SPST-NO
E-Switch TL6330BF200Q	SMD (SMT) Tab	IP67 - Dust Tight, Waterproof		Surface Mount	Non-Illuminated	200000 Cycles	0.05 A	4.6 mm	2.8 mm	Top Actuated	Off-Mom	85 °C	-40 °C	0.25 mm	200 gf	Rectangular Button	SPST-NO	2.5 mm
E-Switch TL6330BF300Q	SMD (SMT) Tab	IP67 - Dust Tight, Waterproof		Surface Mount	Non-Illuminated	200000 Cycles	0.05 A	4.6 mm	2.8 mm	Top Actuated	Off-Mom	85 °C	-40 °C	0.25 mm	300 gf	Rectangular Button	SPST-NO	2.5 mm
E-Switch TL6330AF400Q	SMD (SMT) Tab	IP67 - Dust Tight, Waterproof	1.9 mm	Surface Mount	Non-Illuminated	200000 Cycles	0.05 A	4.6 mm	2.8 mm	Top Actuated	Off-Mom	85 °C	-40 °C	0.25 mm	400 gf	Rectangular Button	SPST-NO
