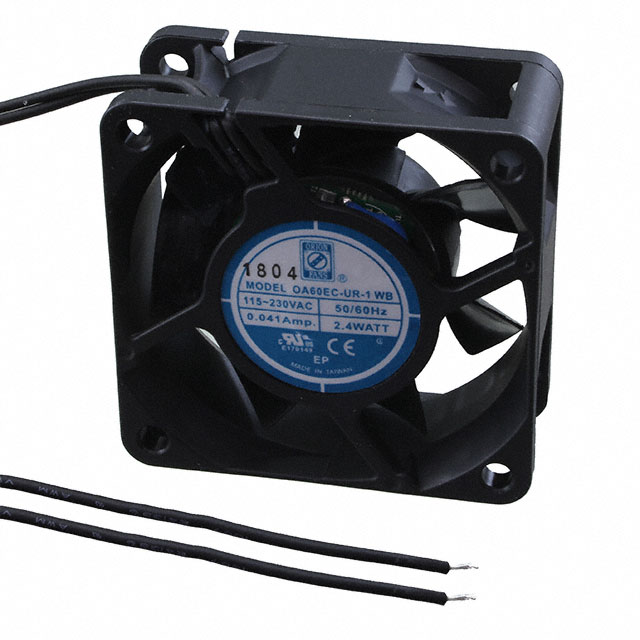

OA60EC-UR-1WB
ActiveOrion Fans
FAN EC 60X25MM 95-264VAC
Deep-Dive with AI
Search across all available documentation for this part.
OA60EC-UR-1WB
ActiveOrion Fans
FAN EC 60X25MM 95-264VAC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | OA60EC-UR-1WB |
|---|---|
| Air Flow | 0.546 m³/min |
| Air Flow | 19.5 CFM |
| Approval Agency | TUV, CE, cURus, UR |
| Bearing Type | Ball |
| Current Rating (Amps) | 50 mA |
| Fan Type | Tubeaxial |
| Features | Thermal Overload Protector (TOP), Electronic Commutation (EC) |
| Lifetime @ Temp. | 50000 Hrs |
| Material - Blade | Polybutylene Terephthalate (PBT) |
| Noise | 31 dB(A) |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 °C |
| Operating Temperature [Min] | -20 C |
| Power (Watts) | 2.4 W |
| RPM | 3950 RPM |
| Size / Dimension [x] | 60 mm |
| Size / Dimension [y] | 60 mm |
| Static Pressure | 42.3 Pa |
| Static Pressure | 0.17 in H2O |
| Termination | 2 Wire Leads |
| Voltage - Rated [Max] | 264 VAC |
| Voltage - Rated [Min] | 95 VAC |
| Weight | 60.33 g |
| Weight | 0.133 lb |
| Width [y] | 25 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 42.46 | |
| 10 | $ 38.78 | |||
| 25 | $ 37.31 | |||
| 50 | $ 34.85 | |||
| 100 | $ 32.15 | |||
| 250 | $ 31.66 | |||
Description
General part information
OA60EC Series
Fan Tubeaxial 95 ~ 264VAC Square - 60mm L x 60mm H Ball 19.5 CFM (0.546m³/min) 2 Wire Leads
