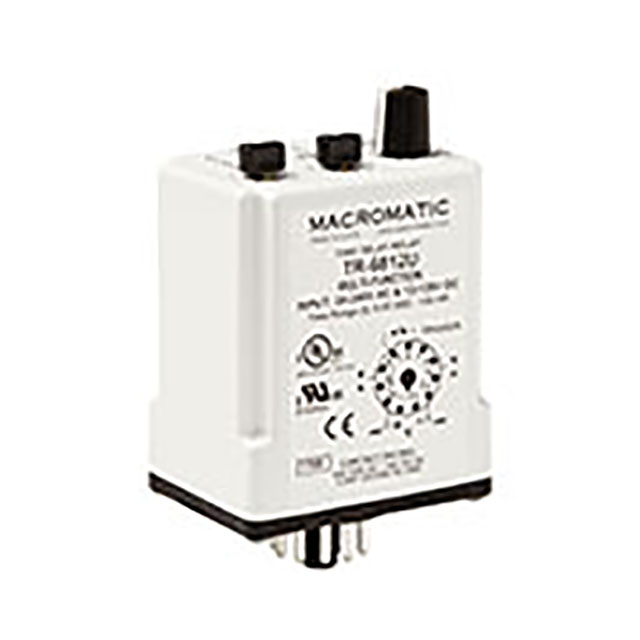

TR-6812U

Active

Macromatic Industrial Controls

RELAY TIME DELAY 100HR 10A 240V

Search across all available documentation for this part.

Active

Macromatic Industrial Controls

RELAY TIME DELAY 100HR 10A 240V

Technical Specifications

Parameters and characteristics for this part

Specification	TR-6812U

Circuit	DPDT (2 Form C)
Contact Rating @ Voltage	240 VAC, 30 VDC, 10 A
Delay Time [Max]	100 Hrs
Delay Time [Min]	0.05 Sec
Function	Programmable (Multi-Function)
Mounting Type	Socketable
Relay Type	Mechanical Relay
Termination Style	Plug In, 11 Pin (Octal)
Timing Adjustment Method	Hand Dial
Timing Initiate Method	Input Voltage
Voltage - Supply [Max]	240 VAC, 125 VDC
Voltage - Supply [Min]	24 VAC, 12 V

RELAY TIME DELAY 100HR 10A 240V

Part	Contact Rating @ Voltage	Timing Initiate Method	Timing Adjustment Method	Circuit	Function	Delay Time [Max]	Delay Time [Min]	Termination Style	Relay Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Mounting Type
Macromatic Industrial Controls TR-6812U	10 A, 30 VDC, 240 VAC	Input Voltage	Hand Dial	DPDT (2 Form C)	Programmable (Multi-Function)	100 Hrs	0.05 Sec	Plug In, 11 Pin (Octal)	Mechanical Relay	125 VDC, 240 VAC	12 V, 24 VAC	Socketable

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 114.84

General part information

Programmable (Multi-Function) Time Delay Relay DPDT (2 Form C) 0.05 Sec ~ 100 Hrs Delay 10A @ 240VAC/30VDC Socketable
