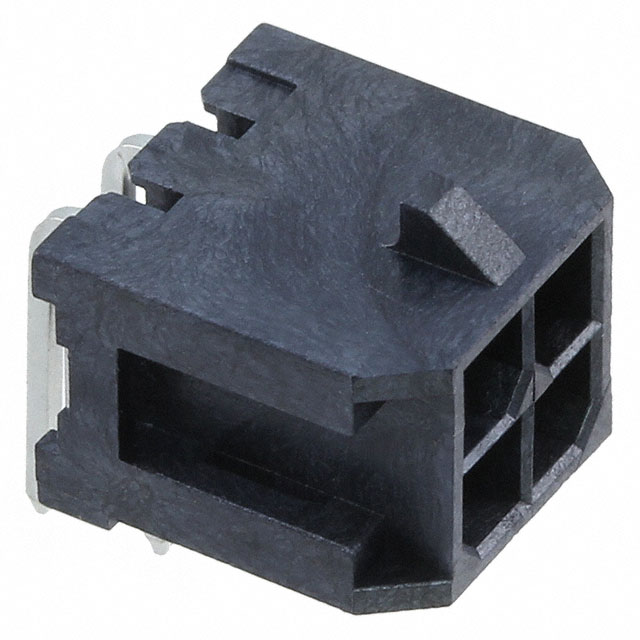

G881A04001TEU

Active

Amphenol ICC (Commercial Products)

CONN HEADER R/A 4POS 3MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

G881A04001TEU

Active

Amphenol ICC (Commercial Products)

CONN HEADER R/A 4POS 3MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	G881A04001TEU

Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	2.54 çm
Contact Finish Thickness - Mating	100 çin
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Post	3.2 mm
Contact Length - Post [x]	0.126 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Locking Ramp
Insulation Color	Black
Insulation Height	6.8 mm
Insulation Height	0.268 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.118 in
Pitch - Mating	3 mm
Row Spacing - Mating	3 mm
Row Spacing - Mating	0.118 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VDC

G881A Series

Part	Voltage Rating	Connector Type	Style	Mounting Type	Fastening Type	Contact Finish - Post	Number of Positions Loaded	Shrouding	Contact Shape	Features	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Contact Length - Post	Contact Length - Post [x]	Number of Rows	Pitch - Mating	Pitch - Mating	Insulation Material	Number of Positions	Material Flammability Rating	Row Spacing - Mating	Row Spacing - Mating	Contact Type	Contact Material	Insulation Color	Insulation Height [z]	Insulation Height [z]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Height	Insulation Height	Number of Positions
Amphenol ICC (Commercial Products) G881A06102TEU	250 VDC	Header	Board to Cable/Wire	Through Hole	Locking Ramp	Tin	All	Shrouded - 4 Wall	Square	Board Guide	-40 °C	105 ░C	Kinked Pin Solder	3.2 mm	0.126 in	2	0.118 in	3 mm	Liquid Crystal Polymer (LCP)	6	UL94 V-0	3 mm	0.118 in	Male Pin	Copper Alloy	Black	9.91 mm	0.39 in
Amphenol ICC (Commercial Products) G881A08102T3EU	250 VDC	Header	Board to Cable/Wire	Through Hole	Locking Ramp	Tin	All	Shrouded - 4 Wall	Square	Board Guide	-40 °C	105 ░C	Solder	3.2 mm	0.126 in	2	0.118 in	3 mm	Liquid Crystal Polymer (LCP)	8	UL94 V-0	3 mm	0.118 in	Male Pin	Copper Alloy	Black	9.91 mm	0.39 in
Amphenol ICC (Commercial Products) G881A22102T3EU	250 VDC	Header	Board to Cable/Wire	Through Hole	Locking Ramp	Tin	All	Shrouded - 4 Wall	Square	Board Guide	-40 °C	105 ░C	Solder	3.2 mm	0.126 in	2	0.118 in	3 mm	Liquid Crystal Polymer (LCP)	22 positions	UL94 V-0	3 mm	0.118 in	Male Pin	Copper Alloy	Black	9.91 mm	0.39 in
Amphenol ICC (Commercial Products) G881A04102TEU	250 VDC	Header	Board to Cable/Wire	Through Hole	Locking Ramp	Tin	All	Shrouded - 4 Wall	Square	Board Guide	-40 °C	105 ░C	Kinked Pin Solder	3.2 mm	0.126 in	2	0.118 in	3 mm	Liquid Crystal Polymer (LCP)	4	UL94 V-0	3 mm	0.118 in	Male Pin	Copper Alloy	Black	9.91 mm	0.39 in
Amphenol ICC (Commercial Products) G881A20102TEU	250 VDC	Header	Board to Cable/Wire	Through Hole	Locking Ramp	Tin	All	Shrouded - 4 Wall	Square	Board Guide	-40 °C	105 ░C	Kinked Pin Solder	3.2 mm	0.126 in	2	0.118 in	3 mm	Liquid Crystal Polymer (LCP)	20	UL94 V-0	3 mm	0.118 in	Male Pin	Copper Alloy	Black	9.91 mm	0.39 in
Amphenol ICC (Commercial Products) G881A04001TEU	250 VDC	Header	Board to Cable/Wire	Through Hole Right Angle	Locking Ramp	Tin	All	Shrouded - 4 Wall	Square		-40 °C	105 ░C	Solder	3.2 mm	0.126 in	2	0.118 in	3 mm	Liquid Crystal Polymer (LCP)	4	UL94 V-0	3 mm	0.118 in	Male Pin	Copper Alloy	Black			2.54 çm	100 çin	2.54 µm	100 µin	6.8 mm	0.268 in
Amphenol ICC (Commercial Products) G881A16102T3EU	250 VDC	Header	Board to Cable/Wire	Through Hole	Locking Ramp	Tin	All	Shrouded - 4 Wall	Square	Board Guide	-40 °C	105 ░C	Solder	3.2 mm	0.126 in	2	0.118 in	3 mm	Liquid Crystal Polymer (LCP)		UL94 V-0	3 mm	0.118 in	Male Pin	Copper Alloy	Black	9.91 mm	0.39 in							16
Amphenol ICC (Commercial Products) G881A02102TEU	250 VDC	Header	Board to Cable/Wire	Through Hole	Locking Ramp	Tin	All	Shrouded - 4 Wall	Square	Board Guide	-40 °C	105 ░C	Kinked Pin Solder	3.2 mm	0.126 in	2			Liquid Crystal Polymer (LCP)	2	UL94 V-0	3 mm	0.118 in	Male Pin	Copper Alloy	Black	9.91 mm	0.39 in
Amphenol ICC (Commercial Products) G881A22001TEU		Header	Board to Cable/Wire	Through Hole Right Angle	Locking Ramp	Tin	All	Shrouded - 4 Wall	Square				Solder	3.2 mm	0.126 in	2	0.118 in	3 mm	Liquid Crystal Polymer (LCP)	22 positions	UL94 V-0	3 mm	0.118 in	Male Pin	Copper Alloy	Black			2.54 çm	100 çin	2.54 µm	100 µin	6.8 mm	0.268 in
Amphenol ICC (Commercial Products) G881A12001TEU		Header	Board to Cable/Wire	Through Hole Right Angle	Locking Ramp	Tin	All	Shrouded - 4 Wall	Square				Solder	3.2 mm	0.126 in	2	0.118 in	3 mm	Liquid Crystal Polymer (LCP)	12	UL94 V-0	3 mm	0.118 in	Male Pin	Copper Alloy	Black			2.54 çm	100 çin	2.54 µm	100 µin	6.8 mm	0.268 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 0.79
		10	$ 0.67
		80	$ 0.60
		615	$ 0.49
		1230	$ 0.44
		4920	$ 0.38
		10455	$ 0.36

Description

General part information

G881A Series

Connector Header Through Hole, Right Angle 4 position 0.118" (3.00mm)
