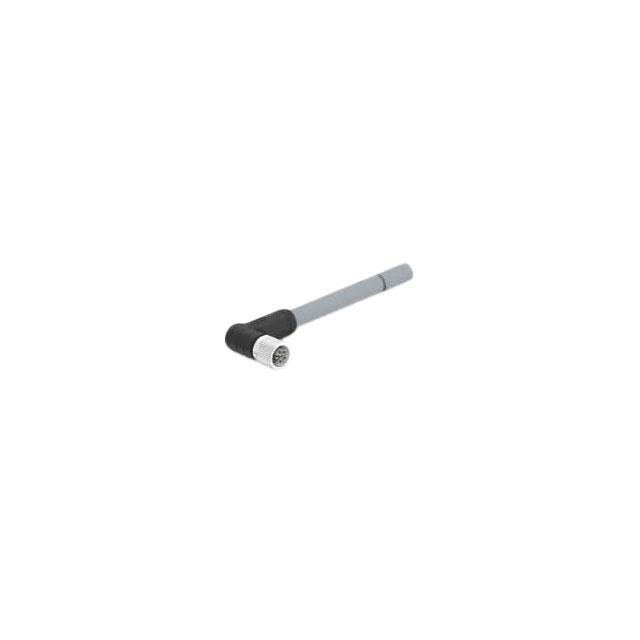

T41613B9L25-005
ActiveTE Connectivity AMP Connectors
CIRC CBL 5POS PLUG TO WIRE 16.4'
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
T41613B9L25-005
ActiveTE Connectivity AMP Connectors
CIRC CBL 5POS PLUG TO WIRE 16.4'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | T41613B9L25-005 | T41613 Series |
|---|---|---|
| 1st Connector Gender | Female Sockets | Female Sockets |
| 1st Connector Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| 1st Connector Number of Positions | 5 | 5 |
| 1st Connector Number of Positions Loaded | All | All |
| 1st Connector Orientation | - | A |
| 1st Connector Shell Size - Insert | M12 | M12 |
| 1st Connector Type | Plug | Plug |
| 2nd Connector Type | Wire Leads | Wire Leads |
| Assembly Configuration | Standard | Standard |
| Cable Material | Polyurethane (PUR) | Polyurethane (PUR), Polyvinyl Chloride (PVC) |
| Cable Type | Round | Round |
| Color | Gray | Gray, Black |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Length | - | 1 - 500 m |
| Length | - | 1.64 - 23 ft |
| Length | - | 4.92 ' |
| Length | - | 1.5 m |
| Shielding | Shielded | Shielded |
| Usage | Industrial Environments | Industrial Environments |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 92.25 | |
| 10 | $ 89.65 | |||
| 26 | $ 85.75 | |||
| 50 | $ 83.15 | |||
| 100 | $ 82.50 | |||
T41613 Series
CBL CIRC 5POS FEM TO WIRE 3.28'
| Part | 1st Connector Orientation | Cable Type | 1st Connector Gender | 2nd Connector Type | Shielding | 1st Connector Number of Positions | Cable Material | 1st Connector Number of Positions Loaded | 1st Connector Type | Assembly Configuration | Color | 1st Connector Shell Size - Insert | Length [x] | Length [x] | Usage | Ingress Protection | 1st Connector Mounting Type | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors T4161320005-002 | A | Round | Female Sockets | Wire Leads | Shielded | 5 | Polyurethane (PUR) | All | Plug | Standard | Gray | M12 | 1 m | 3.28 ft | Industrial Environments | IP67 - Dust Tight, Waterproof | Free Hanging (In-Line) | ||
TE Connectivity AMP Connectors T41613B9L25-004 | Round | Female Sockets | Wire Leads | Shielded | 5 | Polyurethane (PUR) | All | Plug | Standard | Gray | M12 | 3 m | 9.84 ft | Industrial Environments | IP67 - Dust Tight, Waterproof | Free Hanging (In-Line) | |||
TE Connectivity AMP Connectors T41613B9L25-001 | Round | Female Sockets | Wire Leads | Shielded | 5 | Polyurethane (PUR) | All | Plug | Standard | Gray | M12 | 500 mm | 1.64 ft | Industrial Environments | IP67 - Dust Tight, Waterproof | Free Hanging (In-Line) | |||
TE Connectivity AMP Connectors T4161310005-005 | A | Round | Female Sockets | Wire Leads | Shielded | 5 | Polyvinyl Chloride (PVC) | All | Plug | Standard | Black | M12 | Industrial Environments | IP67 - Dust Tight, Waterproof | Free Hanging (In-Line) | ||||
TE Connectivity AMP Connectors T41613B9L25-200 | Round | Female Sockets | Wire Leads | Shielded | 5 | Polyurethane (PUR) | All | Plug | Standard | Gray | M12 | Industrial Environments | IP67 - Dust Tight, Waterproof | Free Hanging (In-Line) | |||||
TE Connectivity AMP Connectors T41613B9L25-002 | Round | Female Sockets | Wire Leads | Shielded | 5 | Polyurethane (PUR) | All | Plug | Standard | Gray | M12 | 1 m | 3.28 ft | Industrial Environments | IP67 - Dust Tight, Waterproof | Free Hanging (In-Line) | |||
TE Connectivity AMP Connectors T41613B9L25-007 | Round | Female Sockets | Wire Leads | Shielded | 5 | Polyurethane (PUR) | All | Plug | Standard | Gray | M12 | Industrial Environments | IP67 - Dust Tight, Waterproof | Free Hanging (In-Line) | |||||
TE Connectivity AMP Connectors T41613B9L25-006 | Round | Female Sockets | Wire Leads | Shielded | 5 | Polyurethane (PUR) | All | Plug | Standard | Gray | M12 | 7 m | 23 ' | Industrial Environments | IP67 - Dust Tight, Waterproof | Free Hanging (In-Line) | |||
TE Connectivity AMP Connectors T41613B9L25-020 | Round | Female Sockets | Wire Leads | Shielded | 5 | Polyurethane (PUR) | All | Plug | Standard | Gray | M12 | 2 m | 6.56 ft | Industrial Environments | IP67 - Dust Tight, Waterproof | Free Hanging (In-Line) | |||
TE Connectivity AMP Connectors T41613B9L25-005 | Round | Female Sockets | Wire Leads | Shielded | 5 | Polyurethane (PUR) | All | Plug | Standard | Gray | M12 | Industrial Environments | IP67 - Dust Tight, Waterproof | Free Hanging (In-Line) | |||||
TE Connectivity AMP Connectors T41613B9L25-003 | Round | Female Sockets | Wire Leads | Shielded | 5 | Polyurethane (PUR) | All | Plug | Standard | Gray | M12 | Industrial Environments | IP67 - Dust Tight, Waterproof | Free Hanging (In-Line) | 4.92 ' | 1.5 m |
Description
General part information
T41613 Series
Circular Cable Assembly Shielded 16.40' (5.00m)
