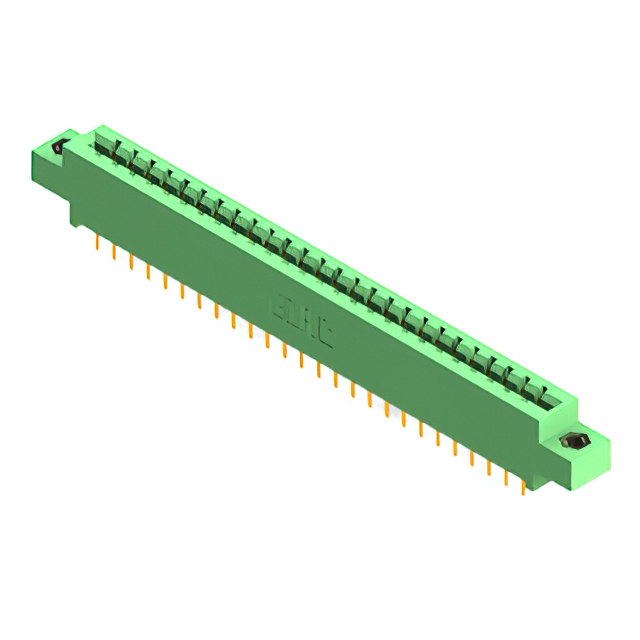

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 52 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
337-052-520-807
ActiveEDAC Inc.
CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 52 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 337-052-520-807 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | M3, Threaded Insert, Top Mount Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 52 |
| Number of Positions/Bay/Row [custom] | 26 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
337-052 Series
...
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Material - Insulation | Pitch [x] | Pitch [x] | Read Out | Contact Finish Thickness | Contact Finish Thickness | Termination Rows | Contact Type | Number of Positions/Bay/Row [custom] | Number of Positions | Color | Gender | Contact Material | Flange Feature | Contact Finish | Mounting Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Termination | Card Type | Number of Rows | Flange Feature | Flange Feature | Features | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | -40 °C | 105 ░C | Polyester Thermoplastic | 0.156 in | 3.96 mm | Dual | 10 Áin | 0.25 Ám | 2 | Cantilever | 26 | 52 | Green | Female | Copper Alloy | M3 Threaded Insert Top Mount Opening | Gold | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Non Specified - Dual Edge | 2 | |||||
EDAC Inc. | -40 °C | 105 ░C | Polyester Thermoplastic | 0.156 in | 3.96 mm | Dual | 10 Áin | 0.25 Ám | 2 | Cantilever | 26 | 52 | Green | Female | Copper Alloy | 4-40 Threaded Insert Top Mount Opening | Gold | Board Edge Straddle Mount | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder Eyelet(s) | Non Specified - Dual Edge | 2 | |||||
EDAC Inc. | -40 °C | 105 ░C | Polyester Thermoplastic | 0.156 in | 3.96 mm | Dual | 10 Áin | 0.25 Ám | 2 | Cantilever | 26 | 52 | Green | Female | Copper Alloy | Flush Mount M3 Threaded Insert Top Opening | Gold | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Non Specified - Dual Edge | 2 | |||||
EDAC Inc. | -40 °C | 105 ░C | Polyester Thermoplastic | 0.156 in | 3.96 mm | Dual | 10 Áin | 0.25 Ám | 2 | Cantilever | 26 | 52 | Green | Female | Copper Alloy | Gold | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Non Specified - Dual Edge | 2 | ||||||
EDAC Inc. | -40 °C | 105 ░C | Polyester Thermoplastic | 0.156 in | 3.96 mm | Dual | 10 Áin | 0.25 Ám | 2 | Cantilever | 26 | 52 | Green | Female | Copper Alloy | Side Mount Opening Unthreaded | Gold | Board Edge Straddle Mount | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder Eyelet(s) | Non Specified - Dual Edge | 2 | 3.25 mm | 0.128 in | Card Extender | ||
EDAC Inc. | -40 °C | 105 ░C | Polyester Thermoplastic | 0.156 in | 3.96 mm | Dual | 10 Áin | 0.25 Ám | 2 | Cantilever | 26 | 52 | Green | Female | Copper Alloy | M3 Threaded Insert Top Mount Opening | Gold | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder Eyelet(s) | Non Specified - Dual Edge | 2 | |||||
EDAC Inc. | -40 °C | 105 ░C | Polyester Thermoplastic | 0.156 in | 3.96 mm | Dual | 10 Áin | 0.25 Ám | 2 | Cantilever | 26 | 52 | Green | Female | Copper Alloy | 4-40 Threaded Insert Top Mount Opening | Gold | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Non Specified - Dual Edge | 2 | |||||
EDAC Inc. | -40 °C | 105 ░C | Polyester Thermoplastic | 0.156 in | 3.96 mm | Dual | 10 Áin | 0.25 Ám | 2 | Cantilever | 26 | 52 | Green | Female | Copper Alloy | Flush Mount Side Opening Unthreaded | Gold | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | Non Specified - Dual Edge | 2 | 3.25 mm | 0.128 " | |||
EDAC Inc. | -40 °C | 105 ░C | Polyester Thermoplastic | 0.156 in | 3.96 mm | Dual | 10 Áin | 0.25 Ám | 2 | Cantilever | 26 | 52 | Green | Female | Copper Alloy | M3 Threaded Insert Top Mount Opening | Gold | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | Non Specified - Dual Edge | 2 | |||||
EDAC Inc. | -40 °C | 105 ░C | Polyester Thermoplastic | 0.156 in | 3.96 mm | Dual | 10 Áin | 0.25 Ám | 2 | Cantilever | 26 | 52 | Green | Female | Copper Alloy | 4-40 Flush Mount Threaded Insert Top Opening | Gold | Through Hole Right Angle | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | Non Specified - Dual Edge | 2 | Card Guides |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
337-052 Series
52 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
