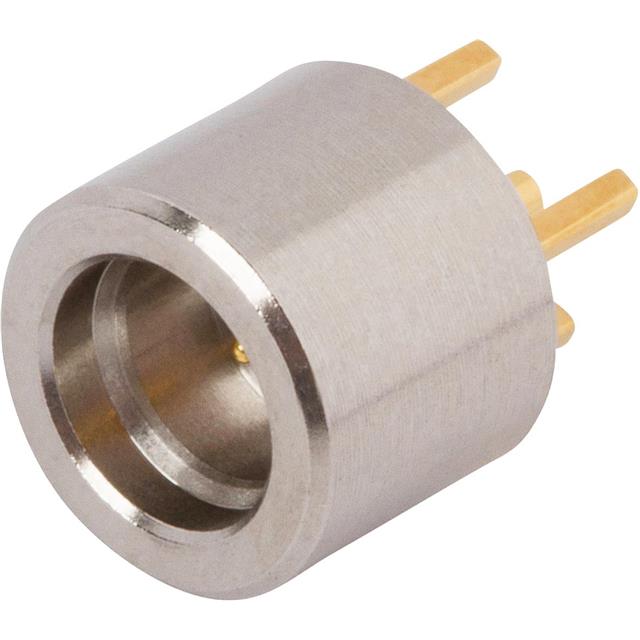

SF1287-6001

Active

Amphenol SV Microwave

SMP MALE PCB THRU-HOLE CONNECTOR, FD / INDIVIDUAL - TRAY (PACK FILL QTY: 100)

Search across all available documentation for this part.

Active

Amphenol SV Microwave

SMP MALE PCB THRU-HOLE CONNECTOR, FD / INDIVIDUAL - TRAY (PACK FILL QTY: 100)

Technical Specifications

Parameters and characteristics for this part

Specification	SF1287-6001

Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Features	Full Detent
Frequency - Max [Max]	40 GHz
Housing Color	Silver
Impedance	50 Ohms
Mounting Type	Through Hole
Number of Ports	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder

Part	Center Contact Material	Housing Color	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Frequency - Max [Max]	Body Material	Impedance	Number of Ports	Connector Type	Mounting Type	Contact Termination	Center Contact Plating	Fastening Type	Features	Shield Termination
Amphenol SV Microwave SF1287-6001-TD	Beryllium Copper	Silver	Polytetrafluoroethylene (PTFE)	-55 °C	125 °C	40 GHz	Stainless Steel	50 Ohms	1	Male Pin Plug	Through Hole	Solder	Gold	Snap-On	Full Detent	Solder
Amphenol SV Microwave SF1287-6001	Beryllium Copper	Silver	Polytetrafluoroethylene (PTFE)	-55 °C	125 °C	40 GHz	Stainless Steel	50 Ohms	1	Male Pin Plug	Through Hole	Solder	Gold	Snap-On	Full Detent	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMP Connector Plug, Male Pin 50 Ohms Through Hole Solder
