04J-AP-C02

Active

Grayhill Inc.

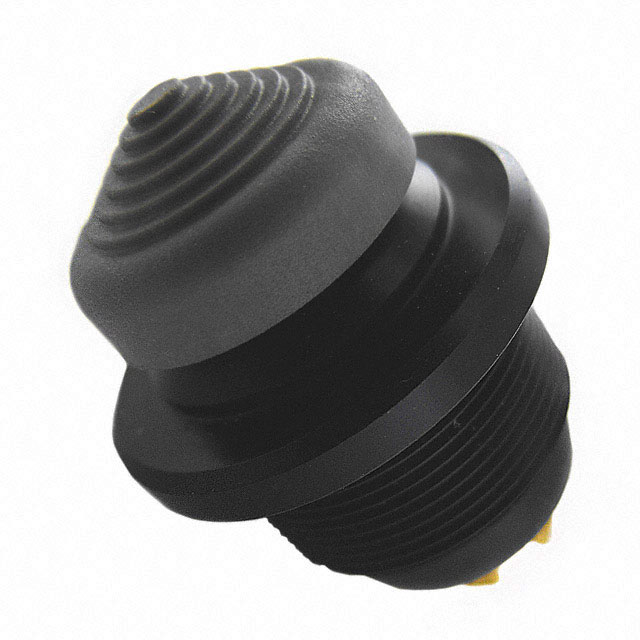

SWITCH NAV CONICAL 10MA 5V

Search across all available documentation for this part.

Active

Grayhill Inc.

SWITCH NAV CONICAL 10MA 5V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 127.59

General part information

Navigation Switch, 2 - Axis Digital (Mechanical Switch) Output

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	04J-AP-C02	04J-AP Series

Actuator Type	Conical	Castle, Conical
Contact Finish	Gold	Gold
Contact Material	Nickel	Nickel
Current Rating (Amps)	10 mA	2 - 10 A
Electrical Life	100000 Cycles	100000 Cycles
Features	-	Gray Actuator
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Mechanical Life	100000 Cycles	100000 Cycles
Operating Force	454 gf	454 gf
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-55 °C	-55 °C
Output	Digital (Mechanical Switch)	Digital (Mechanical Switch)
Switch Function	4-Way Directional, Center Select	4-Way Directional, Center Select
Termination Style	PC Pin	PC Pin
Type	2 Axis	2 Axis
Type	Navigation Switch	Navigation Switch
Voltage Rating - AC	-	115 V
Voltage Rating - DC	5 V	5 - 28 V

JOYSTICKS ACTIVE 4DIRECTION 2000MA PC PINS

Part	Ingress Protection	Operating Force	Voltage Rating - DC	Voltage Rating - AC	Termination Style	Type	Type	Current Rating (Amps)	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Electrical Life	Contact Finish	Output	Contact Material	Mechanical Life	Features
Grayhill Inc. 04J-AP-T01	IP68 - Dust Tight, Waterproof	454 gf	28 V	115 V	PC Pin	2 Axis	Navigation Switch	2 A	4-Way Directional, Center Select	85 °C	-55 °C	Castle	100000 Cycles	Gold	Digital (Mechanical Switch)	Nickel	100000 Cycles
Grayhill Inc. 04J-AP-C12	IP68 - Dust Tight, Waterproof	454 gf	5 V		PC Pin	2 Axis	Navigation Switch	10 mA	4-Way Directional, Center Select	85 °C	-55 °C	Conical	100000 Cycles	Gold	Digital (Mechanical Switch)	Nickel	100000 Cycles	Gray Actuator
Grayhill Inc. 04J-AP-C02	IP68 - Dust Tight, Waterproof	454 gf	5 V		PC Pin	2 Axis	Navigation Switch	10 mA	4-Way Directional, Center Select	85 °C	-55 °C	Conical	100000 Cycles	Gold	Digital (Mechanical Switch)	Nickel	100000 Cycles
