DS25CP102EVK/NOPB

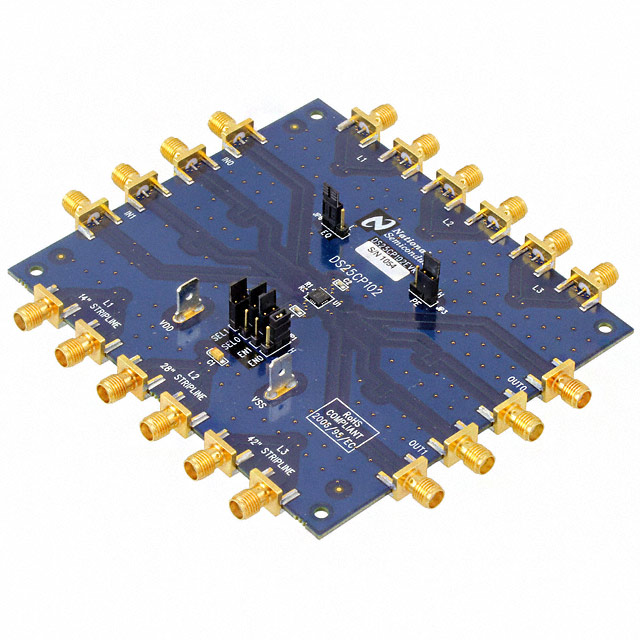

ActiveEVAL BOARD FOR DS25CP102TSQ
Deep-Dive with AI
Search across all available documentation for this part.
DS25CP102EVK/NOPB
ActiveEVAL BOARD FOR DS25CP102TSQ
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | DS25CP102EVK/NOPB | DS25CP102 Series |
|---|---|---|
| Circuit | - | 1 x 2:2 |
| Contents | Board(s) | Board(s) |
| Function | LVDS, Crosspoint Switch/Multiplexer | LVDS, Crosspoint Switch/Multiplexer |
| Grade | - | Automotive |
| Independent Circuits | - | 1 |
| Mounting Type | - | Surface Mount |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -40 °C |
| Package / Case | - | 16-WFQFN Exposed Pad |
| Qualification | - | AEC-Q100 |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 16-WQFN (4x4) |
| Type | Interface | Crosspoint Switch, Interface |
| Utilized IC / Part | DS25CP102TSQX, DS25CP102TSQ | DS25CP102TSQX, DS25CP102TSQ |
| Voltage - Supply | - | 3.6 V |
| Voltage - Supply | - | 3 V |
| Voltage Supply Source | - | Single Supply |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 238.80 | |
DS25CP102 Series
Auto 3.125-Gbps 2x2 LVDS crosspoint switch wih TX pre-emphasis and RX equalization
| Part | Type | Qualification | Circuit | Independent Circuits | Voltage Supply Source | Voltage - Supply [Max] | Voltage - Supply [Min] | Package / Case | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Grade | Supplier Device Package | Contents | Utilized IC / Part | Supplied Contents | Function |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments DS25CP102QSQX/NOPB | Crosspoint Switch | AEC-Q100 | 1 x 2:2 | 1 | Single Supply | 3.6 V | 3 V | 16-WFQFN Exposed Pad | Surface Mount | 85 °C | -40 °C | Automotive | 16-WQFN (4x4) | ||||
Texas Instruments DS25CP102TSQX/NOPB | Crosspoint Switch | 1 x 2:2 | 1 | Single Supply | 3.6 V | 3 V | 16-WFQFN Exposed Pad | Surface Mount | 85 °C | -40 °C | 16-WQFN (4x4) | ||||||
Texas Instruments DS25CP102EVK/NOPB | Interface | Board(s) | DS25CP102TSQ, DS25CP102TSQX | Board(s) | Crosspoint Switch/Multiplexer, LVDS | ||||||||||||
Texas Instruments DS25CP102TSQ/NOPB | Crosspoint Switch | 1 x 2:2 | 1 | Single Supply | 3.6 V | 3 V | 16-WFQFN Exposed Pad | Surface Mount | 85 °C | -40 °C | 16-WQFN (4x4) | ||||||
Texas Instruments DS25CP102QSQ/NOPB | Crosspoint Switch | AEC-Q100 | 1 x 2:2 | 1 | Single Supply | 3.6 V | 3 V | 16-WFQFN Exposed Pad | Surface Mount | 85 °C | -40 °C | Automotive | 16-WQFN (4x4) |
Description
General part information
DS25CP102 Series
The DS25CP102Q is a 3.125 Gbps 2x2 LVDS crosspoint switch optimized for high-speed signal routing and switching over lossy FR-4 printed circuit board backplanes and balanced cables. Fully differential signal paths ensure exceptional signal integrity and noise immunity. The non-blocking architecture allows connections of any input to any output or outputs.
The DS25CP102Q features two levels (Off and On) of transmit pre-emphasis (PE) and two levels (Off and On) of receive equalization (EQ).
Wide input common mode range allows the switch to accept signals with LVDS, CML and LVPECL levels; the output levels are LVDS. A very small package footprint requires a minimal space on the board while the flow-through pinout allows easy board layout. Each differential input and output is internally terminated with a 100Ω resistor to lower device insertion and return losses, reduce component count and further minimize board space.
