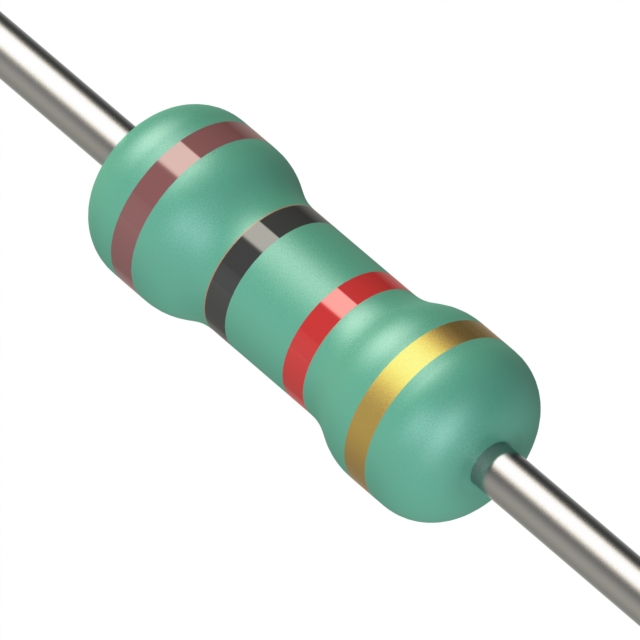

CFP1/4CT52R102J

Active

KOA Speer Electronics, Inc.

RES 1K OHM 5% 1/4W AXIAL

Search across all available documentation for this part.

Active

KOA Speer Electronics, Inc.

RES 1K OHM 5% 1/4W AXIAL

Technical Specifications

Parameters and characteristics for this part

Specification	CFP1/4CT52R102J

Composition	Carbon Film
Features	Safety, Flame Retardant Coating
Number of Terminations	2
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Package / Case	Axial
Power (Watts)	0.25 W
Power (Watts)	250 mW
Resistance	1000 Ohms
Size / Dimension [diameter]	0.091 "
Size / Dimension [diameter]	2.3 mm
Size / Dimension [z]	6.1 mm
Size / Dimension [z]	0.24 "
Supplier Device Package	Axial
Temperature Coefficient [Max]	350 ppm/°C
Temperature Coefficient [Min]	-450 ppm/°C
Tolerance	5 %

RES 1K OHM 5% 1/4W AXIAL

Part	Size / Dimension [diameter]	Size / Dimension [z]	Size / Dimension [diameter]	Size / Dimension [z]	Tolerance	Supplier Device Package	Power (Watts)	Power (Watts)	Number of Terminations	Package / Case	Resistance	Features	Operating Temperature [Max]	Operating Temperature [Min]	Composition	Temperature Coefficient [Max]	Temperature Coefficient [Min]
KOA Speer Electronics, Inc. CFP1/4CT52R102J	0.091 "	6.1 mm	2.3 mm	0.24 "	5 %	Axial	0.25 W	250 mW	2	Axial	1000 Ohms	Flame Retardant Coating, Safety	155 °C	-55 °C	Carbon Film	350 ppm/°C	-450 ppm/°C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1 kOhms ±5% 0.25W, 1/4W Through Hole Resistor Axial Flame Retardant Coating, Safety Carbon Film
