WLR089U0-I/RM
ActiveLORA TRANSCEIVER MODULE, I2C, LIN, SPI, USART, USB, 1.8 V TO 3.5 V
Deep-Dive with AI
Search across all available documentation for this part.
WLR089U0-I/RM
ActiveLORA TRANSCEIVER MODULE, I2C, LIN, SPI, USART, USB, 1.8 V TO 3.5 V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | WLR089U0-I/RM | WLR089U0 Series |
|---|---|---|
| - | - | |
| Antenna Type | Antenna Not Included, U.FL | Antenna Not Included, U.FL |
| Current - Receiving | 12.64 mA | 12.64 mA |
| Current - Transmitting [Max] | 114.68 mA | 114.68 mA |
| Current - Transmitting [Min] | 25.68 mA | 25.68 mA |
| Data Rate | 1 Mbps | 1 Mbps |
| Frequency [Max] | 928 MHz | 928 MHz |
| Frequency [Min] | 863 MHz | 863 MHz |
| Memory Size [custom] | 256 kB | 256 kB |
| Memory Size [custom] | 8 kB | 8 kB |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | Module | Module |
| Power - Output | 18.5 dBm | 18.5 dBm |
| Protocol | LoRa | LoRa |
| Sensitivity | -136 dBm | -136 dBm |
| Serial Interfaces | I2C, GPIO, ADC, SPI, USART, PCM | I2C, GPIO, ADC, SPI, USART, PCM |
| Voltage - Supply [Max] | 3.5 V | 3.5 V |
| Voltage - Supply [Min] | 1.8 V | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 16.25 | |
| 25 | $ 14.82 | |||
| Microchip Direct | TRAY | 1 | $ 16.25 | |
| 25 | $ 14.64 | |||
| 100 | $ 13.95 | |||
| 1000 | $ 12.50 | |||
| 5000 | $ 11.63 | |||
WLR089U0 Series
LORA TRANSCEIVER MODULE, I2C, LIN, SPI, USART, USB, 1.8 V TO 3.5 V
| Part | Power - Output | Data Rate | Sensitivity | Package / Case | Memory Size [custom] | Memory Size [custom] | Antenna Type | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Supply [Max] | Voltage - Supply [Min] | Mounting Type | Serial Interfaces | Frequency [Max] | Frequency [Min] | Current - Transmitting [Max] | Current - Transmitting [Min] | Protocol | Current - Receiving |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology WLR089U0-I/RM | |||||||||||||||||||
Microchip Technology WLR089U0-I/RM | 18.5 dBm | 1 Mbps | -136 dBm | Module | 256 kB | 8 kB | Antenna Not Included, U.FL | 85 °C | -40 °C | 3.5 V | 1.8 V | Surface Mount | ADC, GPIO, I2C, PCM, SPI, USART | 928 MHz | 863 MHz | 114.68 mA | 25.68 mA | LoRa | 12.64 mA |
Description
General part information
WLR089U0 Series

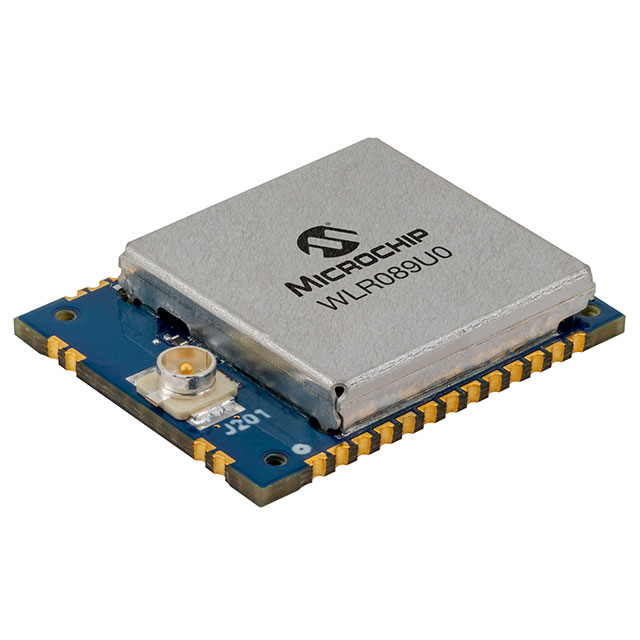

The WLR089U0 module is an ultra-low power, regulatory certified LoRa module based on the [ATSAMR34J18 LoRa IC](https://www.microchip.com/en-us/products/wireless-connectivity/lora-technology/sam-r34-r35). This standalone module includes a 32-bit ARM® Cortex®-M0+ processor and offers 256KB of Flash and 40KB of SRAM (8KB battery backed) in a compact 17 x 13.5 mm package. With ultra-low power sleep currents as low as 790nA, the WLR089U0 modules are ideal for battery powered remote sensor applications.
The highly configurable module peripherals include up to 4 SERCOMs (configurable as I2C/SPI /UART/LIN interfaces) with one in the low power domain, 7 12-bit ADC channels and 2 analog comparators. The module supports LoRa, FSK, MSK and OOK modulations and delivers up to 18.6 dBm TX power with an RX sensitivity down to -136 dBm.
The module operates from 863 to 928 MHz and is FCC, IC and RED certified. Supported by WLR089 Xplained Pro Evaluation Kit (EV23M25A), Atmel Studio and a detailed module reference design package, these modules highly simplify the development and accelerate the time to market for LoRa end-nodes.
