152250-0100-GB

Active

3M (TC)

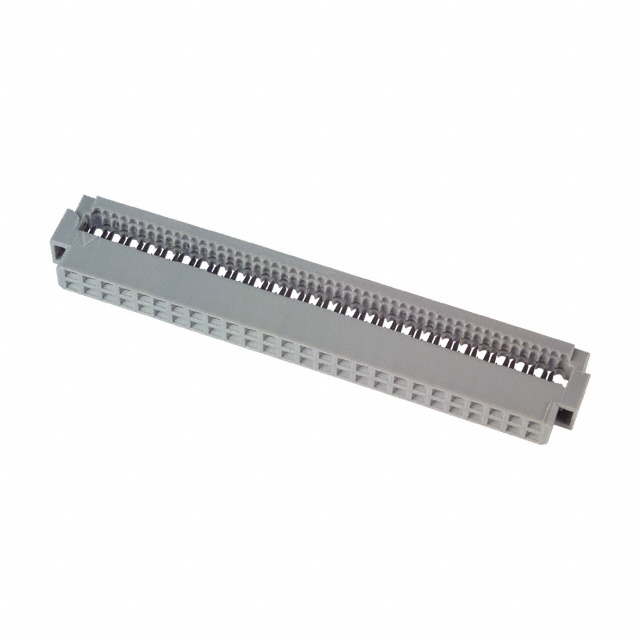

IDC CONNECTOR, IDC RECEPTACLE, FEMALE, 2 MM, 2 ROW, 50 CONTACTS, CABLE MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsInterconnect Catalog Datasheet +2

152250-0100-GB

Active

3M (TC)

IDC CONNECTOR, IDC RECEPTACLE, FEMALE, 2 MM, 2 ROW, 50 CONTACTS, CABLE MOUNT

Deep-Dive with AI

DocumentsInterconnect Catalog Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	152250-0100-GB

Cable Termination	IDC
Color	Gray
Connector Type	Receptacle
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Type	Female Socket
Features	Feed Through
Mounting Type	Free Hanging (In-Line)
Number of Positions	50
Number of Rows	2
Pitch [x]	0.079 in
Pitch [x]	2 mm
Row Spacing	2 mm
Row Spacing	0.079 in
Wire Gauge	28 AWG
Wire Type	Ribbon Cable

152250 Series

Part	Contact Finish	Contact Type	Pitch [x]	Pitch [x]	Mounting Type	Row Spacing	Row Spacing	Cable Termination	Connector Type	Wire Type	Wire Gauge	Contact Finish Thickness	Contact Finish Thickness	Features	Color	Number of Rows	Number of Positions
3M (TC) 152250-0100-GG	Gold	Female Socket	0.079 in	2 mm	Free Hanging (In-Line)	2 mm	0.079 in	IDC	Receptacle	Ribbon Cable	28 AWG	15 µin	0.38 µm	Feed Through	Gray	2	50
3M (TC) 152250-0013-GG	Gold	Female Socket	0.079 in	2 mm	Free Hanging (In-Line)	2 mm	0.079 in	IDC	Receptacle	Ribbon Cable	28 AWG	15 µin	0.38 µm	Closed End Polarizing Key Strain Relief	Gray	2	50
3M (TC) 152250-0113-GB	Gold	Female Socket	0.079 in	2 mm	Free Hanging (In-Line)	2 mm	0.079 in	IDC	Receptacle	Ribbon Cable	28 AWG	30 Áin	0.76 Ám	Feed Through Polarizing Key Strain Relief	Gray	2	50
3M (TC) 152250-0110-GB	Gold	Female Socket	0.079 in	2 mm	Free Hanging (In-Line)	2 mm	0.079 in	IDC	Receptacle	Ribbon Cable	28 AWG	30 Áin	0.76 Ám	Feed Through Polarizing Key	Gray	2	50
3M (TC) 152250-0110-GG	Gold	Female Socket	0.079 in	2 mm	Free Hanging (In-Line)	2 mm	0.079 in	IDC	Receptacle	Ribbon Cable	28 AWG	15 µin	0.38 µm	Feed Through Polarizing Key	Gray	2	50
3M (TC) 152250-0100-GB	Gold	Female Socket	0.079 in	2 mm	Free Hanging (In-Line)	2 mm	0.079 in	IDC	Receptacle	Ribbon Cable	28 AWG	30 Áin	0.76 Ám	Feed Through	Gray	2	50

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.23
		10	$ 7.44
		25	$ 7.03
		50	$ 6.86
		100	$ 6.51
		250	$ 5.83
		500	$ 5.49
		1000	$ 4.80
Newark	Each	500	$ 5.70
		1000	$ 4.84

Description

General part information

152250 Series

The 1522 series ribbon cable Wiremount Socket with copper alloy contacts with glass-filled polyester (PBT) insulator. It accepts 28AWG stranded wire. It mates with pack 20 (2 mm x 2 mm) grid pin strips.
