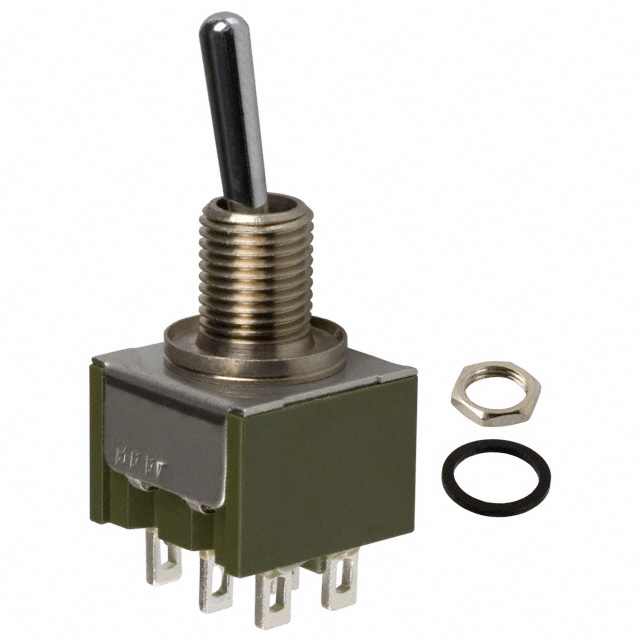

M2022SD3W01

Obsolete

NKK Switches

TOGGLE SWITCH, DPDT, ON-ON, HORIZONTAL, SOLDER LUG TERMINAL, TOGGLE BAT ACTUATOR, PANEL MOUNT,

Search across all available documentation for this part.

Obsolete

NKK Switches

TOGGLE SWITCH, DPDT, ON-ON, HORIZONTAL, SOLDER LUG TERMINAL, TOGGLE BAT ACTUATOR, PANEL MOUNT,

Technical Specifications

Parameters and characteristics for this part

Specification	M2022SD3W01

Actuator Material	Brass, Chrome Plated
Actuator Type	Standard Round
Bushing Thread	1/4-40
Circuit	DPDT
Current Rating (Amps)	4 A, 6 A
Electrical Life	25000 Steps
Features	Epoxy Sealed Terminals
Illumination	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	6.5 mm
Switch Function	On-On
Termination Style	Solder Lug
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

Part	Panel Cutout Dimensions [diameter]	Voltage Rating - AC	Termination Style	Actuator Material	Switch Function	Voltage Rating - DC	Bushing Thread	Current Rating (Amps)	Ingress Protection	Illumination	Electrical Life	Features	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Type	Circuit	Actuator Length [x]
NKK Switches M2022SD3W01	6.5 mm	125 V	Solder Lug	Brass Chrome Plated	On-On	30 V	1/4-40	4 A 6 A	IP67 - Dust Tight Waterproof	Non-Illuminated	25000 Steps	Epoxy Sealed Terminals	-30 ░C	85 °C	Standard Round	DPDT
NKK Switches M2022SD3W03/U	6.5 mm	125 V	PC Pin	Brass Chrome Plated	On-On	30 V	1/4-40	4 A 6 A	IP67 - Dust Tight Waterproof	Non-Illuminated	25000 Steps	Epoxy Sealed Terminals	-30 ░C	85 °C	Standard Round	DPDT
NKK Switches M2022SD3W01-BC	6.5 mm	125 V	Solder Lug	Brass Chrome Plated	On-On	30 V	1/4-40	4 A 6 A	IP67 - Dust Tight Waterproof	Non-Illuminated	25000 Steps	Red Cap	-30 ░C	85 °C	Standard Round with Cap	DPDT	13.5 mm
NKK Switches M2022SD8W01	6.5 mm	125 V	Solder Lug	Brass Chrome Plated	On-On	30 V	M6 x 0.75	4 A 6 A	IP67 - Dust Tight Waterproof	Non-Illuminated	25000 Steps	Epoxy Sealed Terminals	-30 ░C	85 °C	Standard Round	DPDT
NKK Switches M2022SD3W01-BB	6.5 mm	125 V	Solder Lug	Brass Chrome Plated	On-On	30 V	1/4-40	4 A 6 A	IP67 - Dust Tight Waterproof	Non-Illuminated	25000 Steps	White Cap	-30 ░C	85 °C	Standard Round with Cap	DPDT	13.5 mm
NKK Switches M2022SD1W01-BA	6.5 mm	125 V	Solder Lug	Brass Chrome Plated	On-On	30 V	1/4-40	4 A 6 A		Non-Illuminated	25000 Steps	Black Cap	-30 ░C	85 °C	Standard Round with Cap	DPDT	13.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch DPDT Panel Mount
