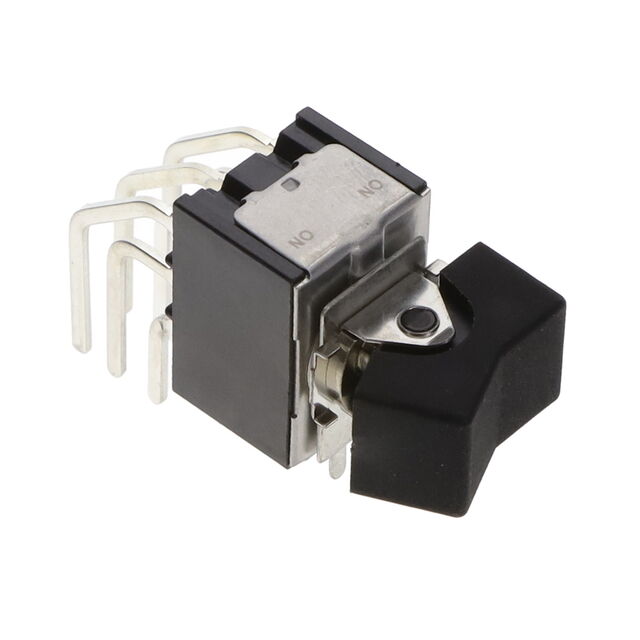

MN32TXW30-DA
ActiveNKK Switches
SWITCH ROCKER MINI PC MOUNT
Deep-Dive with AI
Search across all available documentation for this part.
MN32TXW30-DA
ActiveNKK Switches
SWITCH ROCKER MINI PC MOUNT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MN32TXW30-DA |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Concave (Standard V) |
| Approval Agency | UL |
| Circuit | 3PDT |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 3 A, 4 A |
| Electrical Life | 25000 Steps |
| Mounting Type | Through Hole, Right Angle |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Switch Function | On-On |
| Termination Style | PC Pin |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 13.55 | |
| 10 | $ 12.32 | |||
| 100 | $ 10.47 | |||
| 1000 | $ 8.19 | |||
Description
General part information
MN32TX Series
Rocker Switch 3PDT 4A (AC), 3A (DC) 125 V Through Hole, Right Angle
