3782-12-6

Active

Pomona Electronics

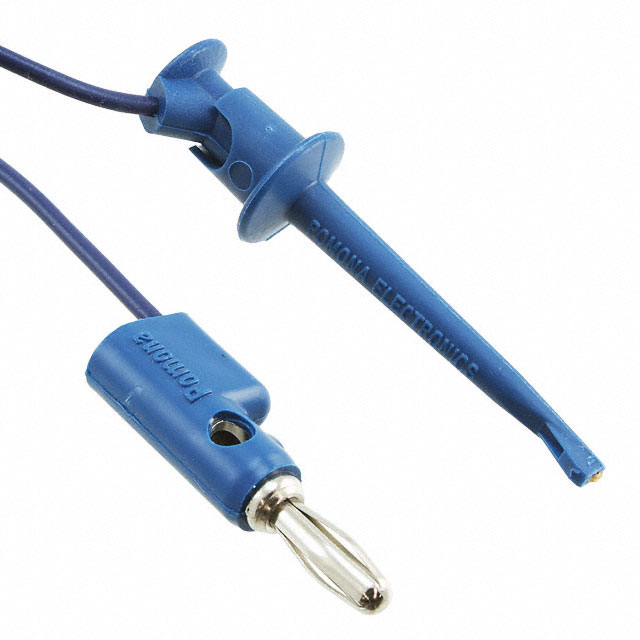

TEST LEAD BANANA TO GRABBER 12"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3782-12-6

Active

Pomona Electronics

TEST LEAD BANANA TO GRABBER 12"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3782-12-6

1st Connector	Single, Stackable, Banana Plug
2nd Connector	Mini Hook
Cable Length	12 in
Cable Length	304.8 mm
Configuration	Banana to Grabber, Hook
Contents	1 Lead, Blue
Current Rating (Amps)	5 A
Material - Insulation	Poly-Vinyl Chloride (PVC)
Stacking Method	Multi-Stacking, Front and Vertical
Type	Patch Cord
Voltage - Rated	300 V
Wire Gauge	20 AWG

3782 Series

Part	2nd Connector	Voltage - Rated	Contents	Stacking Method	Configuration	Cable Length	Cable Length	Material - Insulation	Current Rating (Amps)	Type	Wire Gauge	1st Connector	Contents [custom]
Pomona Electronics 3782-24-4	Mini Hook	300 V	1 Lead Yellow	Front and Vertical Multi-Stacking	Banana to Grabber Hook	24 "	609.6 mm	Poly-Vinyl Chloride (PVC)	5 A	Patch Cord	20 AWG	Banana Plug Single Stackable
Pomona Electronics 3782-36-0	Mini Hook	300 V	1 Lead Black	Front and Vertical Multi-Stacking	Banana to Grabber Hook	36 in	914.4 mm	Poly-Vinyl Chloride (PVC)	5 A	Patch Cord	20 AWG	Banana Plug Single Stackable
Pomona Electronics 3782-36-2#	Mini Hook	300 V	1 Lead Black	Front and Vertical Multi-Stacking	Banana to Grabber Hook	36 in	914.4 mm	Poly-Vinyl Chloride (PVC)	5 A	Patch Cord	20 AWG	Banana Plug Single Stackable
Pomona Electronics 3782-48-2	Mini Hook	300 V	Red	Front and Vertical Multi-Stacking	Banana to Grabber Hook	48 in	1219.2 mm	Poly-Vinyl Chloride (PVC)	5 A	Patch Cord	20 AWG	Banana Plug Single Stackable	1
Pomona Electronics 3782-12-6	Mini Hook	300 V	1 Lead Blue	Front and Vertical Multi-Stacking	Banana to Grabber Hook	12 in	304.8 mm	Poly-Vinyl Chloride (PVC)	5 A	Patch Cord	20 AWG	Banana Plug Single Stackable
Pomona Electronics 3782-60-5	Mini Hook	300 V		Front and Vertical Multi-Stacking	Banana to Grabber Hook	5 ft	1524 mm	Poly-Vinyl Chloride (PVC)	5 A	Patch Cord	20 AWG	Banana Plug Single Stackable
Pomona Electronics 3782-24-5	Mini Hook	300 V		Front and Vertical Multi-Stacking	Banana to Grabber Hook	24 "	609.6 mm	Poly-Vinyl Chloride (PVC)	5 A	Patch Cord	20 AWG	Banana Plug Single Stackable
Pomona Electronics 3782-24-6	Mini Hook	300 V	1 Lead Blue	Front and Vertical Multi-Stacking	Banana to Grabber Hook	24 "	609.6 mm	Poly-Vinyl Chloride (PVC)	5 A	Patch Cord	20 AWG	Banana Plug Single Stackable
Pomona Electronics 3782-36-5	Mini Hook	300 V		Front and Vertical Multi-Stacking	Banana to Grabber Hook	36 in	914.4 mm	Poly-Vinyl Chloride (PVC)	5 A	Patch Cord	20 AWG	Banana Plug Single Stackable
Pomona Electronics 3782-36-2	Mini Hook	300 V	Red	Front and Vertical Multi-Stacking	Banana to Grabber Hook	36 in	914.4 mm	Poly-Vinyl Chloride (PVC)	5 A	Patch Cord	20 AWG	Banana Plug Single Stackable	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 9.34

Description

General part information

3782 Series

12.0" (304.80mm) Banana Plug, Single, Stackable To Mini Hook Patch Cord 300VDC

Documents

Technical documentation and resources
