N25Q256A13EF840F

Obsolete

Micron Technology Inc.

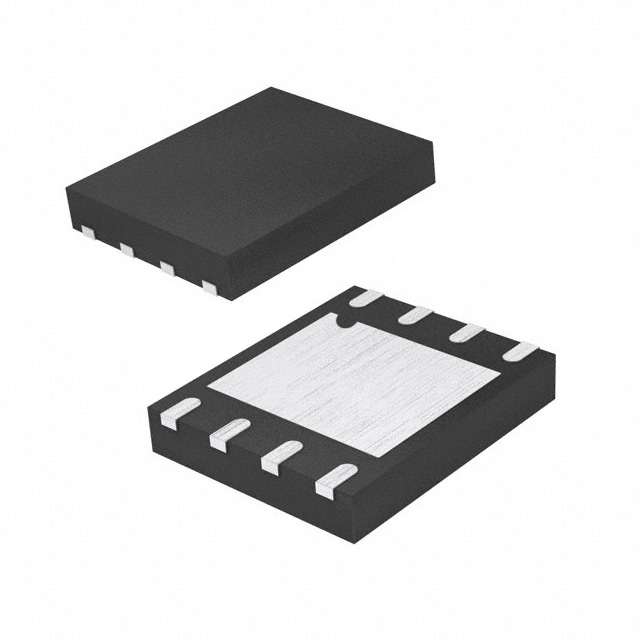

IC FLASH 256MBIT SPI 8VDFPN

Deep-Dive with AI

Search across all available documentation for this part.

N25Q256A13EF840F

Obsolete

Micron Technology Inc.

IC FLASH 256MBIT SPI 8VDFPN

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

N25Q256A13 Series

FLASH - NOR Memory IC 256Mbit SPI 108 MHz 8-VDFPN (MLP8) (8x6)

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	N25Q256A13EF840F	N25Q256A13 Series

Clock Frequency	108 MHz	108 MHz
Memory Format	FLASH	FLASH
Memory Interface	SPI	SPI
Memory Organization	64 M	64 M
Memory Size	256 Gbit	256 Gbit
Memory Type	Non-Volatile	Non-Volatile
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	85 - 125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	8-VDFN Exposed Pad	24-TBGA, 16-SOIC, 8-VDFN Exposed Pad
Package / Case	-	0.295 in
Package / Case	-	7.5 mm
Supplier Device Package	8-VDFPN (MLP8)	24-T-PBGA (6x8), 16-SOP2, 8-VDFPN (MLP8)
Supplier Device Package [x]	8	8
Supplier Device Package [y]	6	6
Technology	FLASH - NOR	FLASH - NOR
Voltage - Supply [Max]	3.6 V	3.6 V
Voltage - Supply [Min]	2.7 V	2.7 V
Write Cycle Time - Word, Page [custom]	5 ms	5 ms
Write Cycle Time - Word, Page [custom]	8 ms	8 ms

N25Q256A13 Series

IC FLASH 256MBIT SPI 24TPBGA

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Memory Format	Clock Frequency	Technology	Memory Interface	Memory Size	Memory Type	Mounting Type	Write Cycle Time - Word, Page [custom]	Write Cycle Time - Word, Page [custom]	Memory Organization	Package / Case [x]	Package / Case [y]	Supplier Device Package [x]	Supplier Device Package [y]
Micron Technology Inc. N25Q256A13E1241F TR	2.7 V	3.6 V	24-T-PBGA (6x8)	85 °C	-40 °C	24-TBGA	FLASH	108 MHz	FLASH - NOR	SPI	256 Gbit	Non-Volatile	Surface Mount	5 ms	8 ms	64 M
Micron Technology Inc. N25Q256A13ESFH0F TR	2.7 V	3.6 V	16-SOP2	85 °C	-40 °C	16-SOIC	FLASH	108 MHz	FLASH - NOR	SPI	256 Gbit	Non-Volatile	Surface Mount	5 ms	8 ms	64 M	0.295 in	7.5 mm
Micron Technology Inc. N25Q256A13ESF40F TR	2.7 V	3.6 V	16-SOP2	85 °C	-40 °C	16-SOIC	FLASH	108 MHz	FLASH - NOR	SPI	256 Gbit	Non-Volatile	Surface Mount	5 ms	8 ms	64 M	0.295 in	7.5 mm
Micron Technology Inc. N25Q256A13ESF40G	2.7 V	3.6 V	16-SOP2	85 °C	-40 °C	16-SOIC	FLASH	108 MHz	FLASH - NOR	SPI	256 Gbit	Non-Volatile	Surface Mount	5 ms	8 ms	64 M	0.295 in	7.5 mm
Micron Technology Inc. N25Q256A13ESFA0F TR	2.7 V	3.6 V	16-SOP2	125 °C	-40 °C	16-SOIC	FLASH	108 MHz	FLASH - NOR	SPI	256 Gbit	Non-Volatile	Surface Mount	5 ms	8 ms	64 M	0.295 in	7.5 mm
Micron Technology Inc. N25Q256A13E12A0F TR	2.7 V	3.6 V	24-T-PBGA (6x8)	125 °C	-40 °C	24-TBGA	FLASH	108 MHz	FLASH - NOR	SPI	256 Gbit	Non-Volatile	Surface Mount	5 ms	8 ms	64 M
Micron Technology Inc. N25Q256A13EF8A0F TR	2.7 V	3.6 V	8-VDFPN (MLP8)	125 °C	-40 °C	8-VDFN Exposed Pad	FLASH	108 MHz	FLASH - NOR	SPI	256 Gbit	Non-Volatile	Surface Mount	5 ms	8 ms	64 M			8	6
Micron Technology Inc. N25Q256A13E1240F TR	2.7 V	3.6 V	24-T-PBGA (6x8)	85 °C	-40 °C	24-TBGA	FLASH	108 MHz	FLASH - NOR	SPI	256 Gbit	Non-Volatile	Surface Mount	5 ms	8 ms	64 M
Micron Technology Inc. N25Q256A13EF840F	2.7 V	3.6 V	8-VDFPN (MLP8)	85 °C	-40 °C	8-VDFN Exposed Pad	FLASH	108 MHz	FLASH - NOR	SPI	256 Gbit	Non-Volatile	Surface Mount	5 ms	8 ms	64 M			8	6
