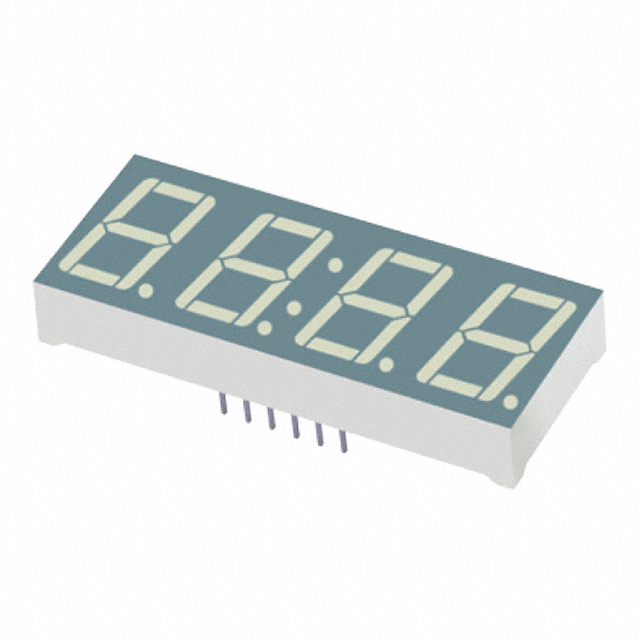

XDUR14C4-1A

Active

SunLED

DISP 7SEG 0.56" QUAD RED 12DIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

XDUR14C4-1A

Active

SunLED

DISP 7SEG 0.56" QUAD RED 12DIP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	500	$ 3.64

Description

General part information

XDUR14 Series

Display Modules - LED Character and Numeric Red 7-Segment 4 Character Common Cathode 1.9V 10mA 0.748" H x 1.980" W x 0.319" D (19.00mm x 50.30mm x 8.10mm) 12-DIP (0.600", 15.24mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	XDUR14C4-1A	XDUR14 Series

Color	Red	Red
Common Pin	Common Cathode	Common Cathode, Common Anode
Current - Test	10 mA	10 mA
Digit/Alpha Size	0.56 in	0.56 in
Digit/Alpha Size	14.22 mm	14.22 mm
Display Type	7-Segment	7-Segment
Millicandela Rating	2 mcd	2 - 7.99 mcd
Number of Characters	4	2 - 4
Number of Characters	-	1
Package / Case	15.24 mm	0.6 - 15.24 mm
Package / Case	0.6 in	0.6 in
Package / Case	12-DIP	12-DIP, 10-DIP, 18-DIP
Package / Case	-	15.24 mm
Power Dissipation (Max) [Max]	75 mw	75 mw
Size / Dimension [x]	0.748 in	0.748 - 0.75 in
Size / Dimension [x]	19 mm	19 - 19.05 mm
Size / Dimension [y]	50.3 mm	12.7 - 50.3 mm
Size / Dimension [y]	1.98 in	0.5 - 1.98 in
Size / Dimension [z]	0.319 in	0.315 - 0.325 in
Size / Dimension [z]	8.1 mm	8 - 8.25 mm
Voltage - Forward (Vf) (Typ)	1.9 V	1.9 V
Wavelength - Peak	627 nm	627 nm

XDUR14 Series

DISP 7SEG 0.56" QUAD RED 12DIP

Part	Color	Wavelength - Peak	Number of Characters	Current - Test	Voltage - Forward (Vf) (Typ)	Display Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Package / Case	Package / Case	Package / Case	Power Dissipation (Max) [Max]	Common Pin	Digit/Alpha Size	Digit/Alpha Size	Millicandela Rating	Number of Characters [custom]	Package / Case
SunLED XDUR14C4-A	Red	627 nm	4	10 mA	1.9 V	7-Segment	50.3 mm	0.748 in	1.98 in	0.319 in	8.1 mm	19 mm	15.24 mm	0.6 in	12-DIP	75 mw	Common Cathode	0.56 in	14.22 mm	2 mcd
SunLED XDUR14C4-1A	Red	627 nm	4	10 mA	1.9 V	7-Segment	50.3 mm	0.748 in	1.98 in	0.319 in	8.1 mm	19 mm	15.24 mm	0.6 in	12-DIP	75 mw	Common Cathode	0.56 in	14.22 mm	2 mcd
SunLED XDUR14A	Red	627 nm		10 mA	1.9 V	7-Segment	12.7 mm	0.75 in	0.5 in	0.315 "	8 mm	19.05 mm	15.24 mm	0.6 in	10-DIP	75 mw	Common Anode	0.56 in	14.22 mm		1
SunLED XDUR14A4-1A	Red	627 nm	4	10 mA	1.9 V	7-Segment	50.3 mm	0.748 in	1.98 in	0.319 in	8.1 mm	19 mm	15.24 mm	0.6 in	12-DIP	75 mw	Common Anode	0.56 in	14.22 mm	2 mcd
SunLED XDUR14A2	Red	627 nm	2	10 mA	1.9 V	7-Segment	25 mm	0.75 in	0.984 in	0.325 "	8.25 mm	19.05 mm	0.6 in		18-DIP	75 mw	Common Anode	0.56 in	14.22 mm	7.99 mcd		15.24 mm
