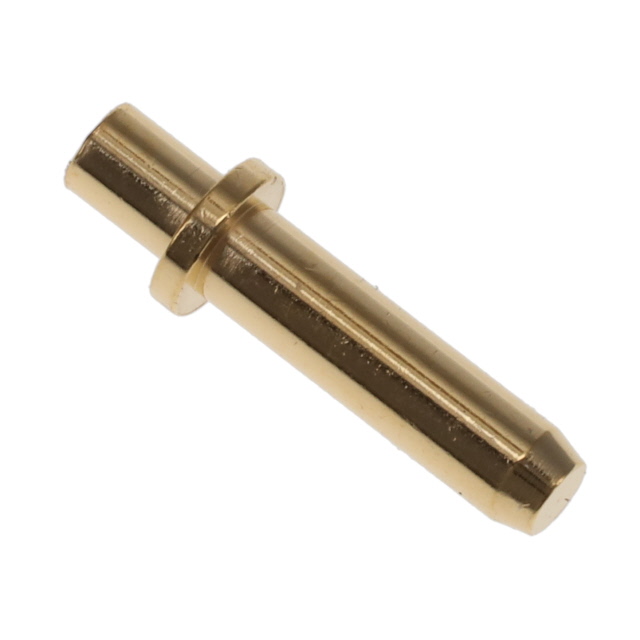

4914-0-00-15-00-00-03-0
ActiveMill-Max Manufacturing Corp.
SOLDER MOUNT PCB PIN
Deep-Dive with AI
Search across all available documentation for this part.
4914-0-00-15-00-00-03-0
ActiveMill-Max Manufacturing Corp.
SOLDER MOUNT PCB PIN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 4914-0-00-15-00-00-03-0 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Brass Alloy |
| Flange Diameter | 3.18 mm |
| Flange Diameter [diameter] | 0.125 in |
| Insulation | Non-Insulated |
| Length - Above Flange [x] | 7.62 mm |
| Length - Above Flange [x] | 0.3 " |
| Length - Below Flange [x] | 0.1 in |
| Length - Below Flange [x] | 2.54 mm |
| Length - Overall [x] | 0.425 in |
| Length - Overall [x] | 10.8 mm |
| Mounting Hole Diameter [diameter] | 0.084 in |
| Mounting Hole Diameter [diameter] | 2.13 mm |
| Mounting Type | Through Hole |
| Pin Size - Above Flange [diameter] | 2.03 mm |
| Pin Size - Above Flange [diameter] | 0.08 in |
| Pin Size - Below Flange [diameter] | 1.91 mm |
| Pin Size - Below Flange [diameter] | 0.075 in |
| Terminal Style | Single End |
| Terminal Type | PC Pin |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.01 | |
| 10 | $ 0.77 | |||
| 25 | $ 0.69 | |||
| 50 | $ 0.64 | |||
| 100 | $ 0.59 | |||
| 250 | $ 0.53 | |||
| 500 | $ 0.49 | |||
| 1000 | $ 0.46 | |||
| 2500 | $ 0.42 | |||
Description
General part information
4914-0 Series
PC Pin Terminal Connector Through Hole Gold 0.080" (2.03mm) Dia
