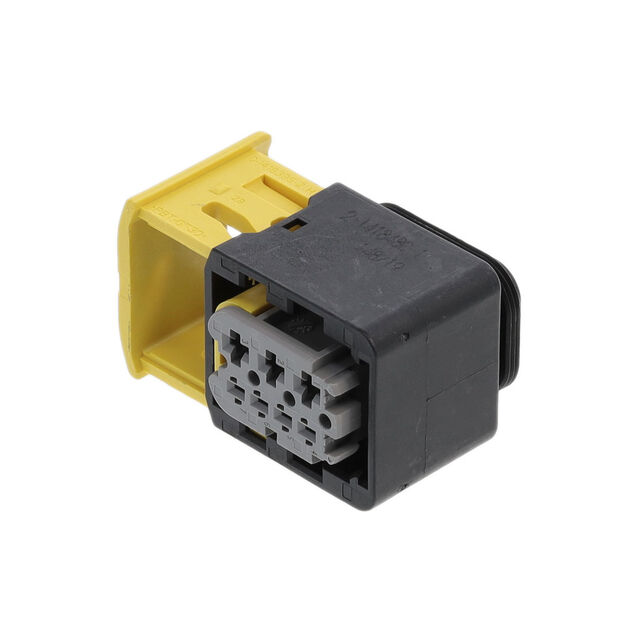

2-1418480-1
ActiveTE Connectivity Raychem Cable Protection
CONN RCPT HSG 7POS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2-1418480-1
ActiveTE Connectivity Raychem Cable Protection
CONN RCPT HSG 7POS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2-1418480-1 |
|---|---|
| Color | Gray |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Slide-On |
| Features | Sealed |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 7 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 140 °C |
| Operating Temperature [Min] | -40 °C |
| Row Spacing [Max] | 0.236 in |
| Row Spacing [Max] | 6 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.25 | |
| 10 | $ 1.96 | |||
| 25 | $ 1.88 | |||
| 50 | $ 1.83 | |||
| 100 | $ 1.75 | |||
| 380 | $ 1.58 | |||
| 760 | $ 1.42 | |||
| 1140 | $ 1.25 | |||
| 2660 | $ 1.17 | |||
Description
General part information
1418480 Series
7 Rectangular Connectors - Housings Receptacle Gray
