Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 164.65 | |
| 10 | $ 151.47 | |||
| 50 | $ 139.95 | |||
General part information

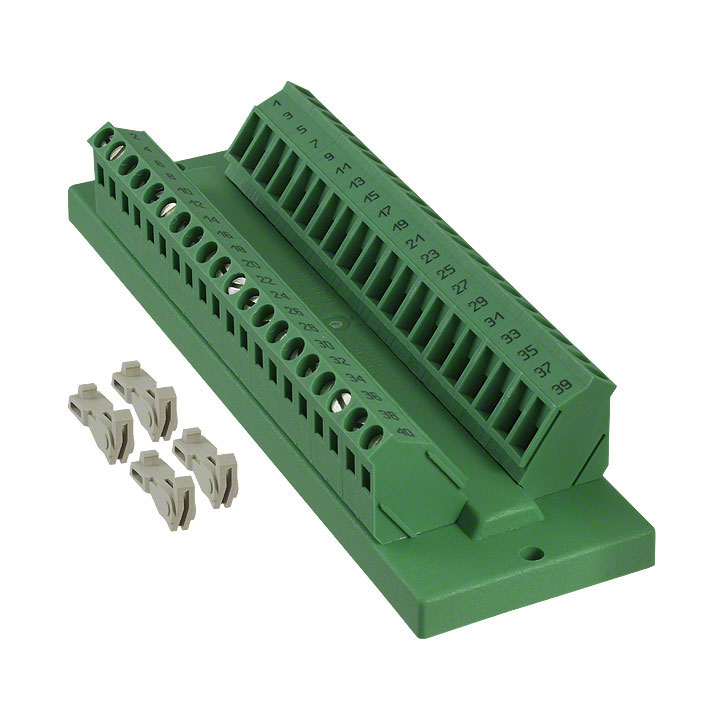

Adapter Terminal Blocks, Screw Connection, 40 Pos, 2 Rows To Rectangular Connector, Male Pins, 40 Pos, 2 Rows
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | 2280271 | DFLK Series |
|---|---|---|
| Convert From (Adapter End) | 2 Rows, 40 Pos | 2 - 40 Rows |
| Convert From (Adapter End) | Screw Connection, Terminal Blocks | Screw Connection, Terminal Blocks, Terminal Blocks, Screw Connection, 50 Pos, 2 Rows |
| Convert To (Adapter End) | Male Pins, Rectangular Connector, 2 Rows, 40 Pos | Male Pins, Rectangular Connector, 2 Rows, 40 Pos |
| Convert To (Adapter End) | - | 2 - 50 Rows |
| Mounting Type | Feed Through, Panel Mount | Feed Through, Panel Mount |
| Wire Gauge [Max] | 24 AWG | 24 AWG |
| Wire Gauge [Min] | 12 AWG | 12 AWG |
INTERFACE MODULE 40POS PNL MNT
| Part | Convert From (Adapter End) | Convert From (Adapter End) | Mounting Type | Wire Gauge [Min] | Wire Gauge [Max] | Convert To (Adapter End) | Convert To (Adapter End) |
|---|---|---|---|---|---|---|---|
Phoenix Contact 2280271 | 2 Rows, 40 Pos | Screw Connection, Terminal Blocks | Feed Through, Panel Mount | 12 AWG | 24 AWG | 2 Rows, 40 Pos, Male Pins, Rectangular Connector | |
Phoenix Contact 2280239 | 2 Rows, 16 | Screw Connection, Terminal Blocks | Feed Through, Panel Mount | 12 AWG | 24 AWG | Male Pins, Rectangular Connector | 2 Rows, 16 Pos |
Phoenix Contact 2280255 | 2 Rows, 26 Pos | Screw Connection, Terminal Blocks | Feed Through, Panel Mount | 12 AWG | 24 AWG | Male Pins, Rectangular Connector | 2 Rows, 26 Pos |
Phoenix Contact 2280284 | Terminal Blocks, Screw Connection, 50 Pos, 2 Rows | Feed Through, Panel Mount | 12 AWG | 24 AWG | Male Pins, Rectangular Connector | 2 Rows, 50 Pos | |
Phoenix Contact 2280268 | 2 Rows, 34 Pos | Screw Connection, Terminal Blocks | Feed Through, Panel Mount | 12 AWG | 24 AWG | Male Pins, Rectangular Connector | 2 Rows, 34 Pos |
